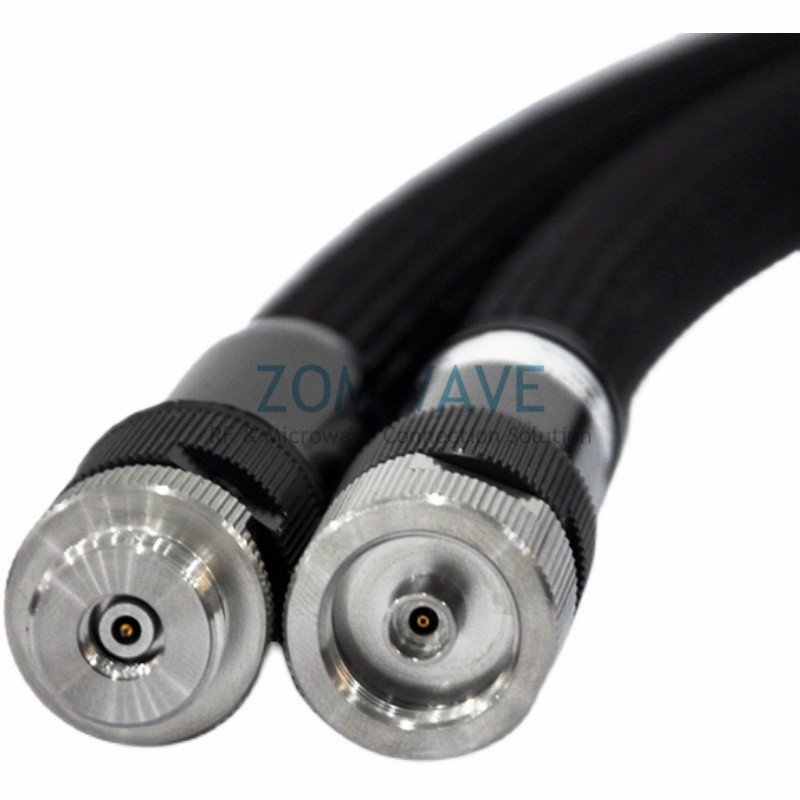

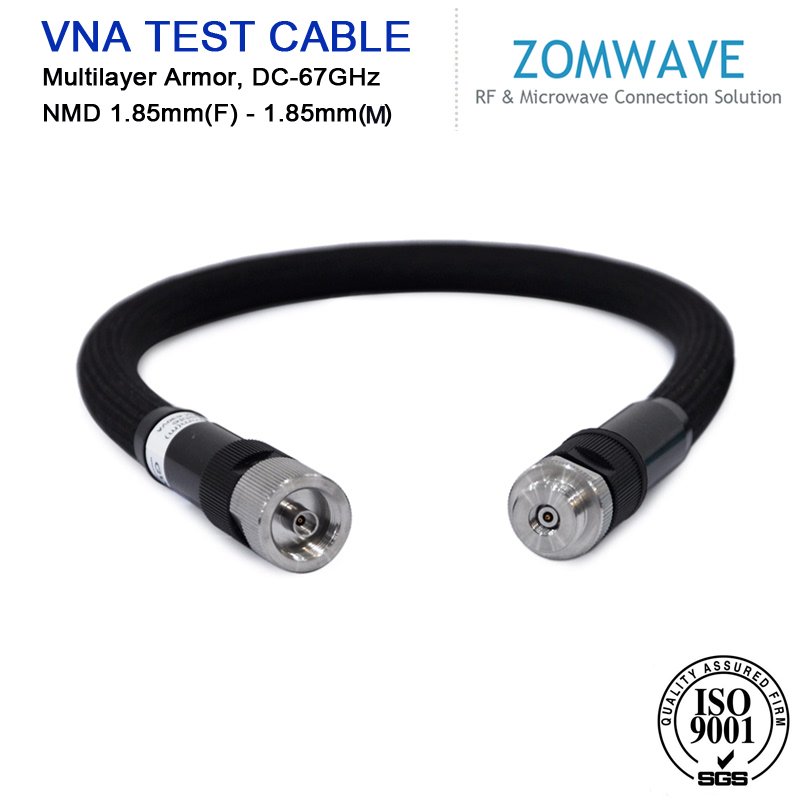

NMD1.85mm Female to NMD1.85mm Male VNA Test Cable With Multilayer Armor,DC-67GHz

NMD1.85mm Female to NMD1.85mm Male VNA Test Cable With Multilayer Armor,DC-67GHz

$1,666.67

VNA test cable is an instrument that measures the network parameters of electrical networks. Today, network analyzers commonly measure s–parameters because reflection and transmission of electrical networks are easy to measure at high frequencies, but there are other network parameter sets such as y-parameters, z-parameters, and h-parameters. Network analyzers are often used to characterize two-port networks such as amplifiers and filters, but they can be used on networks with an arbitrary number of ports.

Quantity	Price	Discount
1-9	$1,666.67	0%
10-49	$1,600.00	4%
50-99	$1,533.34	8%
100+	$1,400.00	16%

200+ Call US

Get a lower discount price

SKU: P/N:VN67-NVCJNVCP-00.63M

Key specifications

Configuration
Connector Series 1	NMD1.85mm
Connector Gender 1	Female
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Stainless Steel, Passivated
Connector Series 2	NMD1.85mm
Connector Gender 2	Male
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Stainless Steel, Passivated
Cable Length	24.8inch/630mm
Electric Specifications
Impedance	50 ohm
Frequency Range(From DC)	67GHz
VSWR	≤1.50:1 (DC 0~67GHz)
Insertion Loss	<5.8dB
Mechanical Phase	<±10°
Amplitude Stability	<±0.2dB
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 2000 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Armor Specification
Armor Type	VNA Multilayer Armor
Jacket Diameter(mm)	14.5
Min. Bending Radius(mm)	50
Compression Resistance (N)	230N/25mm

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
