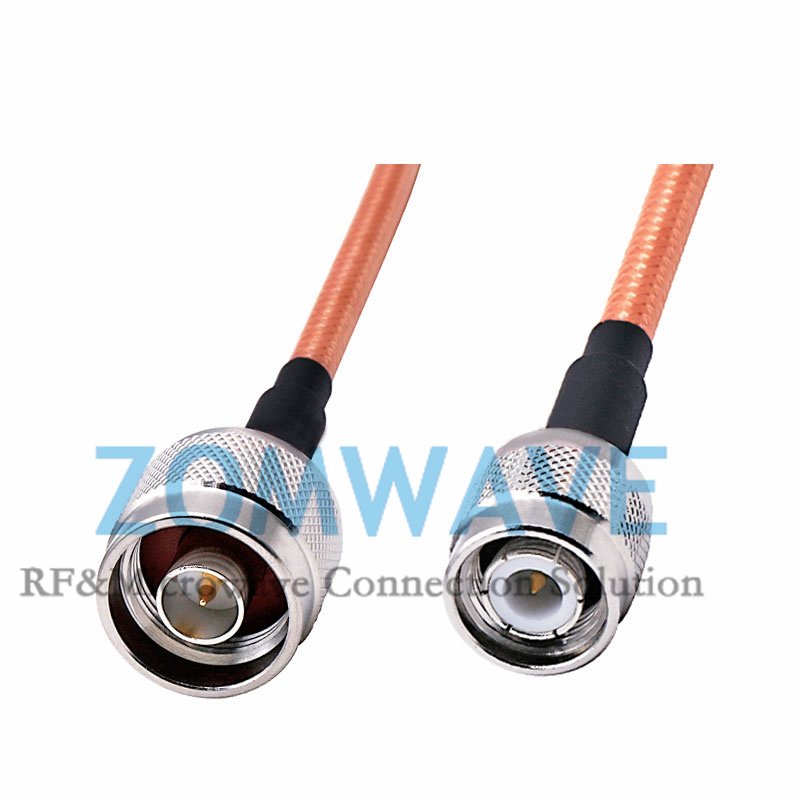

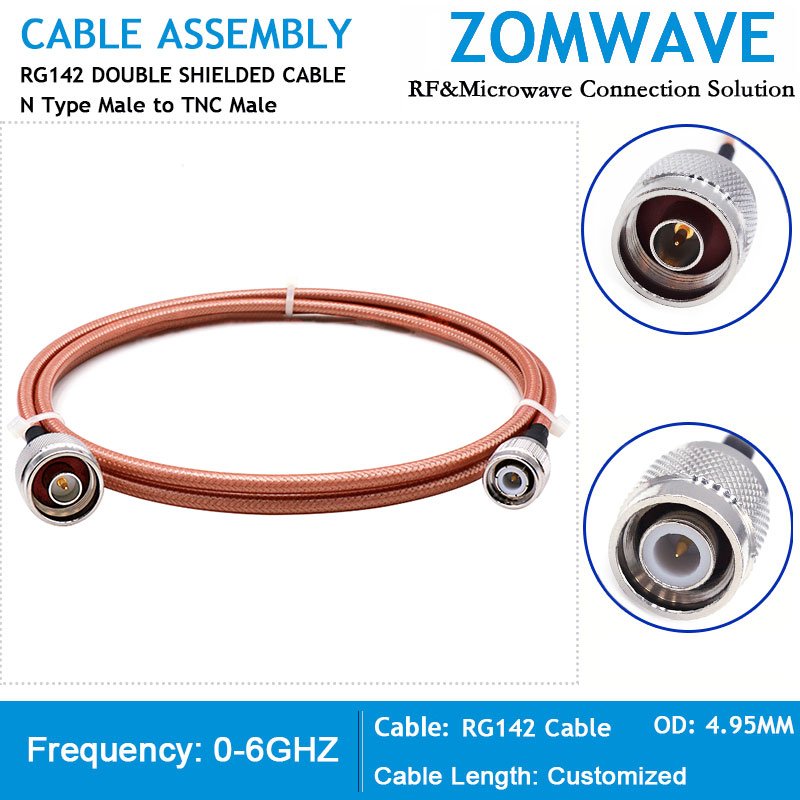

N Type Male to TNC Male, RG142 Cable, 6GHz
N Type Male to TNC Male, RG142 Cable, 6GHz
Click to enlarge
N Type Male to TNC Male, RG142 Cable, 6GHz
N Type Male to TNC Male, RG142 Cable, 6GHz

N Type Male to TNC Male, RG142 Cable, 6GHz

Price range: $11.80 through $19.17

5 days ship out, price can be negotiated. ZOMWAVE N Type Male to TNC Male, RG142 Cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The N Type Male to TNC Male, RG142 Cable assembly is composed of RG142 Double Shielded Cable. The RG142 coaxial cable adopts a solid center conductor, PTFE (polytetrafluoroethylene) insulation, silver-plated copper braided outer shield, and silver-plated Copper spiral inner shield. This multi-layer shielding structure can not only provide excellent insertion loss and shielding performance, but also improve the flexibility of the cable. ZOMWAVE is the place to buy high-quality N Type Male to TNC Male, RG142 Cable assemblies, which can be shipped quickly worldwide. Variations of type n to tnc cable assemblies can also be manufactured and will be shipped with high performance.

Quantity Price Discount
1-9 $11.80 0%
10-49 $11.33 4%
50-99 $10.86 8%
100+ $9.91 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1N Type
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Brass, Nickel Plated
Connector Series 2TNC
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable Type RG142 Double Shielded
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.25:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP (Brown)
Jacket Diameter(mm)4.95±0.15
Min. Bending Radius(mm)30
Shielding Effect(dB)>90
Weight(kg/km)66 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.32
10.46
1.80.63
2.40.72
30.82
51.07
61.18

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
