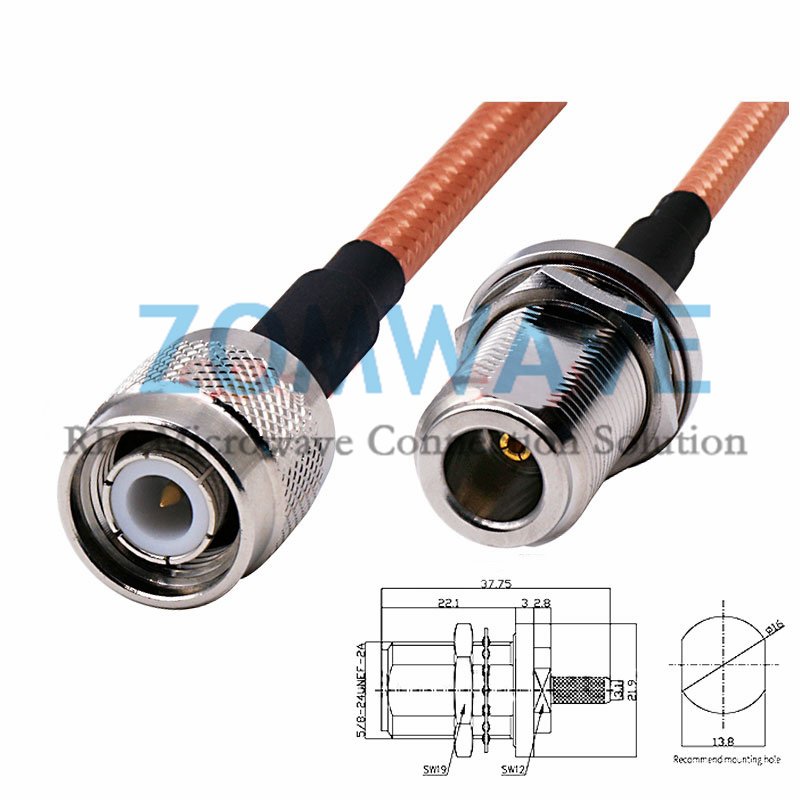

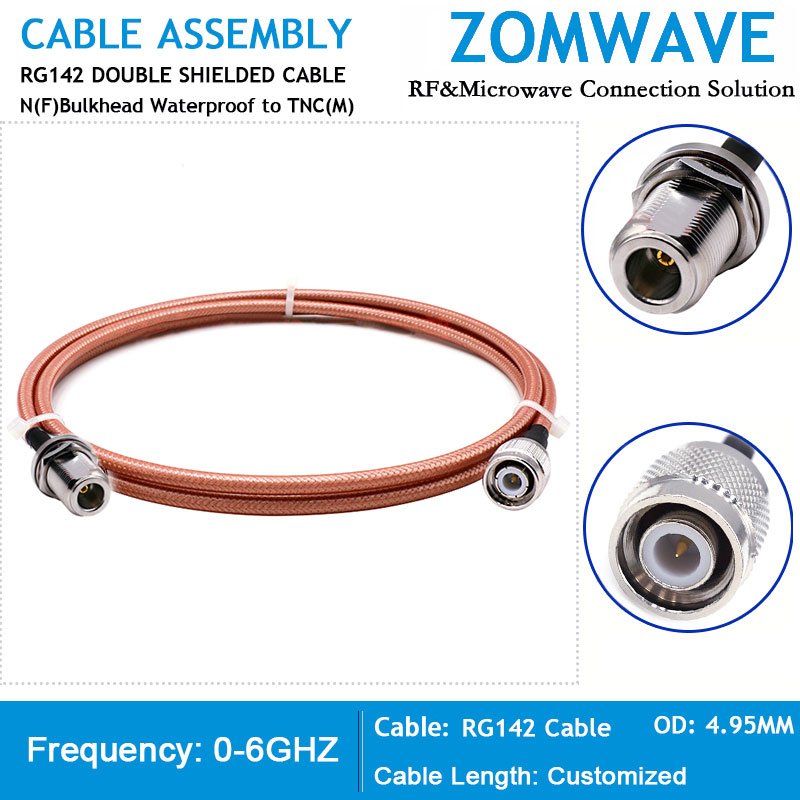

TNC to N type cable assemblies ship in 5 days with negotiable pricing and are offered by ZOMWAVE as the N Type Female Bulkhead Waterproof to TNC Male, RG142 Cable assemblies, part of a comprehensive coaxial cable range for RF, microwave and millimeter wave interconnect solutions. Built with RG142 double shielded cable, a solid center conductor, PTFE insulation, silver plated copper braided outer shield and silver plated copper spiral inner shield, this multi layer design delivers low insertion loss, superior EMI suppression and excellent flexibility. ZOMWAVE supplies high quality tnc to n cable and related assemblies, manufactured to order with fast global lead times, and offers custom variations of type-N to TNC to meet specific frequency, durability and space requirements across automotive, broadband, Industry 4.0, instrumentation, medical, military, quantum computing, smart agriculture and 5G wireless applications.
Key specifications
| Configuration | |
| Connector Series 1 | N Type |
| Connector Gender 1 | Female |
| Connector Angle 1 | Straight |
| Connector Mount Method1 | Bulkhead Waterproof |
| Body Materials and Plating 1 | Brass, Nickel Plated |
| Connector Series 2 | TNC |
| Connector Gender 2 | Male |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Body Materials and Plating 2 | Brass, Nickel Plated |
| Cable Type | RG142 Double Shielded |
| Electric Specifications | |
| Impedance | 50ohm |
| Frequency Range(From DC) | 6GHz |
| VSWR | ≤1.25:1 (DC 0~6GHz) |
| Insertion Loss | Depends on cable length |
| Voltage Rating | 335 V(rms) |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥500 Mohm |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 30 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -40°C ~ +85°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Cable Specification | |
| Center Conductor | Silver plated copper |
| Dielectric | Low Density PTFE |
| Jacket | FEP (Brown) |
| Jacket Diameter(mm) | 4.95±0.15 |
| Min. Bending Radius(mm) | 30 |
| Shielding Effect(dB) | >90 |
| Weight(kg/km) | 66 (Reference) |
| Coaxial Cable Attenuation @ 20℃ and Sea Level, Power | |
| Frequency (GHz) | Attenuation(dB/m) |
| 0.5 | 0.32 |
| 1 | 0.46 |
| 1.8 | 0.63 |
| 2.4 | 0.72 |
| 3 | 0.82 |
| 5 | 1.07 |
| 6 | 1.18 |
