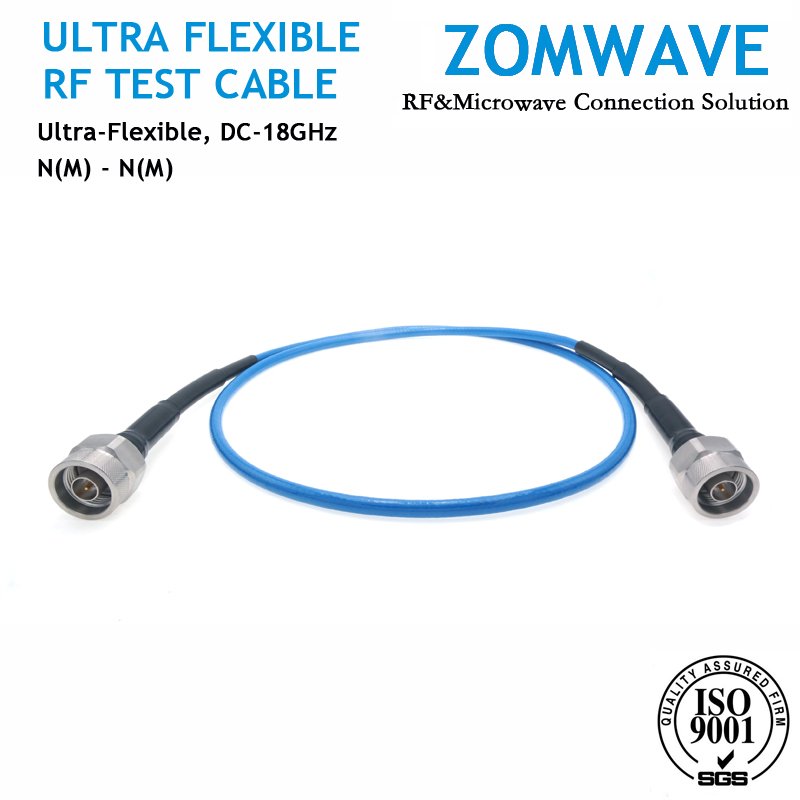

N Male to N Male Ultra Flexible RF Test Cable, Low Loss Phase-Stable, 18GHZ

$67.72 – $104.29

ZOMWAVE Ultra Flexible Low Loss Phase-Stable Test Cables are designed for both flexible and hi-flex application. Their superior flexibility is beneficial to repeated testing applications, and with tight routing and installation requirements. ZOMWAVE N Type Male to N Type Male Ultra Flexible Low Loss Phase-Stable Test Cables are use a ultra-flex wire strands, and extremely bendable polyurethane jacket that enable very small bend radia and deliver a 10 Million flex cycle life, with no wire compression, corkscrewing, or distortion. ZOMWAVE N Type Male to N Type Male Ultra Flexible Low Loss Phase-Stable Test Cables are using a Stainless Steel with passivated connectors that are durable for the applicaton.

Quantity Price Discount
1-9 $67.72 0%
10-49 $65.01 4%
50-99 $62.30 8%
100+ $56.88 16%

   200+                                     Call US

   Get a lower discount price

24in
36in
48in
60in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

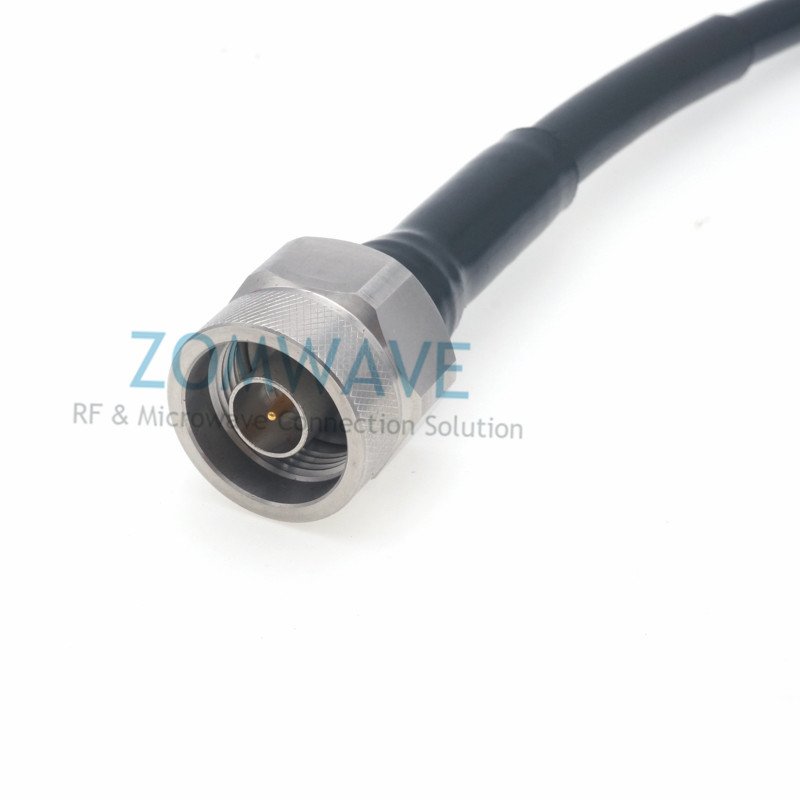

Configuration
Connector Series 1Type N
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 2Type N
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypeFlexPro

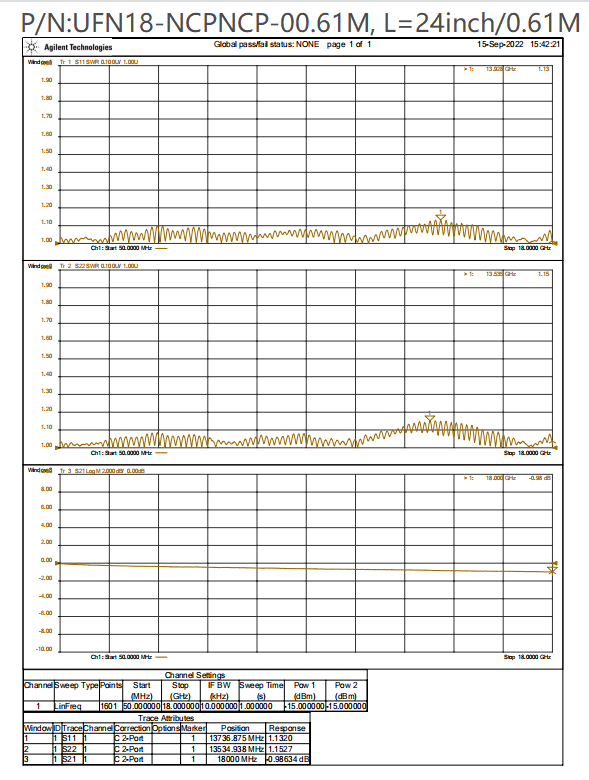

Electric Specifications
Impedance50 ohm
Frequency Range(From DC)18GHz
VSWR≤1.25:1 (DC 0~18GHz)
Insertion LossDepends on cable length
Mechanical Phase<±5°@18GHz
Amplitude Stability<±0.05dB@18GHz
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketPolyurethane
Jacket Diameter(mm)5.20±0.15
Min. Bending Radius(mm)26
Shielding Effect(dB)>100 (0~1GHz)
Weight(kg/km)65 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.27
10.38
20.56
30.70
50.93
61.03
101.39
181.98
202.11
26.52.5

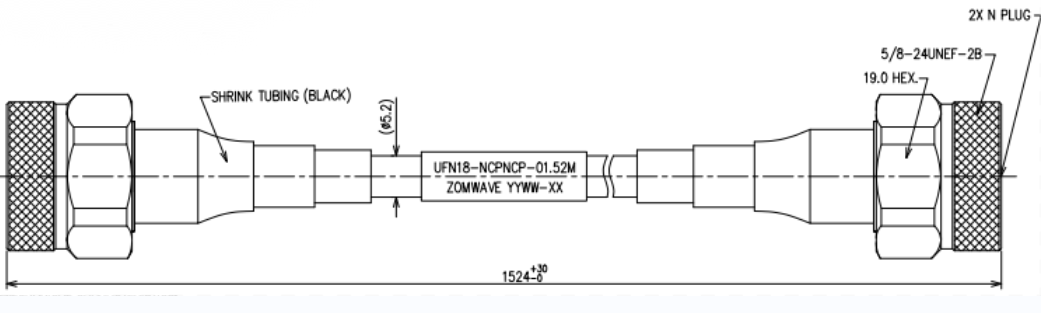

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
