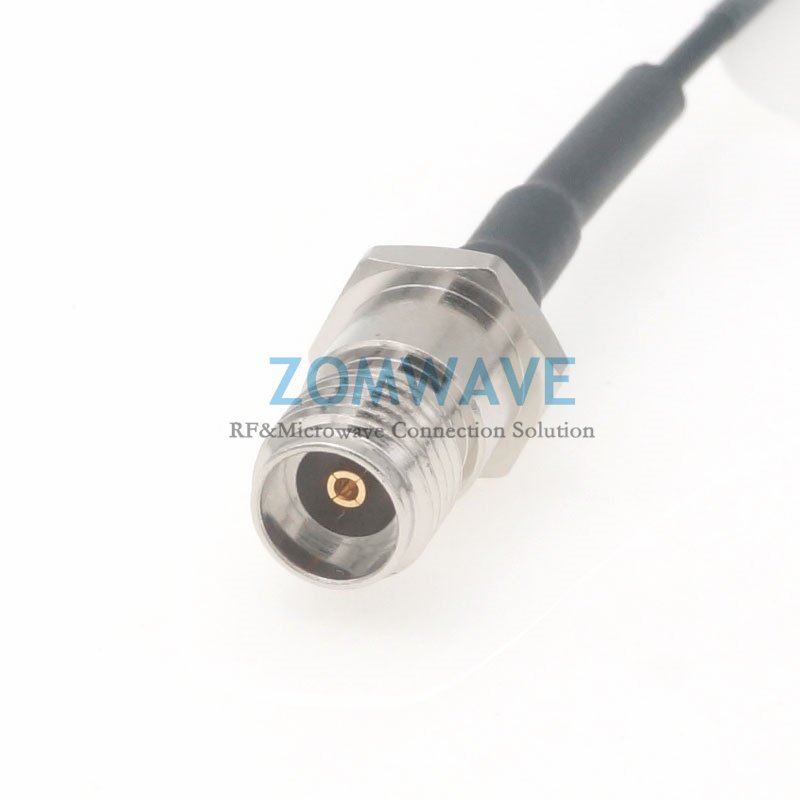

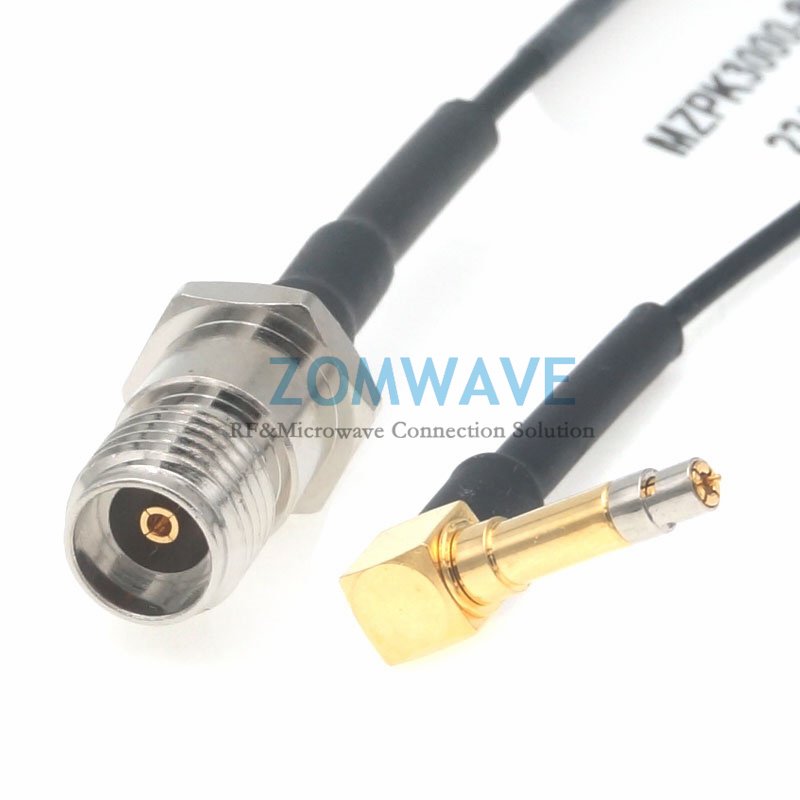

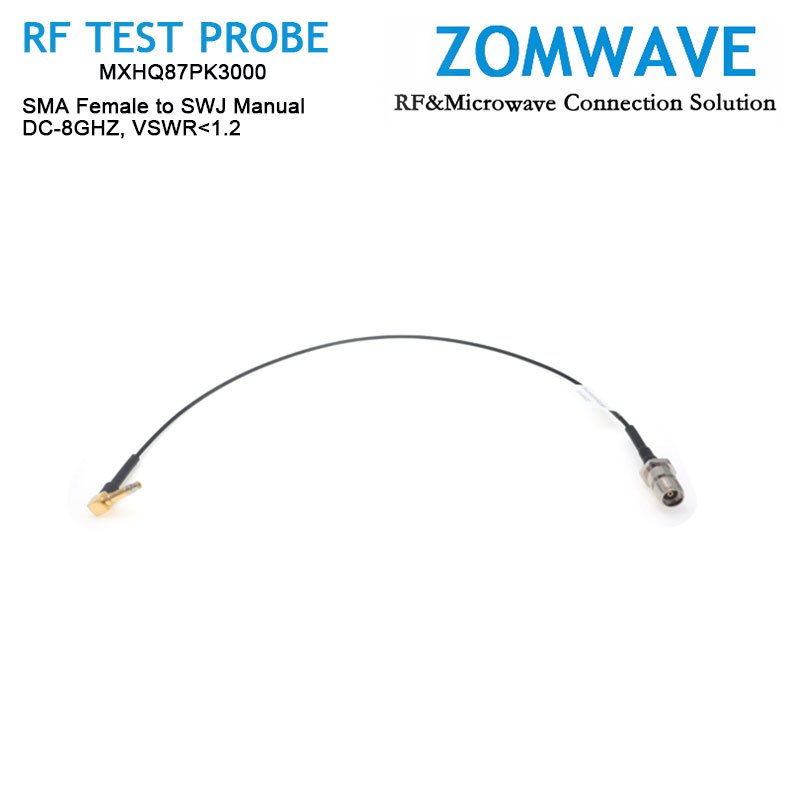

Key Specifications
| Configuration | |
| Adapter Series 1 | SMA |
| Adapter Gender 1 | Female |
| Adapter Angle 1 | Straight |
| Adapter Mount Method1 | None |
| Body Materials and Plating 1 | Brass Nickel Plated |
| Adapter Series 2 | SWJ |
| Adapter Gender 2 | Plug |
| Adapter Angle 2 | Straight |
| Adapter Mount Method 2 | None |
| Body Materials and Plating 2 | Brass Gold Plated |
| Electric Specifications | |
| Impedance | 50ohm |
| Frequency Range(From DC) | 8GHz |
| VSWR | ≤1.1:1 (DC 0~3GHz) ≤1.15:1 (DC 3~6GHz) ≤1.21 (DC 6~8GHz) |
| Insertion Loss | ≤1.2dB(dc 0~3GHZ) ≤1.7dB(dc 3~6GHZ) ≤2.2dB(dc 6~8GHZ) |
| Voltage Rating | 335 V(rms) |
| Dielectric Withstanding Voltage | >500 V |
| Insulation Resistance | ≥500 Mohm |
| Mechanical Characteristics | |
| Mating Cycles | SMA ≥ 500 cycles |
| Probe Durability | SWJ ≥ 300 cycles |
| Mating Torque | 5~7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -45°C ~ +85°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft |

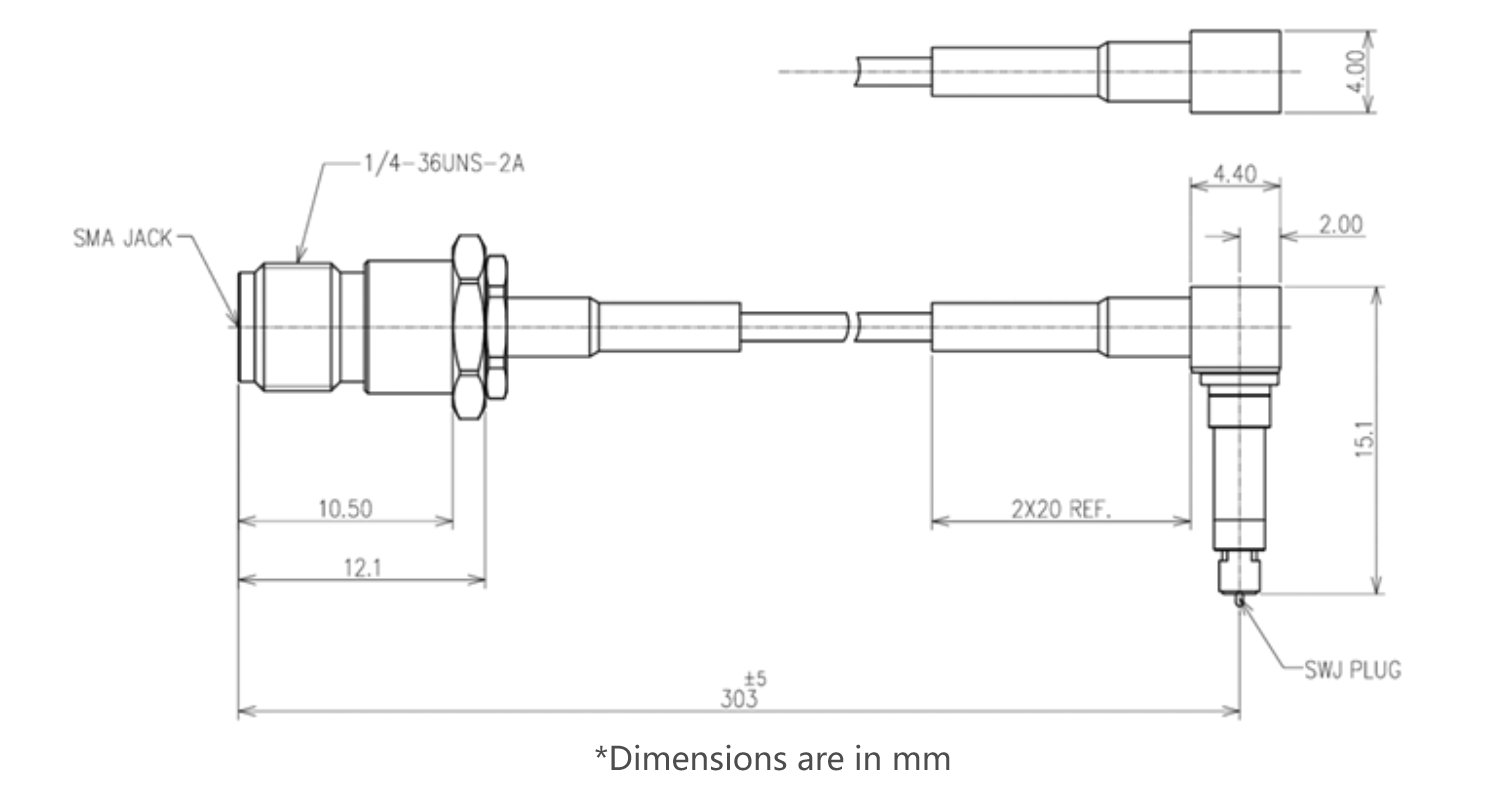

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
