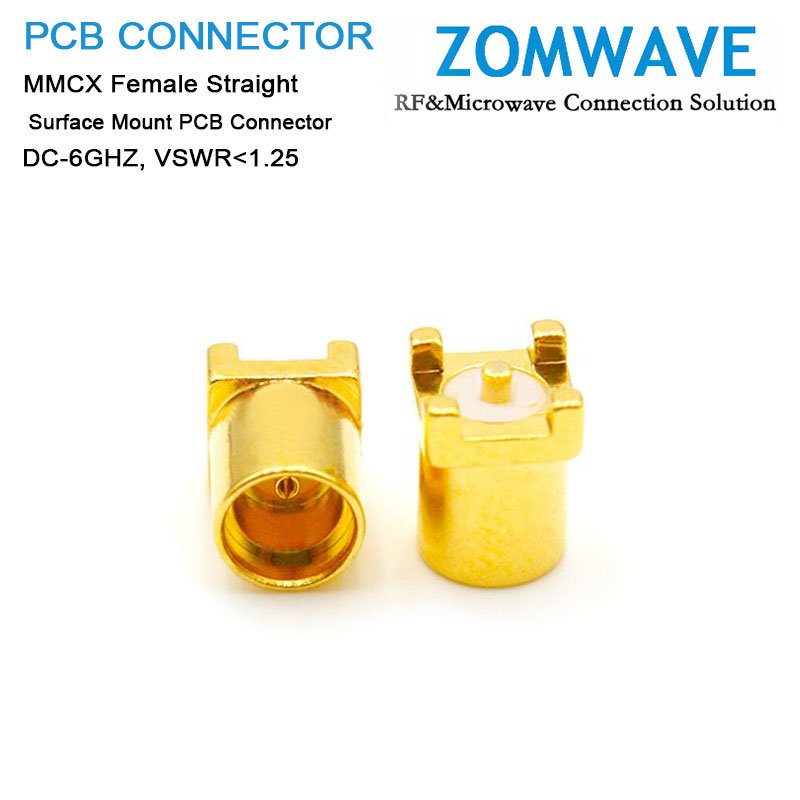

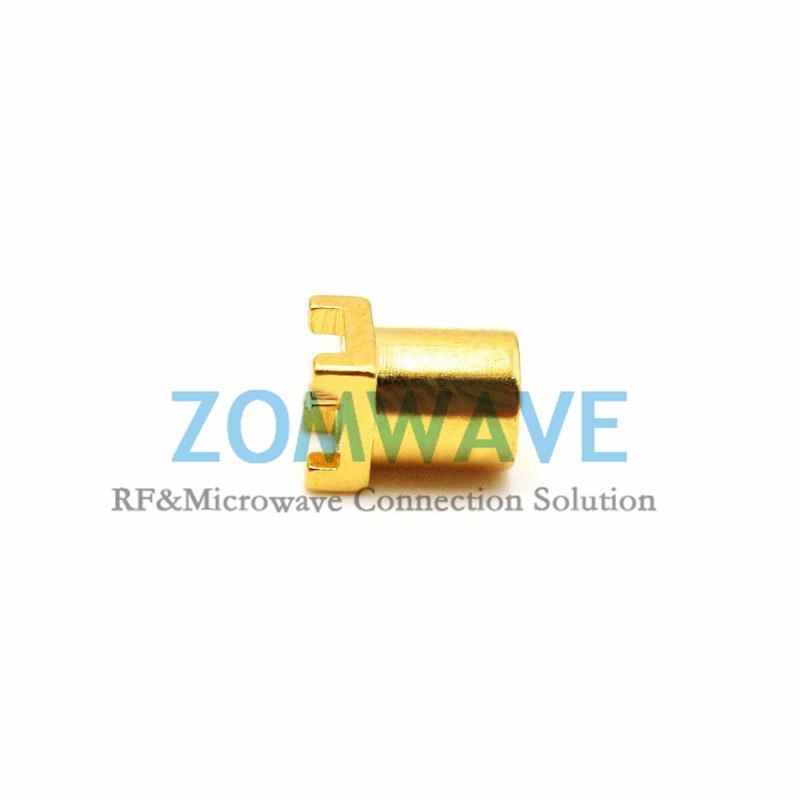

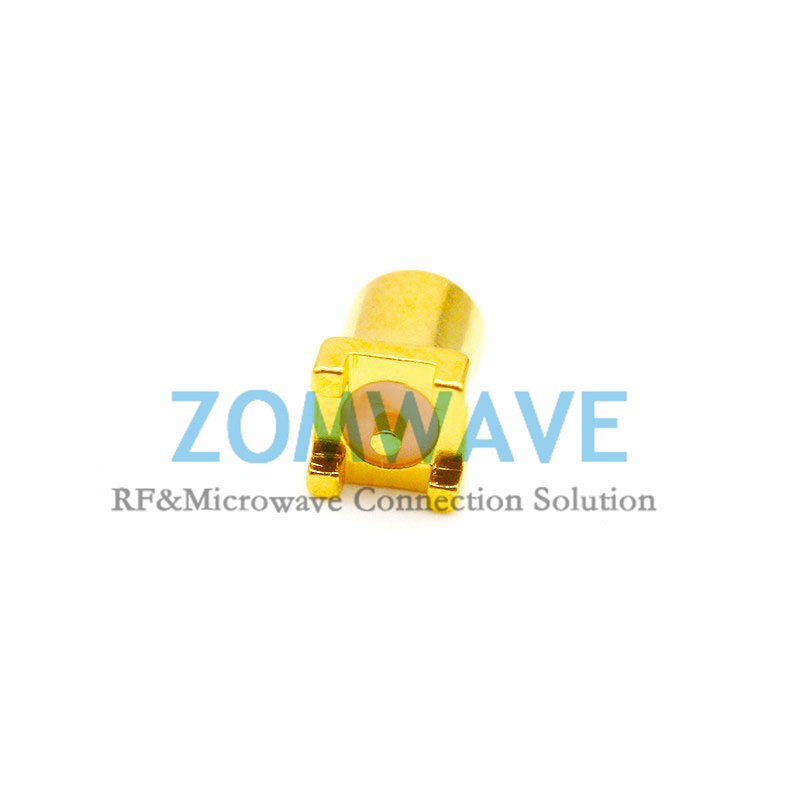

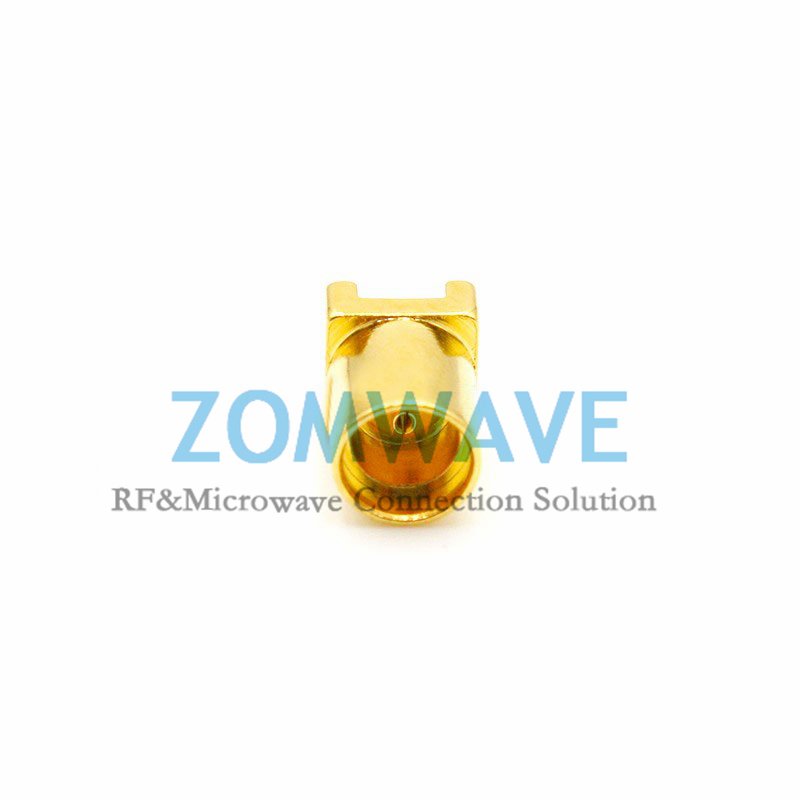

Key specifications
| Configuration | |
| Connector Series | MMCX |
| Connector Gender | Female |
| Connector Angle | Straight |
| Connector Mount Method | None |
| Attachment Method | Solder |
| Interface Type | Surface Mount |
| Material | |
| Centre Contact | Brass, gold plated |
| Body | Brass, gold plated |
| Insulators | PTFE |
| Electrical Specifications | |
| Impedance | 50 ohm |
| Frequency Range(From DC) | 6GHZ |
| VSWR | ≤1.25:1 (DC 0~6GHz) |
| Insertion Loss | 0.05 xSqt.(f_Ghz) |
| Voltage Rating | 150 V(rms) |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥500 Mohm |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 5-7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -45°C ~ +125°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft |

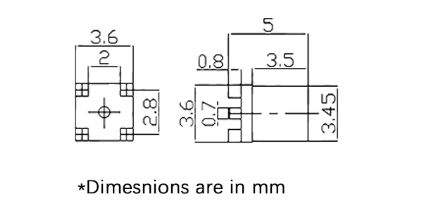

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
