FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz
FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz
FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz
Click to enlarge
FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz
FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz
FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz

FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, 6GHz

$8.33 – $10.00

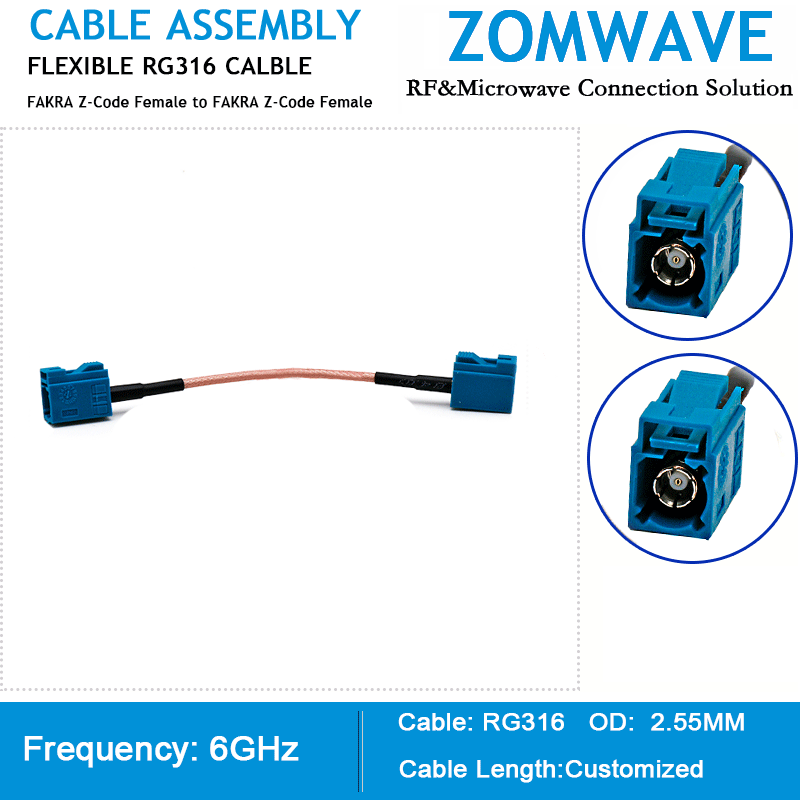

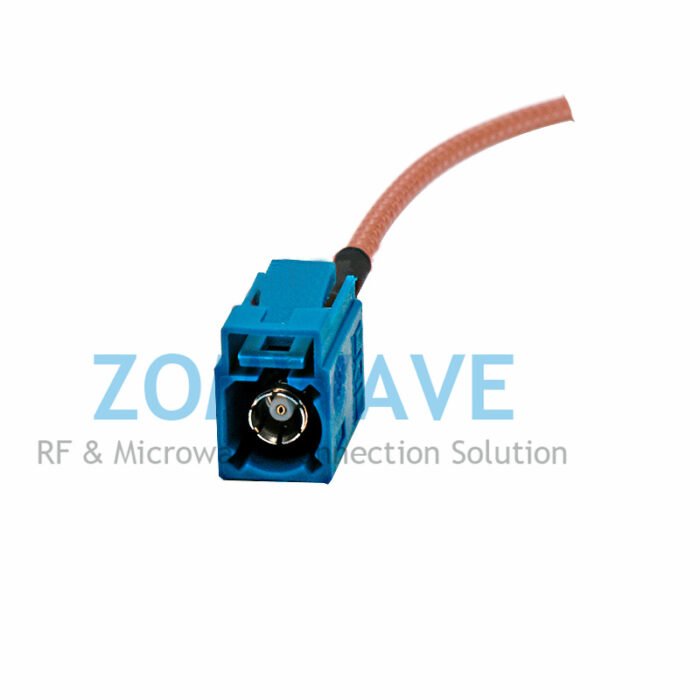

No MOQ, 5 days Shipping out, 100% fully tested to ensure high quality. FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable, ZOMWAVE RG316 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG316 coax is constructed with a 0.102 jacket made of FEP, assemblies are part of over 40,000 RF, microwave and millimeter wave components. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The FAKRA Z-Code Female to FAKRA Z-Code Female, RG316 Cable cable assembly is composed of Flexible RG316 Cable. The Flexible RG316 Cable. are perfect for interconnection of coaxial components or sub-systems connection. The cable construction includes a silver-plated copper-clad steel center conductor, low loss PTFE, and tin overcoated copper shield braiding, which minimizes signal leakage. Connectors have brass, nickel plated coupling nut over a gold plated connector body that make the connection more reliable. The Flexible RG316 Cables are available in variety of length to meet your requirements. Variations of FAKRA cable assemblies can also be manufactured and will be shipped within 5 days.

Quantity Price Discount
1-9 $8.33 0%
10-49 $8.00 4%
50-99 $7.66 8%
100+ $7.00 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1FAKRA Z-Code
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Brass, Nickel Plated
Connector Series 2FAKRA Z-Code
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable Type RG316
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz

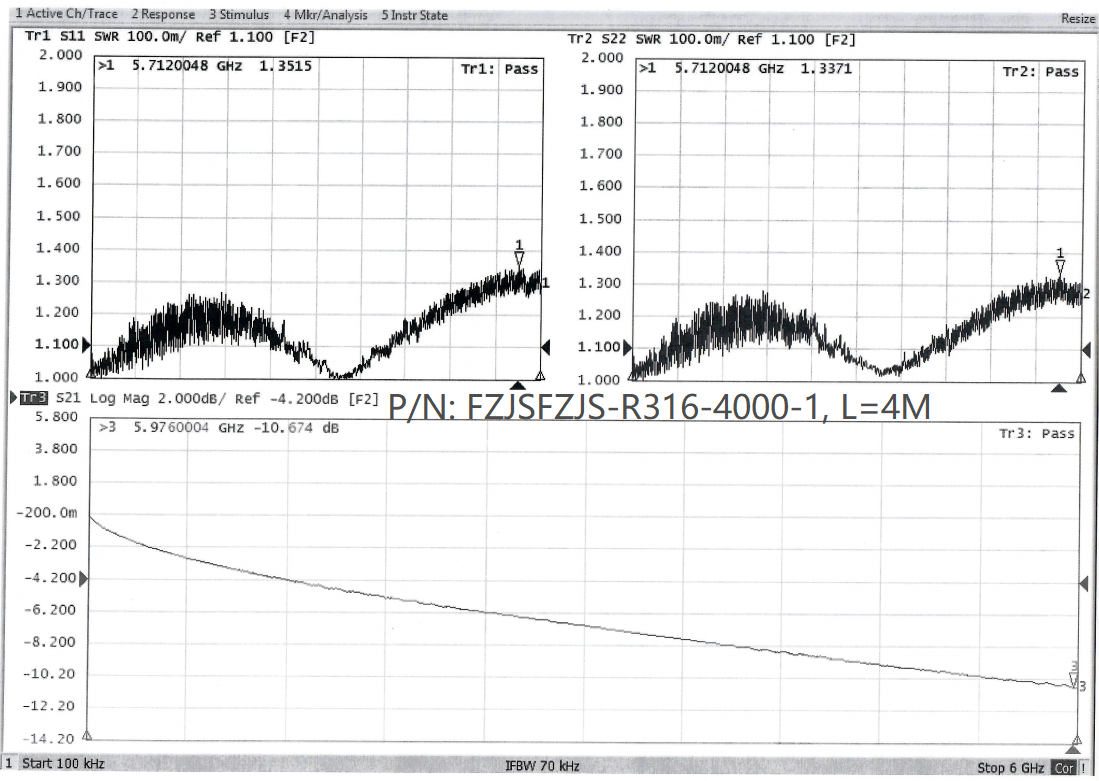

VSWR≤1.50:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.50±0.05
Min. Bending Radius(mm)15
Shielding Effect(dB)>80
Weight(kg/km)16 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.10.29
0.40.58
0.90.88
10.93
1.81.27
2.41.46
31.65
52.14
62.34

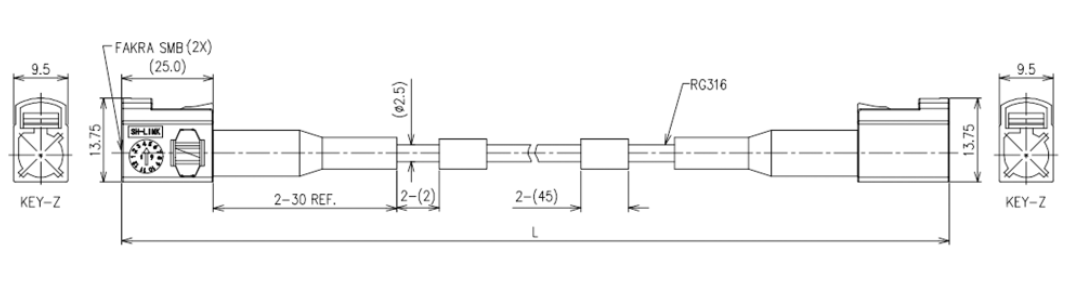

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
