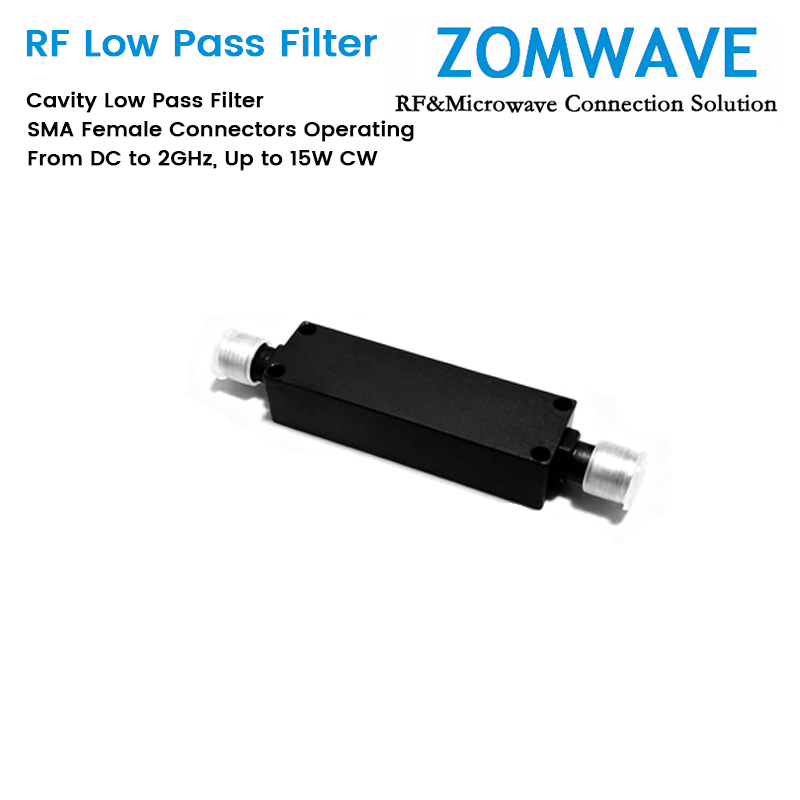

Cavity Low Pass Filter with SMA Female Connectors Operating From DC to 2GHz, Up to 15W CW
Click to enlarge

Cavity Low Pass Filter with SMA Female Connectors Operating From DC to 2GHz, Up to 15W CW

Price range: $440.00 through $448.00

ZOMWAVE High-Performance Low Pass Filter is designed to provide deep suppression of unwanted signals above the cutoff frequency. It features a wide passband covering DC to 2 GHz with low insertion loss, making it an ideal solution for passing desired low-frequency signals while blocking high-frequency noise and spurious signals, ensuring signal integrity across the target spectrum.

The filter is built with a precision aluminum alloy shielded enclosure, delivering excellent stopband rejection of ≥60 dB, low passband loss of ≤1.0 dB, and a power handling capacity of up to 15W CW. Its robust construction and standard SMA-Female connectors ensure reliable operation in demanding applications such as communications infrastructure, radar systems, and advanced test setups. This low pass filter is available in frequencies of 1, 1.25, 1.5, and 2 GHz. In addition to frequency, phase matching or time delay matching can also be customized according to customer requirements.

Quantity Price Discount
1-9 $440.00 0%
10-49 $422.40 4%
50-99 $404.80 8%
100+ $378.40 14%

   200+                                     Call US

   Get a lower discount price

DC - 1.25GHz
DC - 1.5GHz
DC - 1GHz
DC - 2GHz
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
RF Filter TypeLow Pass Filter
Connector SeriesSMA
Connector GenderFemale
Electric Specifications
Impedance50ohm
Cut Off Frequency2GHz
Pass Band Frequency DC ~ 2GHz
Stop Band Attenuation≥60dB
Pass Band VSWR≤1.3:1
Pass Band Insertion Loss≤1.0dB
Input Avg Power15W Max
Mechanical Characteristics
Length2.40 in [61 mm]
Width0.94 in [24 mm]
Height0.39 in [10 mm]
Weight0.5 KG
Environmental Characteristics （RoHS Complliant)
Temperature Rating-55℃ ~ +85℃
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
