75 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter, 3GHz
75 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter, 3GHz
Click to enlarge
75 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter, 3GHz
75 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter, 3GHz

75 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter, 3GHz

$50.00

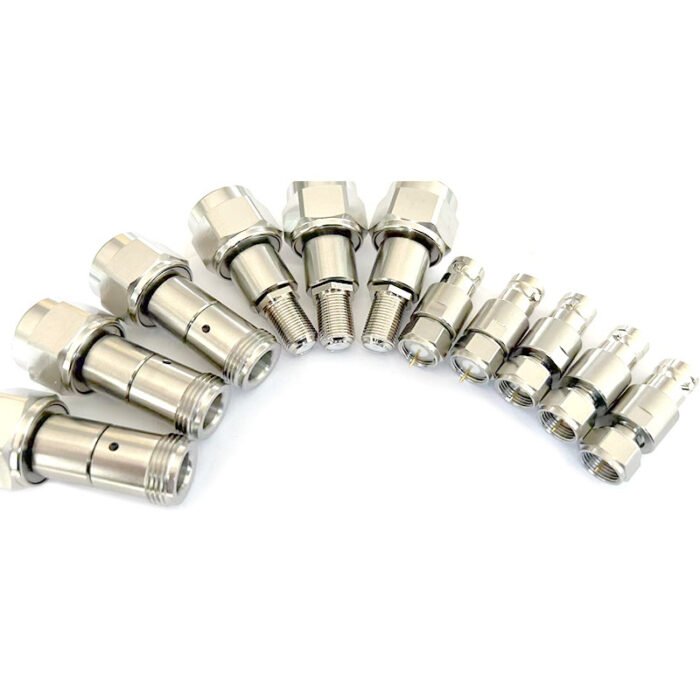

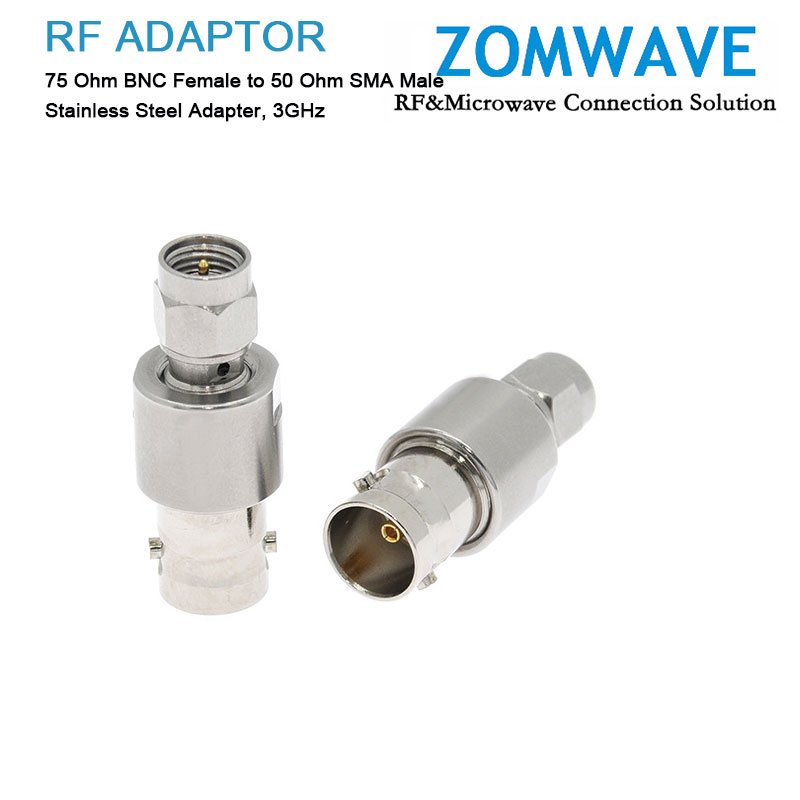

The 775 Ohm BNC Female to 50 Ohm SMA Male Stainless Steel Adapter is perfect for interconnection of coaxial components or sub-systems connection. This 75ohm to 50 ohm adapter has a straight body. Our 75 Ohm BNC Female to 50 Ohm SMA Male is Stainless Steel Plated that is cost-effetive for use. ZOMWAVE adapter has excellent VSWR performance with frequency up to 3GHz



Quantity Price Discount
1-9 $50.00 0%
10-49 $48.00 4%
50-99 $46.00 8%
100+ $42.00 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:B7J-MAP-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1BNC
Adapter Gender 1Female
Impedance 175Ω
Adapter Mount Method1None
Body Materials and Plating 1Stainless Steel
Adapter Series 2SMA
Adapter Gender 2Male
Impedance 250Ω
Adapter Mount Method 2None
Body Materials and Plating 2Stainless Steel
Adapter Angle Straight
Electric Specifications
Frequency Range(From DC)3GHz
VSWR1.25 Max
Insertion Loss5.70dB±0.5dB Max
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

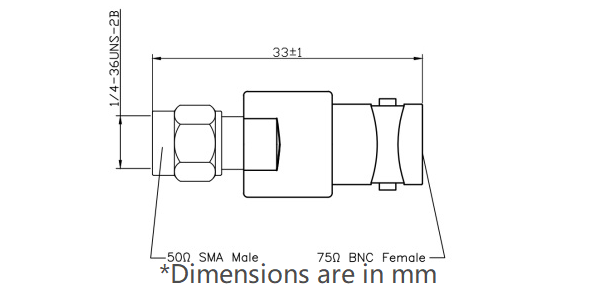

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
