3.5mm Male to SMP(GPO) Right Angle Female, Flexible ZCXN 3506 Cable, 30GHz
3.5mm Male to SMP(GPO) Right Angle Female, Flexible ZCXN 3506 Cable, 30GHz
Click to enlarge

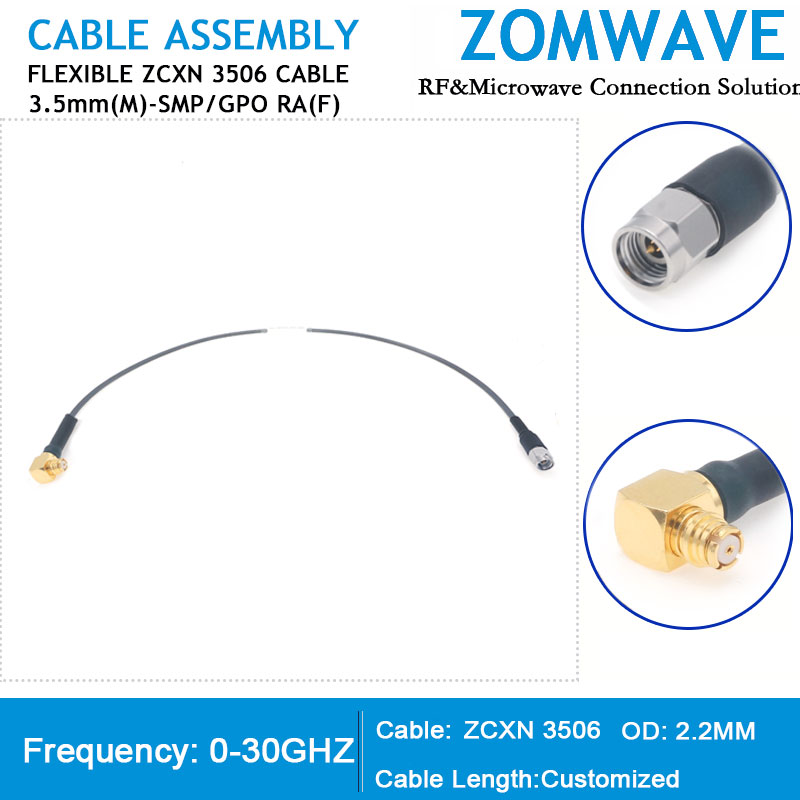

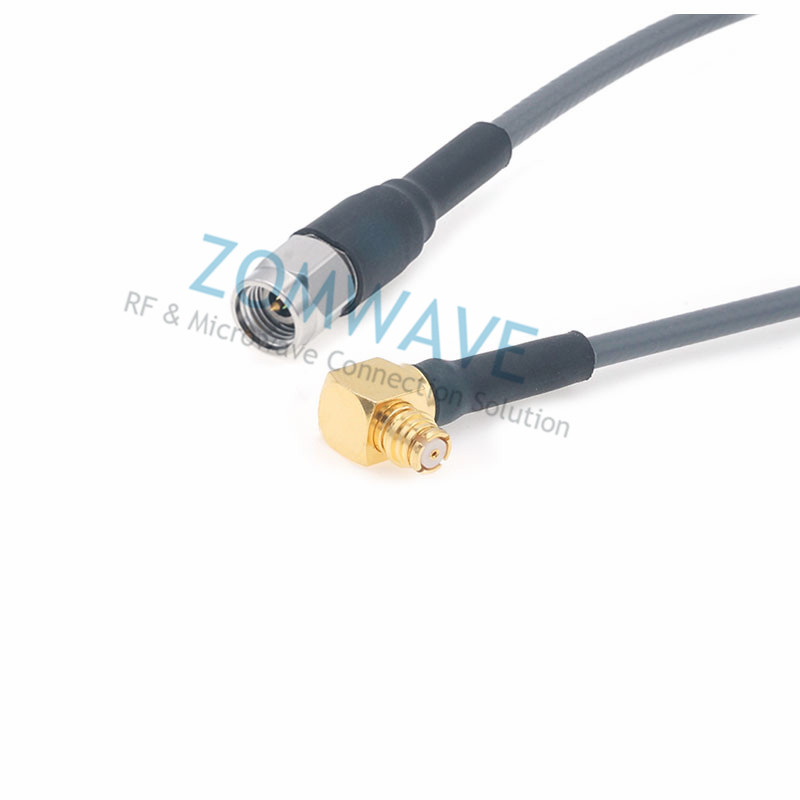

3.5mm Male to SMP(GPO) Right Angle Female, Flexible ZCXN 3506 Cable, 30GHz
3.5mm Male to SMP(GPO) Right Angle Female, Flexible ZCXN 3506 Cable, 30GHz

3.5mm Male to SMP(GPO) Right Angle Female, Flexible ZCXN 3506 Cable, 30GHz

Price range: $94.13 through $170.33

RF coaxial cables 3.5mm Male to SMP(GPO) Right Angle Female ZCXN 3506 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 3.5mm Male to SMP(GPO) Right Angle Female cable assembly is constructed with ZCXN 3507, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 3.5mm cable assembly is manufactured with 3.5mm Stainless Steel connectors, with 40 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 3.5mm Male to SMP(GPO) Right Angle Female cable assemblies, which can be shipped quickly worldwide. Variations of 3.5mm cable assemblies can also be manufactured and will be shipped within 5 days.

Quantity Price Discount
1-9 $94.13 0%
10-49 $90.36 4%
50-99 $86.60 8%
100+ $79.07 16%

   200+                                     Call US

   Get a lower discount price

24in
36n
48in
60in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 13.5mm
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 2SMP
Connector Gender 2Female
Connector Angle 2Right  Angle
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypeZCXN3506
Electric Specifications
Impedance50ohm
Frequency Range(From DC)30GHz
VSWR≤1.3:1 (DC 0~30GHz)
Insertion LossDepends on cable length
Mechanical Phase<±5°@30GHz
Amplitude Stability<±0.07dB@30GHz
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP
Jacket Diameter(mm)3.60±0.15
Min. Bending Radius(mm)18
Shielding Effect(dB)>90
Weight(kg/km)33 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.26
10.38
20.53
30.66
50.85
60.94
101.22
181.67
201.76
26.52.05
302.19

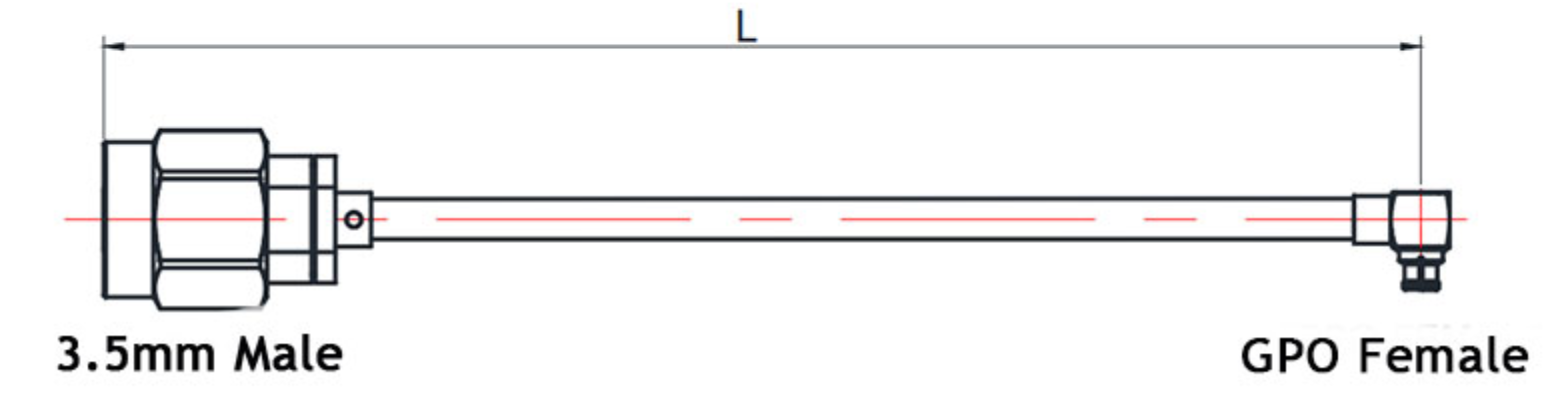

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

You Might Also Like

2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female,Flexible ZCXN 3506,40GHZ
2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female,Flexible ZCXN 3506,40GHZ
Compare

2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female,Flexible ZCXN 3506,40GHZ

Price range: $110.80 through $187.00
RF coaxial cables 2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female ZCXN 3507 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female cable assembly is constructed with ZCXN 3507, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 2.4mm cable assembly is manufactured with 2.4mm Stainless Steel connectors, with 50 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 2.4mm Male to Mini SMP (SMPM/GPPO) Right Angle Female cable assemblies, which can be shipped quickly worldwide. Variations of 2.4mm cable assemblies can also be manufactured and will be shipped within 5 days.

Add to wishlist
Select options
Quick view

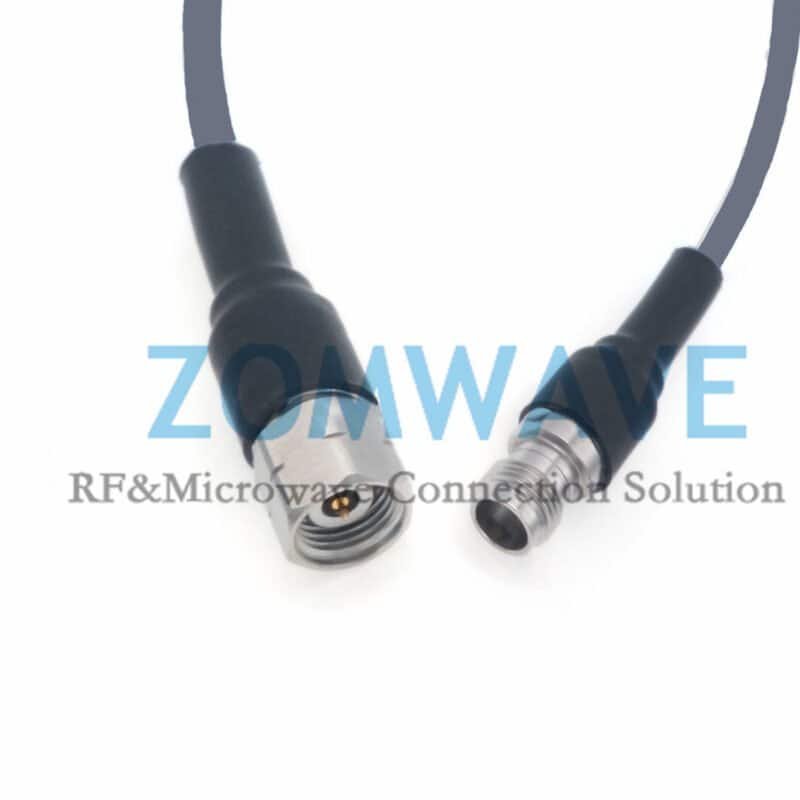

2.4mm Male to 2.4mm Female, Flexible ZCXN 3506 Cable, 50GHz
2.4mm Male to 2.4mm Female Flexible ZCXN 3506 Cable,50GHz
Compare

2.4mm Male to 2.4mm Female, Flexible ZCXN 3506 Cable, 50GHz

Price range: $100.80 through $177.00
RF coaxial cables 2.4mm Male to 2.4mm Female ZCXN 3507 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 2.4mm Male to 2.4mm Female cable assembly is constructed with ZCXN 3507, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 2.4mm cable assembly is manufactured with 2.4mm Stainless Steel connectors, with 50 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 2.4mm Male to 2.4mm Female cable assemblies, which can be shipped quickly worldwide. Variations of 2.4mm cable assemblies can also be manufactured and will be shipped within 5 days.

Add to wishlist
Select options
Quick view
1.85mm Female to 2.92mm Male, Flexible ZCXN 3506 Cable, 40GHz
1.85mm Female to 2.92mm Male Flexible ZCXN 3506 Cable, 40GHz
Compare

1.85mm Female to 2.92mm Male, Flexible ZCXN 3506 Cable, 40GHz

Price range: $107.47 through $183.67
RF coaxial cables 1.85mm Female to 2.92mm Male ZCXN 3506 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 1.85mm Female to 2.92mm Male cable assembly is constructed with ZCXN 3506, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 1.85 mm cable assembly is manufactured with 1.85 mm Stainless Steel connectors, with 50 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 1.85mm Female to 2.92mm Male cable assemblies, which can be shipped quickly worldwide. Variations of 1.85 mm cable assemblies can also be manufactured and will be shipped within 5 days.

Add to wishlist
Select options
Quick view

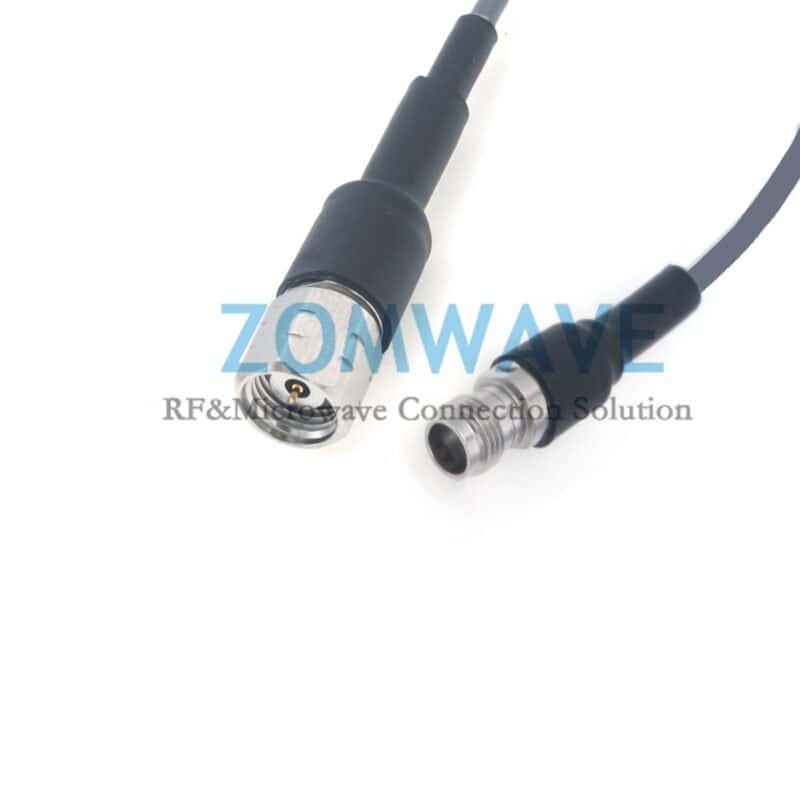

1.85mm Male to 2.4mm Female, Flexible ZCXN 3506 Cable, 50GHz
