2x SP6T Electromechanical Switch Matrix, Terminated, DC to 40 GHz, Ethernet & USB control, 2.92mm Female Type

$4,531.43

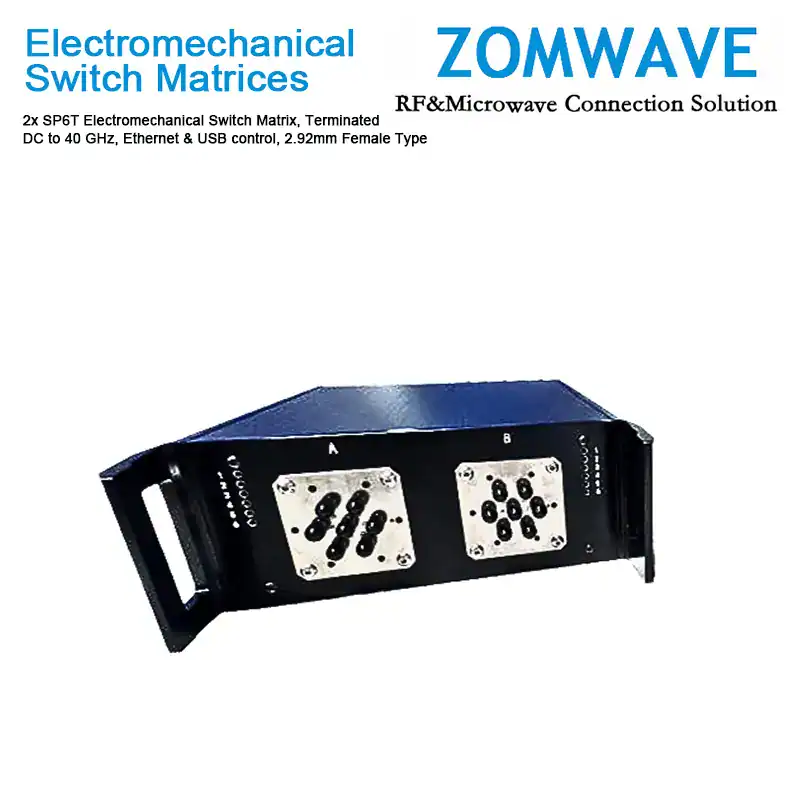

The SML-2P12T-MK40G-UE-01 is a switch matrix consisting of two Single Pole Twelve Throw (2xSP6T) electromechanical relays, designed for a wide frequency range from DC to 40 GHz. It handles up to 5W of average power and operates on a break-before-make basis. Rated for 2.5 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.9 dB and isolation greater than 55 dB.

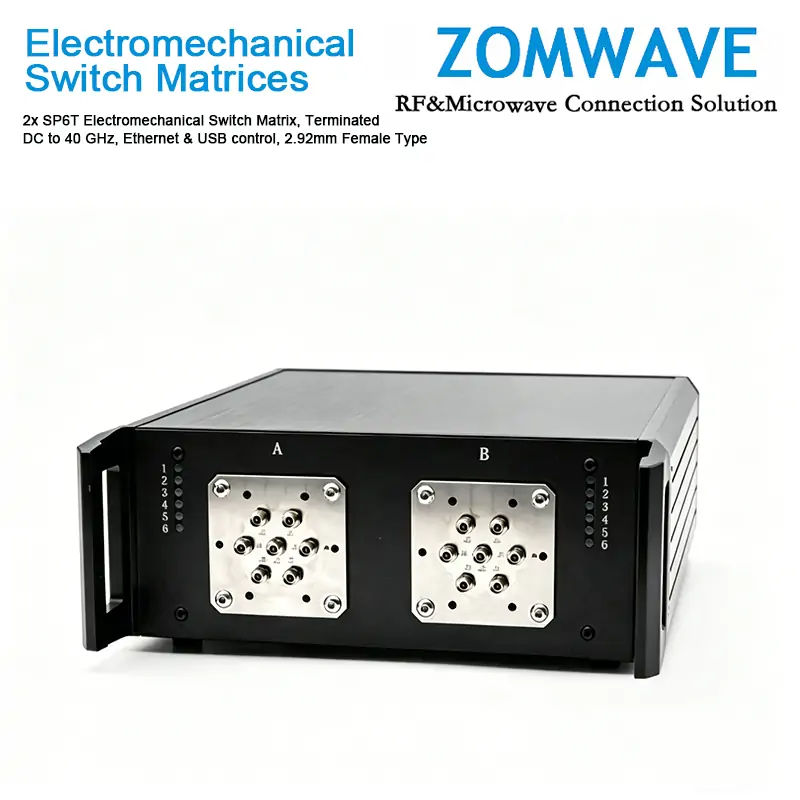

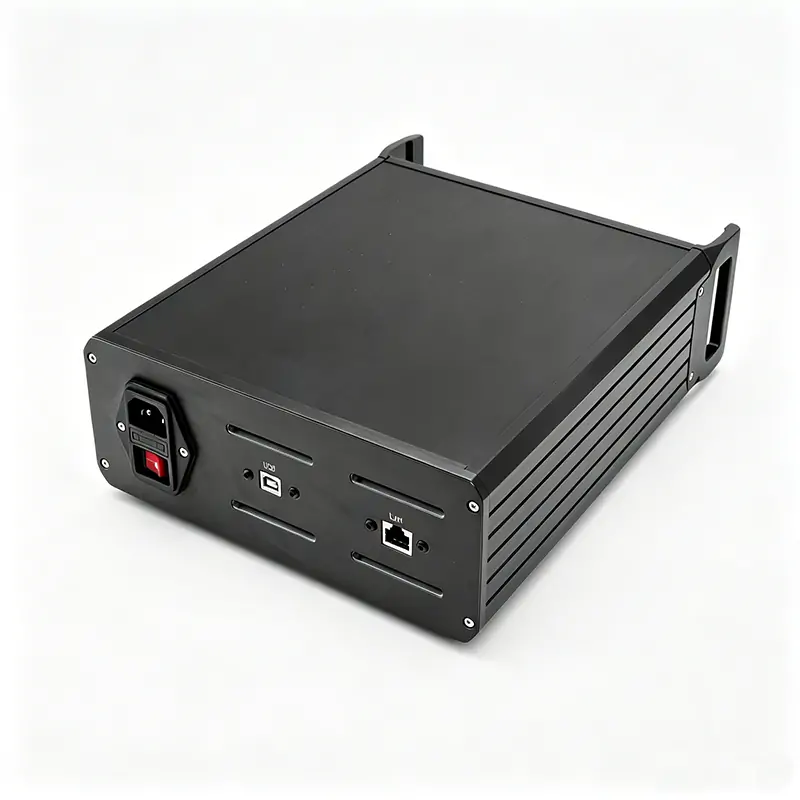

The switch requires an AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

Quantity Price Discount
1-9 $4,531.43 0%
10-49 $4,350.17 4%
50-99 $4,168.92 8%
100+ $3,897.03 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N: SML-2P12T-MK40G-UE-01

Key Specifications

Configuration
Switch Design2x SP6T
Input Ports2
Output Ports12
Switch TypeTerminated
Actuator TypeLatching
Command ControlUSB & Ethernet
Connector Series 2.92mm
Connector GenderFemale
Operating Voltage220VAC
Electric Specifications
Frequency Range(From DC)40GHz
VSWR≤1.90:1
Insertion Loss<0.9dB
Isolation>55dB
Input Power, CW 5 Watts @25°C
Mechanical Characteristics
Mating Cycles≥ 2,500,000 cycles
Switching Time<15ms
Environmental Characteristics (RoHS Complliant)
Temperature Rating-25°C ~ +65°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.



Catalog Products

                   PNFrequency(GHz)ConfigurationImpedance
(ohm)
ConnectorsControlRemark
LowHighInput PortsOutput Ports
 SML-2P12T-MK40G-UE-01DC40212502.92mmUSB & Ethernet2x SP6T
SML-1P08T-MA06G-UE-01DC61850SMAUSB & Ethernet1x SP8T
SML-1P08T-MK26G-UE-01DC26.518502.92mmUSB & Ethernet1x SP8T
SML-2P16T-MK26G-UE-01DC26.5216502.92mmUSB & Ethernet2x SP8T
SML-2P16T-MK40G-UE-01DC40216502.92mmUSB & Ethernet2x SP8T
SML-3P12T-MK40G-UE-01DC40312502.92mmUSB & Ethernet3x SP4T
SMS-4P16T-MK18G-UE-01DC1841650SMAUSB & Ethernet4x SP4T
 SML-2P12T-P250G-UE-01DC50212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-P254G-UE-01DC54212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-VC67G-UE-01DC67212501.85mmUSB & Ethernet2x SP6T
SML-3P12T-P250G-UE-01DC50312502.4mmUSB & Ethernet3x SP4T
SML-3P12T-P254G-UE-01DC54312502.4mmUSB & Ethernet3x SP4T
SMS-4P16T-P250G-UE-01DC50416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-P254G-UE-01DC54416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-VC67G-UE-01DC67416501.85mmUSB & Ethernet4x SP4T
SML-2P06T-MK26G-UE-01DC26.526502.92mmUSB & Ethernet2x SP3T
SML-2P06T-MK40G-UE-01DC4026502.92mmUSB & Ethernet2x SP3T
SML-2P06T-P250G--UE-01DC5026502.4mmUSB & Ethernet2x SP3T
SML-2P06T-P254G-UE-01DC5426502.4mmUSB & Ethernet2x SP3T
SML-2P06T-VC67G-UE-01DC6726501.85mmUSB & Ethernet2x SP3T
SML-2P08T-MA06G-UE-01DC62850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA18G-UE-01DC182850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA20G-UE-01DC202850SMAUSB & Ethernet2x SP4T
SML-2P08T-MK26G-UE-01DC26.528502.92mmUSB & Ethernet2x SP4T
SML-2P08T-MK40G-UE-01DC4028502.92mmUSB & Ethernet2x SP4T
SML-2P08T-P250G-UE-01DC5028502.4mmUSB & Ethernet2x SP4T
SML-2P08T-P256G-UE-01DC5628502.4mmUSB & Ethernet2x SP4T
SML-2P08T-VC67G-UE-01DC6728501.85mmUSB & Ethernet2x SP4T
SML-2P10T-MA06G-UE-01DC621050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA18G-UE-01DC1821050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA20G-UE-01DC2021050SMAUSB & Ethernet2x SP5T
SML-2P10T-MK26G-UE-01DC26.5210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-MK40G-UE-01DC40210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-P250G-UE-01DC50210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-P256G-UE-01DC56210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-VC67G-UE-01DC67210501.85mmUSB & Ethernet2x SP5T
SML-3P12T-VC67G-UE-01DC67312501.85mmUSB & Ethernet3x SP4T
SML-4P32T-MK26G-UE-01DC26.5432502.92mmUSB & Ethernet4x SP8T
