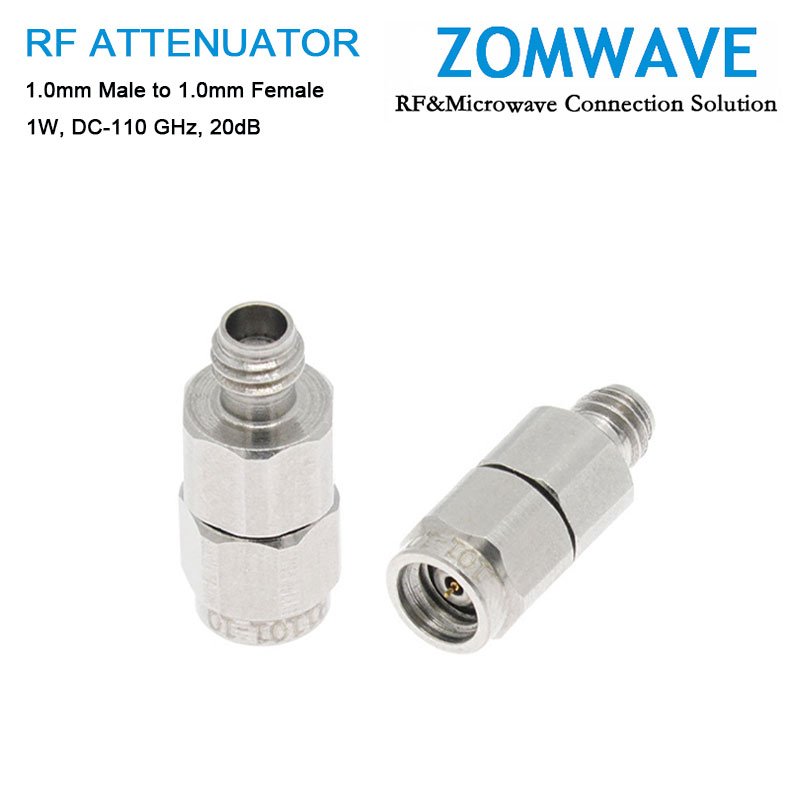

20dB Fixed Attenuator, 1.0mm Male to 1.0mm Female ,1Watts, DC-110 GHz,VSWR
Click to enlarge

20dB Fixed Attenuator, 1.0mm Male to 1.0mm Female ,1Watts, DC-110 GHz,VSWR<1.6

$2,802.36

ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT01W20-110-P1J-P1P-99 is 1.0mm coaxial fixed attenuator operating DC to 110 GHz and rated for 1 Watts. Available from 3 to 20 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.

Quantity Price Discount
1-9 $2,802.36 0%
10-49 $2,690.27 4%
50-99 $2,578.17 8%
100+ $2,410.03 14%

   200+                                     Call US

   Get a lower discount price

SKU: ATT01W20-110-P1J-P1P-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 11.0mm
Connector Gender 1Male
Connector Series 21.0mm
Connector Gender 2Male
Body Materials and PlatingStainless Steel with Passivated
Heat SinkN/A
DirectionBidirectional
Electric Specifications
Impedance50ohm
Frequency Range(From DC)110GHz
VSWR≤1.6:1
Attenuation20dB
Attenuation Accuracy-1.0/+2.0-dB
Input Power, CW 1W@25°C
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-55°C~+125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

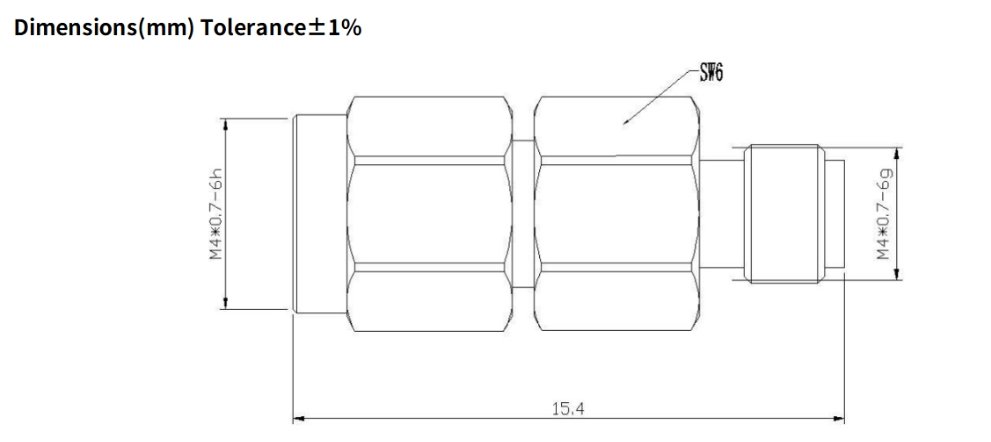

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

Configuration Connector Series 1 1.0mm Connector Gender 1 Male Connector Series 2 1.0mm Connector Gender 2 Male Body Materials and Plating Stainless Steel with Passivated Heat Sink N/A Direction Bidirectional Electric Specifications Impedance 50ohm Frequency Range(From DC) 110GHz VSWR ≤1.6:1 Attenuation 3dB Attenuation Accuracy +2.0/-1.0dB Input Power, CW 1W@25°C Mechanical Characteristics Mating Cycles ≥ 500 cycles ? Mating Torque 5~7 in - lbs Environmental Characteristics （RoHS Complliant) Temperature Rating -55°C~+125°C Corrosion (Salt Spray) MIL-STD-202, Method 101, Condition B Vibration MIL-STD-202, Method 204, Condition D, 20 Gs Shock MIL-STD-202, Method 213, Condition I, 100 Gs Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C Moisture Resistance MIL-STD-202, Method 106, Less Step 7B Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft. Shock MIL-STD-202, Method 213, Condition I, 100 Gs Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C Moisture Resistance MIL-STD-202, Method 106, Less Step 7B 3dB Fixed Attenuator, 1.0mm Male to 1.0mm Female ,1Watts, DC-110 GHz， VSWR
