2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
Click to enlarge
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480
2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480

2.92mm Female Solderless Compression Mount(Stripline), 2 hole Flange with .480

$16.67

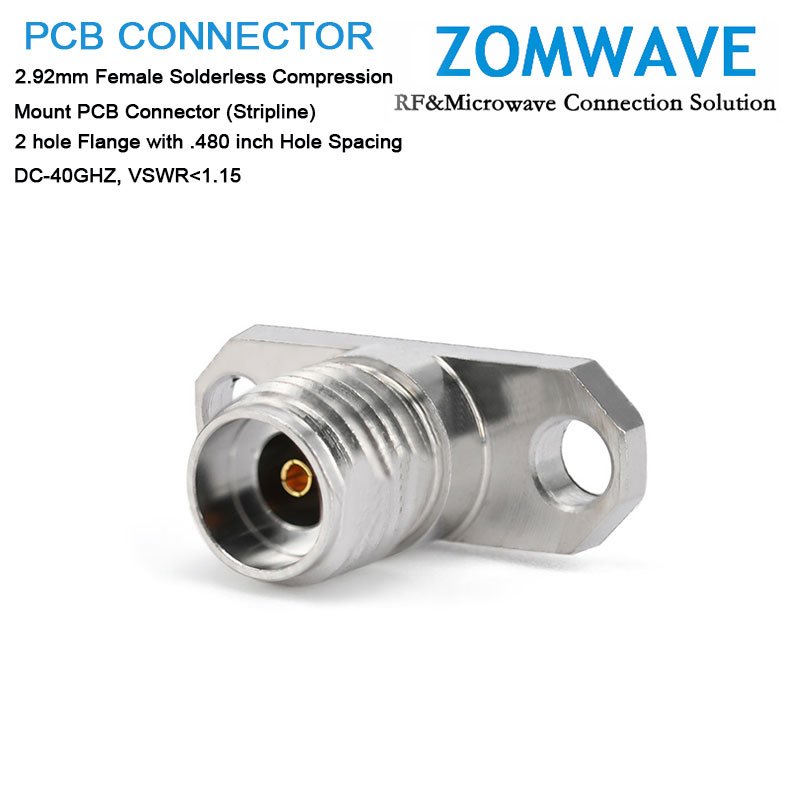

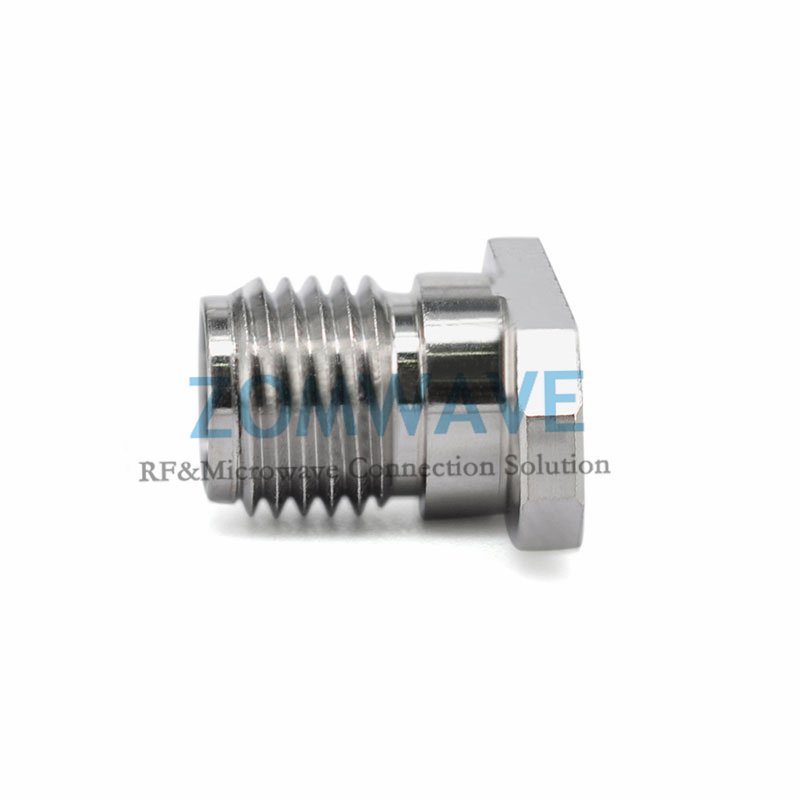

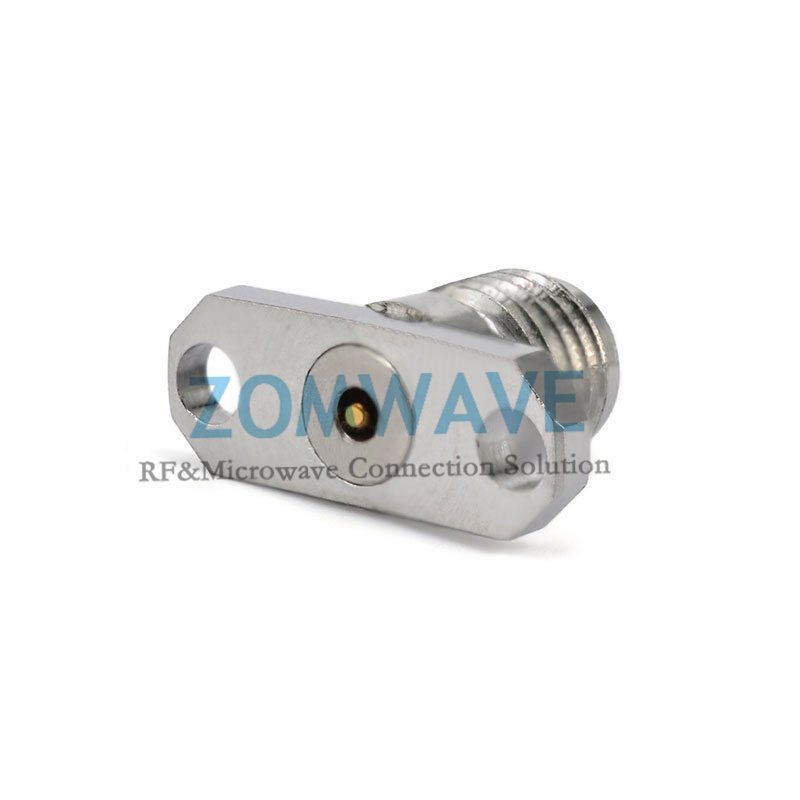

5 Days Ship Out. Negotiable Prcie. ZOMWAVE 2.92mm Female Solderless Compression Mount PCB Connector (Stripline), 2 hole Flange with .480 inch Hole Spacing connector has an interface type of Vertical Launch and a 50 Ohm impedance. 2.92mm female connector uses shield/contact solder as an attachment method. Our female 2.92mm pcb connector provides a minimum frequency of DC and a maximum frequency of 40 GHz. ZOMWAVE 2.92 mm female pcb connector has a PTFE dielectric type and a VSWR of 1.15. ZOMWAVE 2.92mm Female Solderless Compression Mount PCB Connector (Stripline), 2 hole Flange with .480 inch Hole Spacing connector has a stainless steel body. Our 2.92 mm connector uses Cube gold plated contact. This 2.92 mm female pcb RF connector is RoHS and REACH compliant. Our 2.92mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment.

Quantity Price Discount
1-9 $16.67 0%
10-49 $16.00 4%
50-99 $15.34 8%
100+ $14.00 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MKJS-FLTT-PTLK-004
View Datasheet
3D CAD Model(.step)

Key specifications



Configuration
Connector Series 2.92 mm
Connector Gender Female
Connector AngleStraight
Connector Mount MethodNone
Attachment MethodClamp
Interface TypeVertical Launch
Material
Centre ContactCube, gold plated
BodyStainless Steel
InsulatorsPEI
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)40GHZ

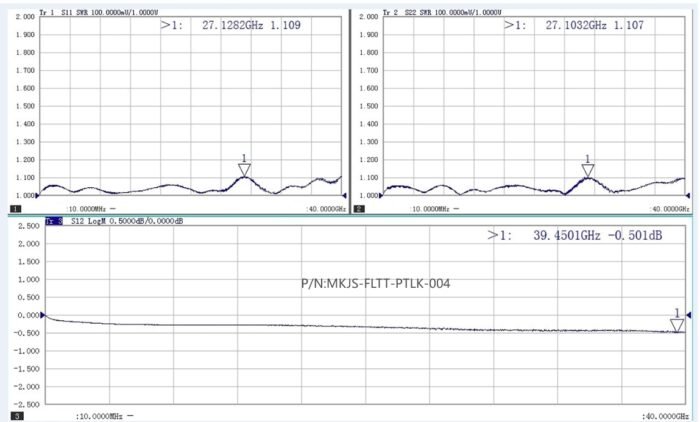

VSWR≤1.15:1 (DC 0~40GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +165°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
