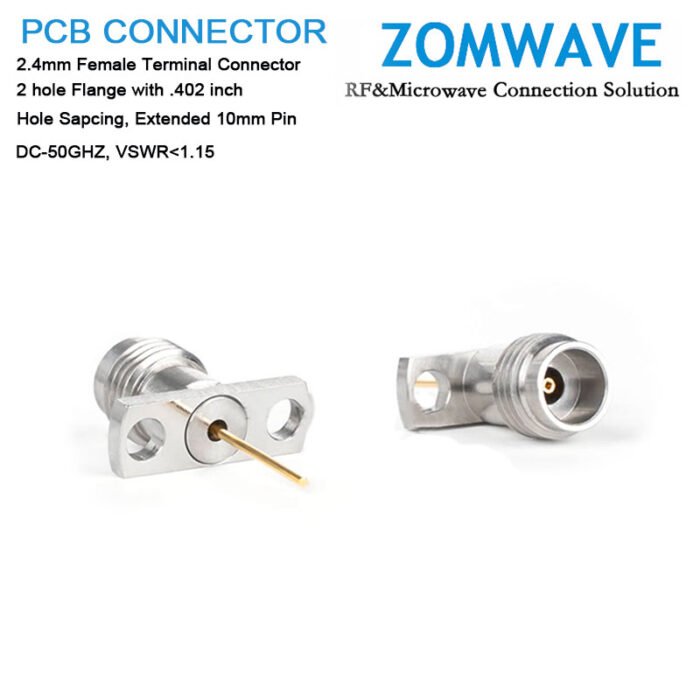

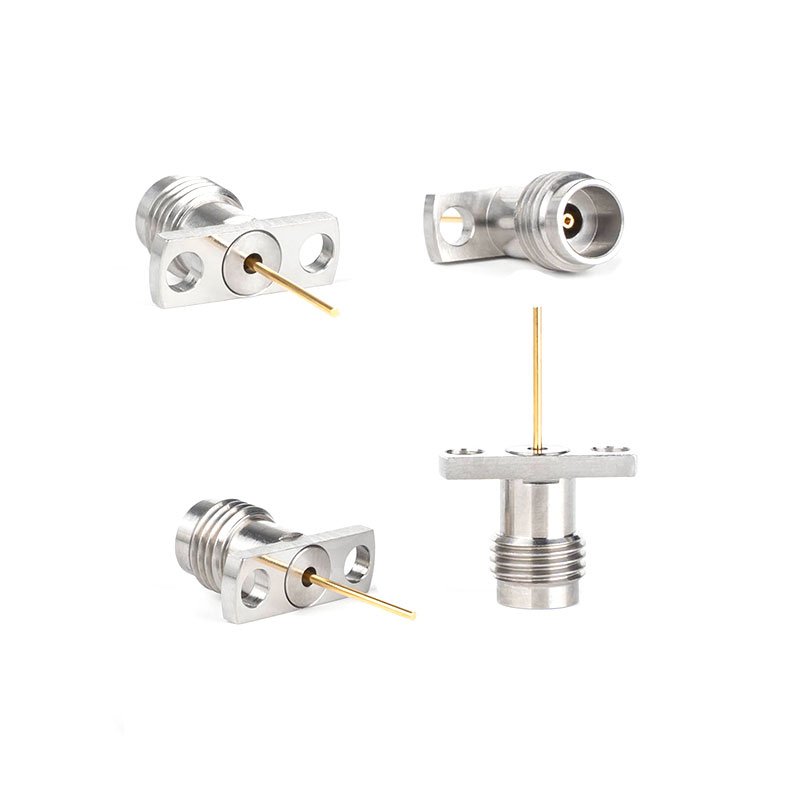

2.4mm Female Terminal,2 hole Flange with .402 inch Hole Sapcing,Extended 10mm Pi
2.4mm Female Terminal,2 hole Flange with .402 inch Hole Sapcing,Extended 10mm Pi

2.4mm Female Terminal,2 hole Flange with .402 inch Hole Sapcing,Extended 10mm Pi

$29.50

5 Days Ship Out. Negotiated Prcie. ZOMWAVE 2.4mm Female Terminal Connector, 2 hole Flange with .402 inch Hole Sapcing, Extended 10mm Pin connector has an interface type of stub terminal and a 50 Ohm impedance.2.4 mm female connector uses shield/contact solder as an attachment method. Our female 2.4 mm pcb connector provides a minimum frequency of DC and a maximum frequency of 50GHz. ZOMWAVE 2.4 mm female pcb connector has a PEI dielectric type and a VSWR of 1.15. The ZOMWAVE 2.4mm Female Terminal Connector, 2 hole Flange with .402 inch Hole Sapcing, Extended 10mm Pin connector has stainless steel body. Our 2.4 mm connector uses beryllium copper contact. This 2.4mm female pcb RF connector is RoHS and REACH compliant. Our 2.4 mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the 2.4mm interface. ZOMWAVE supplies 2.4 mm Female PCB Connector.

Quantity Price Discount
1-9 $29.50 0%
10-49 $28.32 4%
50-99 $27.14 8%
100+ $24.78 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:P2JS-FLTS-PTMS-98
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 2.4 mm
Connector Gender Female
Connector AngleStraight
Connector Mount Method2-Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre ContactBeryllium Copper/Gold Plated
BodyStainless Steel
InsulatorsPEI&PTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)50GHZ
VSWR≤1.15:1 (DC 0~1.15GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +165°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k F

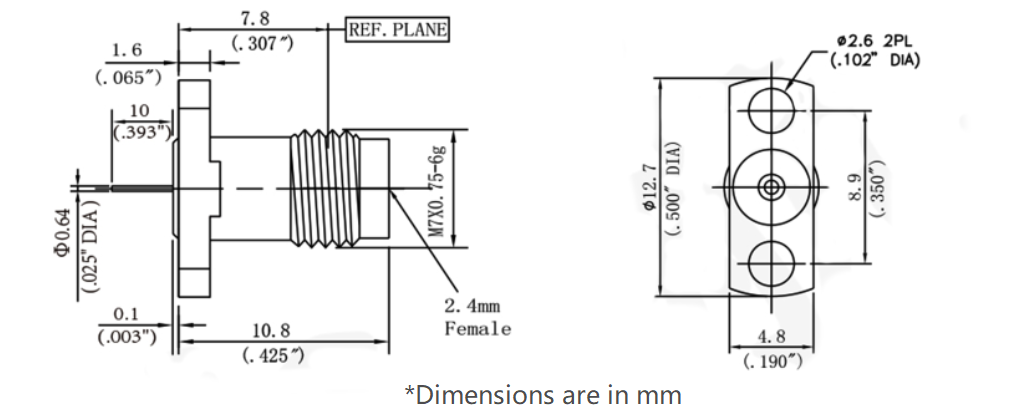

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

2.4mm Female Terminal, 2 hole Flange with .350 inch Hole Sapcing,10mm Pin, 50ghz
