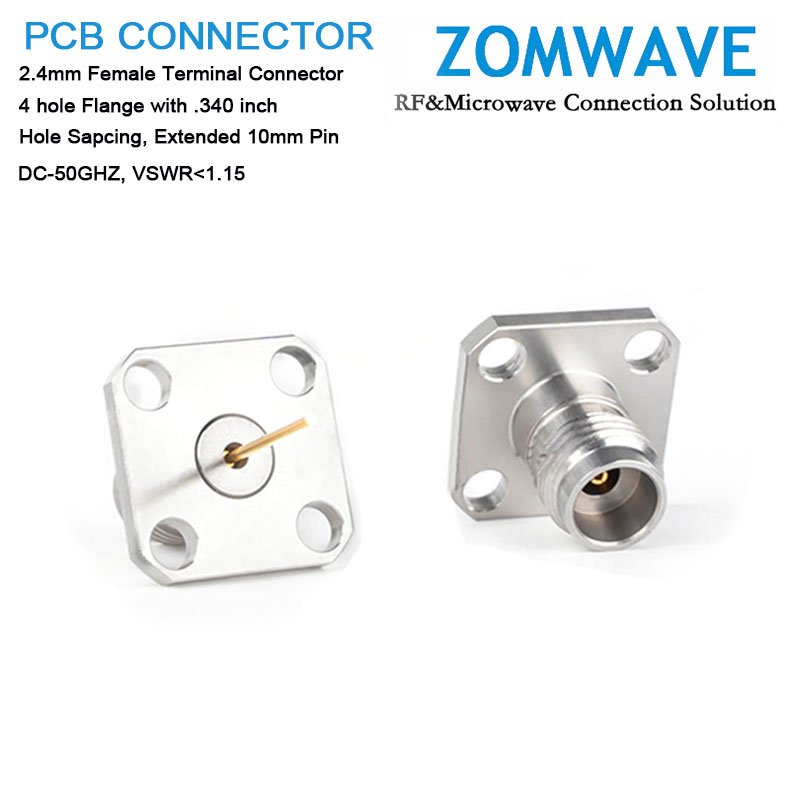

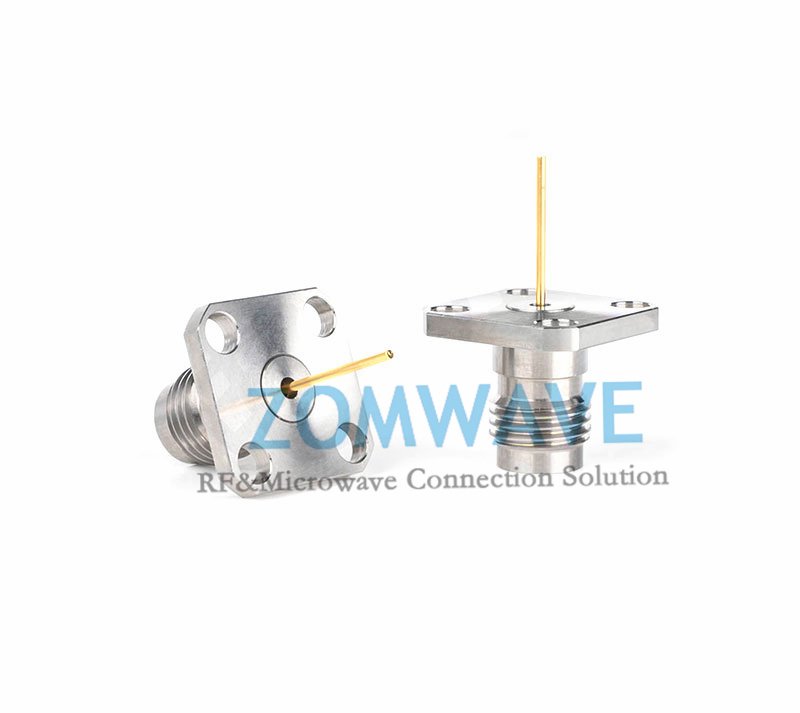

2.4mm Female Terminal, 4 hole Flange with .340 inch Hole Sapcing, 10mm pin , 50G
2.4mm Female Terminal, 4 hole Flange with .340 inch Hole Sapcing, 10mm pin , 50G
Click to enlarge
2.4mm Female Terminal, 4 hole Flange with .340 inch Hole Sapcing, 10mm pin , 50G
2.4mm Female Terminal, 4 hole Flange with .340 inch Hole Sapcing, 10mm pin , 50G

2.4mm Female Terminal, 4 hole Flange with .340 inch Hole Sapcing, 10mm pin , 50G

$29.50

5 Days Ship Out. Negotiable Price. ZOMWAVE 2.4mm Female Terminal Connector, 4 hole Flange with .340 inch Hole Sapcing, Extended 10mm Pin connector has an interface type of stub terminal and a 50 Ohm impedance. ZOMWAVE 2.4mm female 4 hole flange connector uses shield/contact solder as an attachment method. Our 2.4mm Female Terminal Connector, 4 hole Flange with .340 inch Hole Sapcing, Extended 10mm Pin connector provides a minimum frequency of DC and a maximum frequency of 50 GHz. ZOMWAVE 2.4mm female 4 hole flange terminal connector has a PEI dielectric type and a VSWR of 1.15. ZOMWAVE 2.4mm terminal connector has stainless steel body. Our 4 hole flange 2.4mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.4mm connector cable assemblies that will ship within 5 days.

Quantity Price Discount
1-9 $29.50 0%
10-49 $28.32 4%
50-99 $27.14 8%
100+ $24.78 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:P2JS-FLTS-PTMS-96
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 2.4 mm
Connector Gender Female
Connector AngleStraight
Connector Mount Method4-Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre ContactBeryllium Copper/Gold Plated
BodyStainless Steel
InsulatorsPEI
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)50GHZ
VSWR≤1.15:1 (DC 0~1.15GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +165°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

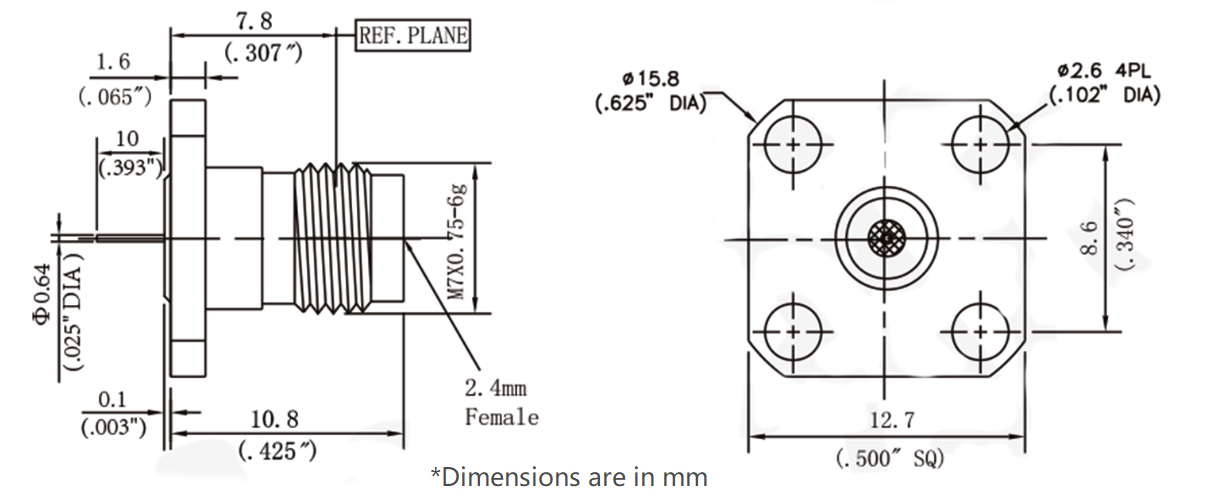

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
