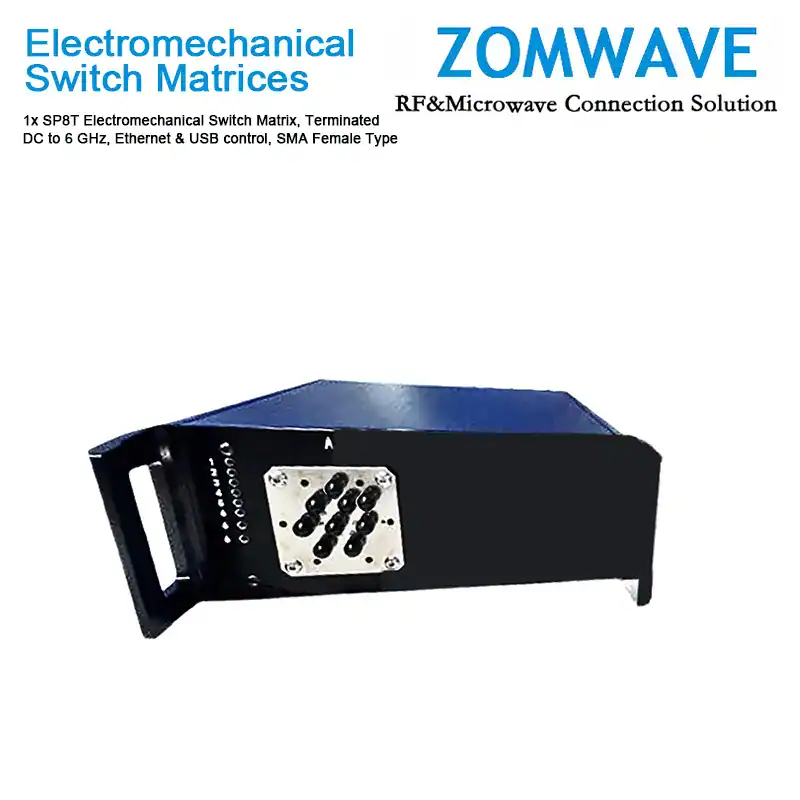

1x SP8T Electromechanical Switch Matrix, Terminated,DC to 6 GHz, Ethernet & USB control, SMA Female Type

$2,457.14

The SML-1P08T-MA06G-UE-01 is a Single Pole Eight Throw (SP8T) electromechanical relay switch matrix designed for a wide frequency range from DC to 6 GHz. It handles up to 32W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.3 dB and isolation greater than 70 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all SMA (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

Quantity Price Discount
1-9 $2,457.14 0%
10-49 $2,358.85 4%
50-99 $2,260.57 8%
100+ $2,113.14 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:SML-1P08T-MA06G-UE-01

Key Specifications

Configuration
Switch Design1x SP8T
Input Ports1
Output Ports8
Switch TypeTerminated
Actuator TypeLatching
Command ControlUSB & Ethernet
Connector Series SMA
Connector GenderFemale
Operating Voltage220VAC
Electric Specifications
Frequency Range(From DC)6GHz
VSWR≤1.30:1
Insertion Loss<0.3dB
Isolation>70dB
Input Power, CW 32 Watts @25°C
Mechanical Characteristics
Mating Cycles≥ 2,500,000 cycles
Switching Time<15ms
Environmental Characteristics (RoHS Complliant)
Temperature Rating-25°C ~ +65°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.



Catalog Products

                   PNFrequency(GHz)ConfigurationImpedance
(ohm)
ConnectorsControlRemark
LowHighInput PortsOutput Ports
 SML-2P12T-MK40G-UE-01DC40212502.92mmUSB & Ethernet2x SP6T
SML-1P08T-MA06G-UE-01DC61850SMAUSB & Ethernet1x SP8T
SML-1P08T-MK26G-UE-01DC26.518502.92mmUSB & Ethernet1x SP8T
SML-2P16T-MK26G-UE-01DC26.5216502.92mmUSB & Ethernet2x SP8T
SML-2P16T-MK40G-UE-01DC40216502.92mmUSB & Ethernet2x SP8T
SML-3P12T-MK40G-UE-01DC40312502.92mmUSB & Ethernet3x SP4T
SMS-4P16T-MK18G-UE-01DC1841650SMAUSB & Ethernet4x SP4T
 SML-2P12T-P250G-UE-01DC50212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-P254G-UE-01DC54212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-VC67G-UE-01DC67212501.85mmUSB & Ethernet2x SP6T
SML-3P12T-P250G-UE-01DC50312502.4mmUSB & Ethernet3x SP4T
SML-3P12T-P254G-UE-01DC54312502.4mmUSB & Ethernet3x SP4T
SMS-4P16T-P250G-UE-01DC50416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-P254G-UE-01DC54416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-VC67G-UE-01DC67416501.85mmUSB & Ethernet4x SP4T
SML-2P06T-MK26G-UE-01DC26.526502.92mmUSB & Ethernet2x SP3T
SML-2P06T-MK40G-UE-01DC4026502.92mmUSB & Ethernet2x SP3T
SML-2P06T-P250G--UE-01DC5026502.4mmUSB & Ethernet2x SP3T
SML-2P06T-P254G-UE-01DC5426502.4mmUSB & Ethernet2x SP3T
SML-2P06T-VC67G-UE-01DC6726501.85mmUSB & Ethernet2x SP3T
SML-2P08T-MA06G-UE-01DC62850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA18G-UE-01DC182850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA20G-UE-01DC202850SMAUSB & Ethernet2x SP4T
SML-2P08T-MK26G-UE-01DC26.528502.92mmUSB & Ethernet2x SP4T
SML-2P08T-MK40G-UE-01DC4028502.92mmUSB & Ethernet2x SP4T
SML-2P08T-P250G-UE-01DC5028502.4mmUSB & Ethernet2x SP4T
SML-2P08T-P256G-UE-01DC5628502.4mmUSB & Ethernet2x SP4T
SML-2P08T-VC67G-UE-01DC6728501.85mmUSB & Ethernet2x SP4T
SML-2P10T-MA06G-UE-01DC621050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA18G-UE-01DC1821050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA20G-UE-01DC2021050SMAUSB & Ethernet2x SP5T
SML-2P10T-MK26G-UE-01DC26.5210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-MK40G-UE-01DC40210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-P250G-UE-01DC50210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-P256G-UE-01DC56210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-VC67G-UE-01DC67210501.85mmUSB & Ethernet2x SP5T
SML-3P12T-VC67G-UE-01DC67312501.85mmUSB & Ethernet3x SP4T
SML-4P32T-MK26G-UE-01DC26.5432502.92mmUSB & Ethernet4x SP8T

For additional customization requirements or configuration assistance, please contact us via email:sales@zomwave.com

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
