1.85mm Male to 1.85mm Male Phase Matched Cable Assembly,Low Loss Phase-Stable,67
Click to enlarge
1.85mm Male to 1.85mm Male Phase Matched Cable Assembly,Low Loss Phase-Stable,67

1.85mm Male to 1.85mm Male Phase Matched Cable Assembly,Low Loss Phase-Stable,67

Price range: $170.80 through $247.00

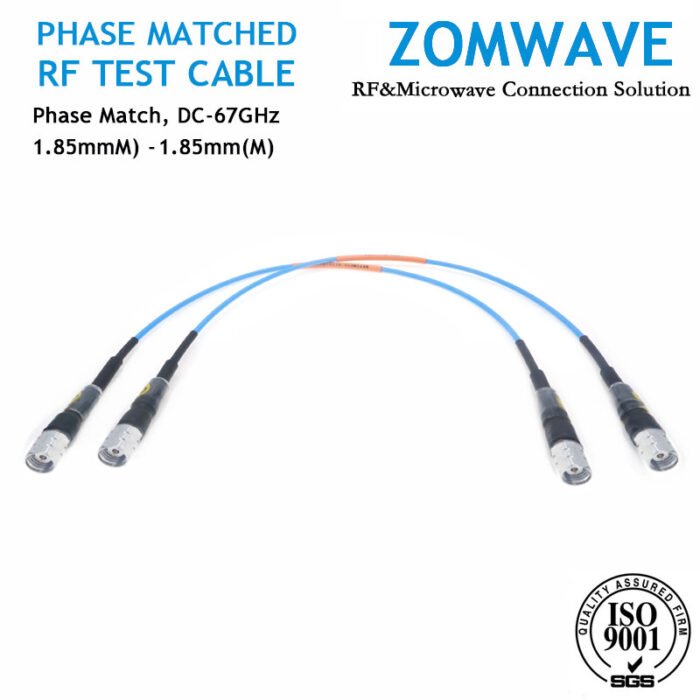

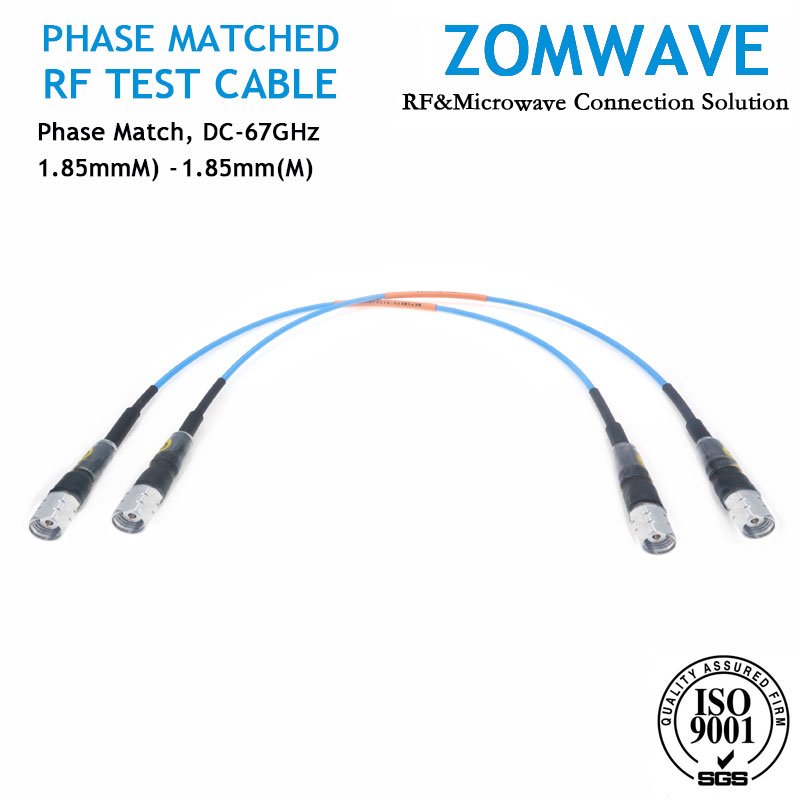

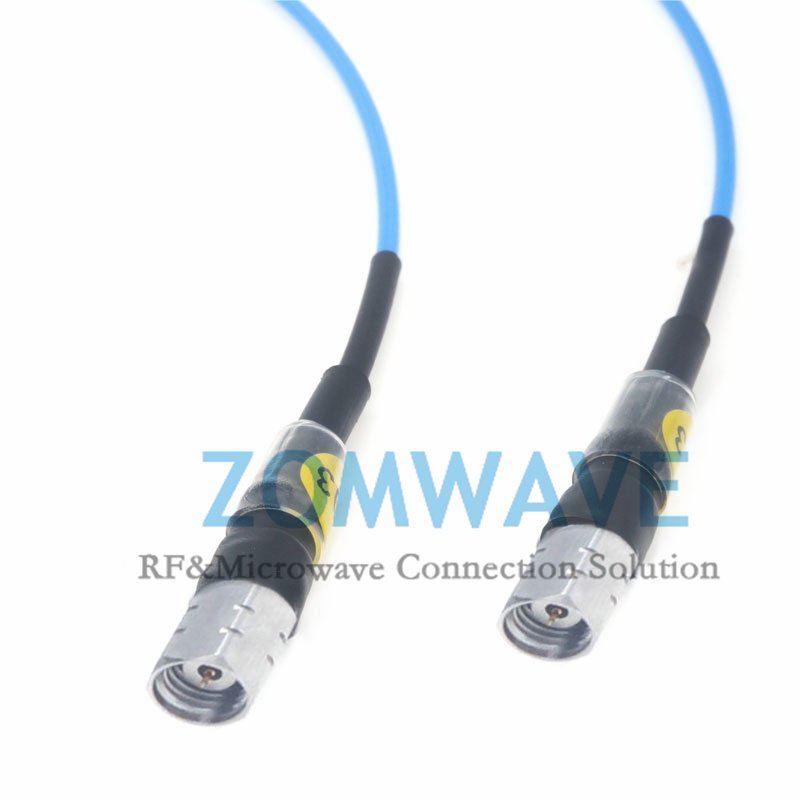

ZOMWAVE Phase Matched Microwave Test Cables are engineered for test applications that require accurate, repeatable measurements up to 110GHz. These premium phase matched cables provide excellent mechanical durability, featuring a rugged construction that delivers a 10 million flex cycle life alongside high phase and amplitude stability. Each matched pair of this cable assembly phase stable solution guarantees a phase delay of less than ±2ps. Built with stainless steel, passivated 1.85mm connectors, the assembly ensures robust performance for demanding test scenarios. Available in standard lengths from 24 to 60 inches, custom lengths and precise phase delay matching are offered to meet specific requirements. This design directly addresses challenges in multi-channel and automated test systems by ensuring measurement consistency, reducing calibration complexity, and improving overall throughput for critical R&D and production testing.

Quantity Price Discount
1-9 $170.80 0%
10-49 $163.97 4%
50-99 $157.14 8%
100+ $143.47 16%

   200+                                     Call US

   Get a lower discount price

24in
36in
48in
60in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 11.85mm
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 2185mm
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypeB23P

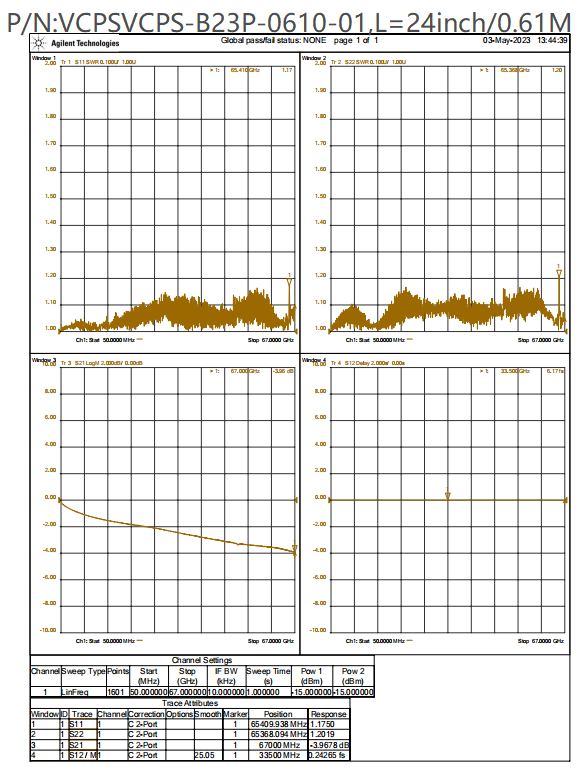

Electric Specifications
Impedance50 ohm
Frequency Range(From DC)67GHz
VSWR≤1.40:1 (DC 0~67GHz)
Insertion LossDepends on cable length
Mechanical Phase<±5°@67GHz
Amplitude Stability<±0.05dB@67GHz
Delay Match (2pcs in one pair)<±2ps
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +80°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP
Jacket Diameter(mm)2.60±0.15
Min. Bending Radius(mm)11
Shielding Effect(dB)>90
Weight(kg/km)23 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.63
20.90
31.11
51.45
61.60
102.10
182.88
203.05
26.53.56
404.48
505.09
676.02

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
