In the world of radio frequency (RF) communications, selecting the right connector is crucial for ensuring optimal performance and reliability. One connector that has gained attention in specialized applications is the TNC male for RG174 sky window type. This article explores what makes this connector unique, its applications, and why it might be the ideal choice for your next project. Whether you’re working with RF cables or seeking connectors for specific coaxial needs, understanding the benefits of this connector can help you make informed decisions.
What is a TNC Male Connector?
A TNC Threaded Neill–Concelman connector is a coaxial connector widely used in RF applications. It resembles the BNC connector but uses a threaded coupling for a mechanically robust low-loss joint that resists vibration and disconnection. Its rugged design suits telecommunications aerospace and defense installations while compatible coax connector male variants support cable sizes such as RG174 and improve shielding ease of termination and signal stability and IP67 sealing.

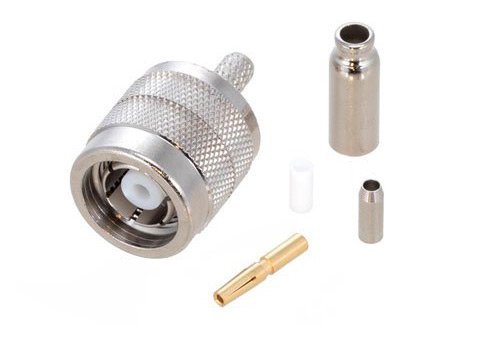

The TNC male sky window for RG174 is engineered for RG174 coaxial cable a compact flexible cable rated to 1 GHz for antennas GPS and telemetry. The sky window design simplifies crimp and solder termination, speeds field assembly and inspection, and improves mechanical retention. As an rg174 connector solution it enhances shielding and signal stability while lowering installation time and long term maintenance costs.
The Sky Window Feature: What Sets It Apart?
One of the distinguishing features of the TNC male for RG174 sky window type is the “sky window” design. While the exact definition of “sky window” may vary, it typically refers to a unique construction that allows for easier installation or improved connection quality. In many connectors, a “solder window” provides access to solder the center conductor without disassembling the connector. Similarly, the sky window feature likely offers a comparable advantage, such as simplifying the crimping process or enabling better inspection of the connection.
This design can be especially beneficial for technicians working in the field, as it reduces the time and effort required to achieve a secure and reliable connection. For businesses that rely on quick and efficient installations, such as those in mobile communications or radar systems, the sky window feature can enhance productivity and reduce downtime.
Applications of the TNC Male for RG174 Sky Window Type
The TNC male for RG174 sky window type is used in a variety of industries where reliability and performance are critical. Some key applications include:
- Mobile Communications: TNC connectors are commonly used in cellular base stations and mobile radio systems due to their ability to withstand vibration and maintain a stable connection.
- Aerospace and Defense: The threaded design of TNC connectors makes them ideal for aircraft and military equipment, where secure connections are essential.
- Radar and Radio Instruments: In radar systems and radio communication devices, the TNC male connector ensures minimal signal loss, which is crucial for accurate data transmission.
The sky window feature further enhances the connector’s suitability for these applications by ensuring a high-quality connection that can be easily verified or adjusted if necessary.
Related Products: SMPM Cables and RF Cables
When working with coaxial connectors like the TNC male for RG174 sky window type, it’s important to consider the broader system, including the cables and other connectors used. For instance, SMPM cables (SubMiniature Push-on Micro) are often used in high-frequency applications, such as satellite communications or test equipment. While SMPM connectors are smaller and designed for higher frequencies, they may be used alongside TNC connectors in complex systems where different connection types are required.
Similarly, RF cables encompass a wide range of coaxial cables used in radio frequency applications. Selecting the right connector for your RF cable is essential to maintaining signal integrity and minimizing loss. The TNC male connector, with its threaded design and compatibility with RG174 cables, is a reliable choice for many RF systems.
Conclusion
Choosing the right connector for your coaxial cable can significantly impact the performance and reliability of your RF system. The TNC male for RG174 sky window type offers a unique combination of durability, ease of installation, and compatibility with RG174 cables, making it an excellent choice for industries like mobile communications, aerospace, and radar systems. Its sky window feature further enhances its appeal by simplifying the connection process and ensuring a high-quality link.
If you’re looking for a connector that delivers both performance and convenience, the TNC male for RG174 sky window type is worth considering. For more information or to inquire about how this connector can meet your specific needs, feel free to contact us.
