Professional engineers and technicians frequently encounter connection challenges when integrating BNC connectors with coaxial cables. This comprehensive guide addresses the essential question of how to establish reliable connections using the bnc coaxial cable adapter and related components for optimal signal transmission performance.
Understanding BNC Connector Fundamentals
BNC Female to coax Male Adapter Overview
BNC Female to coax Male Adapter systems represent critical components in radio frequency applications. The Bayonet Neill-Concelman connector, developed in the late 1940s, provides quick-connect functionality with superior mechanical stability. These connectors feature bayonet coupling mechanisms that achieve secure connections with quarter-turn engagement.
Modern BNC Adapter configurations support both 50-ohm and 75-ohm impedance specifications. The 50-ohm variants serve microwave transmitters, ham radio systems, and test equipment, while 75-ohm versions excel in broadcast applications and high-definition video systems.
Essential Tools and Materials Required
Professional installation demands specific equipment to ensure reliable connections. BNC Cable termination requires coaxial cable strippers, crimping tools, and appropriate connectors. Essential tool requirements include:
Wire strippers capable of precise multi-layer cutting through outer jacket, braided shield, and dielectric materials. Crimping tools specifically designed for BNC connector types provide consistent mechanical pressure for secure connections. Cable cutters with curved jaws prevent dielectric deformation during preparation.
Quality materials significantly impact connection reliability. High-grade brass connectors with nickel plating resist corrosion and provide superior conductivity. Professional-grade coaxial cables such as RG-58, RG-59, and RG-6 offer optimal compatibility with standard BNC connectors.
Cable Preparation and Stripping Techniques
Proper cable preparation forms the foundation of successful connections. Professional stripping techniques require precise measurements and careful execution to avoid damaging internal conductors.
The stripping process begins with measuring cable length, adding extra material for adjustments13. Coaxial cable strippers provide consistent results by cutting outer jacket, braided shield, and dielectric insulation to specific dimensions. Standard BNC connectors typically require 1/4-inch center conductor exposure with 1/4-inch dielectric and braid preparation.
Manual stripping techniques using utility knives require extreme caution to prevent center conductor damage. Professional installers recommend specialized stripping tools for consistent results and reduced installation time13.
Connection Methods: Crimping versus Soldering
Two primary connection methods serve different application requirements. Crimping provides faster installation with consistent results, while soldering offers superior electrical performance for critical applications.
Advantages of Crimping
Crimping advantages include simplified installation procedures, consistent mechanical connections, and environmental resistance. The process creates air-tight seals preventing moisture intrusion and contamination. Professional crimping tools ensure proper compression ratios for reliable long-term performance.
Advantages of Soldering
Soldering techniques provide superior electrical conductivity and permanent connections. However, this method requires skilled technicians and specialized equipment including soldering irons, flux, and appropriate solder materials. Soldered connections excel in high-frequency applications where minimal signal loss is critical.
Step-by-Step Installation Process
Professional installation follows systematic procedures to ensure optimal results. The process begins with cable preparation, followed by connector assembly and final testing.
Initial preparation involves sliding the ferrule onto the cable before stripping operations. Strip the outer jacket 1/2 inch from the cable end, exposing the braided shield. Trim the braided shield to 1/4 inch while maintaining clean edges. Remove inner insulation 3/16 inch from the center conductor.
Connector assembly requires careful attention to component alignment. Insert the center conductor into the connector pin, ensuring proper seating. Slide the connector body over the center pin and under the braided shield. Position the ferrule over the braid and crimp securely using appropriate tools.
Impedance Matching and Signal Integrity
Proper impedance matching prevents signal reflections and maintains transmission quality. Standard RF systems utilize 50-ohm impedance for optimal power transfer and minimal signal loss. Mismatched impedances create standing wave ratios that degrade system performance.
The bnc to coaxial cable adapter serves as an interface between different impedance systems. Professional installations require careful consideration of impedance specifications to maintain signal integrity. Adapters enable connection between 50-ohm and 75-ohm systems when properly configured.
Common Installation Challenges and Solutions
Installation issues frequently arise from improper preparation or component mismatches. Signal loss problems typically result from loose connections, damaged cables, or interference from nearby electronic equipment. Professional troubleshooting begins with visual inspection of connections and cable integrity.
Compatibility problems occur when connector specifications don’t match equipment requirements. Impedance mismatches between different ohm ratings create reflection issues and signal degradation. Professional installers verify compatibility before installation to prevent system failures.
Corrosion represents a significant long-term challenge, particularly in outdoor installations. Regular inspection and maintenance using appropriate contact cleaners extend connector life. Weatherproof housings provide additional protection in harsh environments.
The bnc coaxial cable adapter serves as an interface between different impedance systems. Professional installations require careful consideration of impedance specifications to maintain signal integrity. Adapters enable connection between 50-ohm and 75-ohm systems when properly configured.
Testing and Verification Procedures
Professional installations require thorough testing to verify connection quality and system performance. Continuity testing ensures proper electrical connections between center conductor and shield. Signal quality measurements identify potential issues before system deployment.
Advanced testing procedures include impedance measurements and frequency response analysis. Professional test equipment provides accurate measurements across operating frequency ranges. BNC Adapter configurations enable connection of test equipment to various system interfaces.

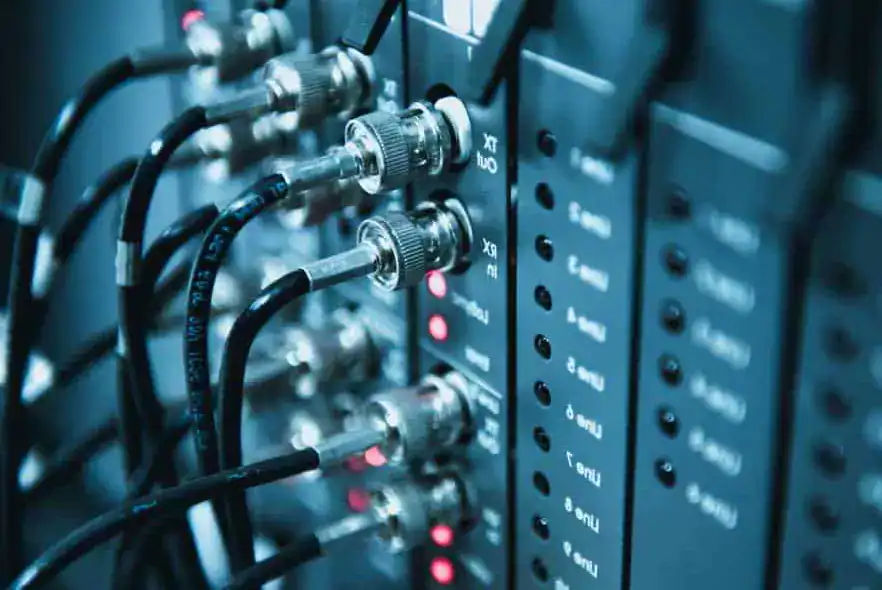

Professional Applications and Use Cases
In industrial and commercial environments, BNC cable systems deliver dependable signal transmission across a wide range of professional applications. When users search define bnc connector, they find it described as a compact, quick-connect RF termination for coaxial cables that test and measurement equipment depends on for accurate signal acquisition and analysis. Oscilloscopes, spectrum analyzers, and network analyzers routinely use BNC interfaces to guarantee the precision required for critical measurements, and our solutions simplify connecting bnc cable, installation, and maintenance for OEMs, system integrators, and enterprise test labs seeking robust, high-integrity signal paths.
BNC cable systems from our integrated trade and manufacturing operation deliver the dependable performance that professional users demand bayonet neill concelman bnc connector plays a central role in ensuring secure, quick‑lock connections across a variety of fields Our precision‑engineered connectors support test and measurement instruments such as oscilloscopes, spectrum analyzers and network analyzers to capture and analyze signals with exceptional accuracy In broadcast and telecommunications environments these connectors enable high‑frequency signal distribution with consistent impedance matching for optimal picture and data integrity Video production professionals benefit from low‑loss transmission and robust mechanical stability while medical device manufacturers rely on these connectors for critical patient monitoring and diagnostic systems that require fault‑free operation Combining our end‑to‑end manufacturing expertise with rigorous quality control guarantees each bayonet neill concelman bnc connector delivers the reliability and performance B‑end clients expect.
Maintenance and Long-Term Performance
Regular maintenance ensures continued performance and extends connector life. Professional maintenance schedules include periodic inspection, cleaning, and replacement of worn components. Environmental factors such as moisture, temperature fluctuations, and mechanical stress affect connector reliability.
Preventive maintenance practices include regular cleaning with appropriate contact cleaners and application of protective coatings. Professional installations benefit from scheduled inspections to identify potential issues before failures occur.
Professional bnc coaxial cable adapter installations require systematic approaches combining proper tools, techniques, and materials. Success depends on careful preparation, appropriate connection methods, and thorough testing procedures. Following professional standards ensures reliable performance and long-term system integrity across diverse applications and environmental conditions.
