Circulator with 18 dB lsolation from 3.3 GHz to 3.8 GHz, 50 Watts and SMA Female
SKU:
P/N:RC-AMAJJJ-0330-0380-01
The RC-AMAJJJ-0330-0380-01 is a circulator offering a forward and reverse power rating of 50 Watts at an operational frequency band of 3.3 to 3.8 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 18 dB of isolation.
ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems,and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line.
Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
Circulator with 12 dB lsolation from 2 GHz to 6 GHz, 50 Watts and SMA Female
SKU:
P/N:RC-AMAJJJ-0200-0600-01
The RC-AMAJJJ-0200-0600-01 is a high power circulator offering a forward and reverse power rating of 50 Watts at an operational frequency band of 2 to 6 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 12 dB of isolation.
ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems, and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line.
Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
High Power Circulator with 18 dB lsolation from 2 GHz to 4 GHz, 100 Watts and SMA Female
SKU:
P/N:RC-AMAJJJ-0200-0400-01
The RC-AMAJJJ-0200-0400-01 is a high power circulator offering a forward and reverse power rating of 100 Watts at an operational frequency band of 2 to 4 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 18 dB of isolation.
ZOMWAVE offers a wide variety of circulators to fit your needs. These unique devices enable two signals to use one channel. The classic use of this three port device is for the line/coax between an antenna and a transceiver, allowing the receive signal to come from the antenna (port 1) to the receiver (port 2) while the transmit signal goes from the transmitter (port 3) to the antenna (port 1). An isolator can be created by terminating one port into a matched load. These components can be used in radar transmitting and receiving, radar, amplifier systems and anything that requires isolation from a signal reflection and the ability to send signals in opposite directions down a single channel. These circulators feature excellent insertion loss, high isolation and reliability.
Circulator with 13 dB lsolation from 0.8 GHz to 2 GHz, 50 Watts and SMA Female
SKU:
P/N:RC-AMAJJJ-0080-0200-01
The RC-AMAJJJ-0080-0200-01 is a circulator offering a forward and reverse power rating of 50 Watts at an operational frequency band of 0.8 to 2 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 13 dB of isolation.
ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems, and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line.
Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
High Power Circulator with 16 dB lsolation from 690 MHz to 1000 MHz, 100 Watts and SMA Female
SKU:
P/N:RC-AMAJJJ-0069-0100-01
The RC-AMAJJJ-0069-0100-01 is a high power circulator offering a forward and reverse power rating of 100 Watts at an operational frequency band of 690 to 1000 MHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 16 dB of isolation.
ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems, and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line.
Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
50dB Fixed Attenuator, N Male to N Female, 2Watts, DC-18 GHz, Round, VSWR<1.4
SKU:
P/N: ATT02W50-18-NCJ-NCP-98
50dB Fixed Attenuator, SMA Male to SMA Female, 100Watts, DC-18 GHz, Round, VSWR<1.45
SKU:
P/N: ATT100W50-18-MAJ-MAP-98
ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT100W50-18-MAJ-MAP-98 is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 100 Watts. Available from 6 to 60 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.
6dB Fixed Attenuator, SMA Male to SMA Female, 100Watts, DC-18 GHz, Rectangular, VSWR<1.45
SKU:
P/N: ATT100W50-18-MAJ-MAP-99
ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT100W50-18-MAJ-MAP-99 is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 100 Watts. Available from 6 to 60 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.
50dB Fixed Attenuator, SMA Female to SMA Female, 100Watts, DC-18 GHz, Rectangular, VSWR<1.45
SKU:
P/N: ATT100W50-18-MAJ-MAJ-99
ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT100W50-18-MAJ-MAJ-99 is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 100 Watts. Available from 6 to 60 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.
50dB Fixed Attenuator, SMA Male to SMA Female, 50Watts, DC-18 GHz, Rectangular, VSWR<1.45
SKU:
P/N: ATT50W50-18-MAJ-MAP-98
ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT50W50-18-MAJ-MAP-98 is SMA coaxial fixed attenuator operating DC to 18 GHz and rated for 50 Watts. Available from 3 to 50 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.

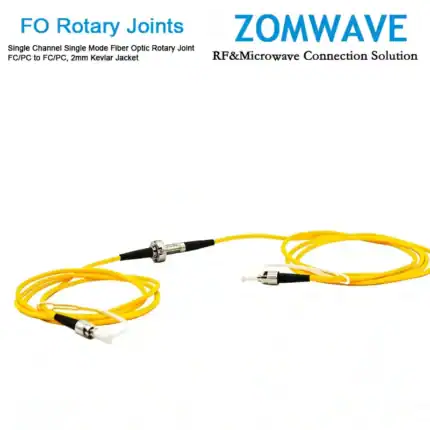

Single Channel Single Mode Fiber Optic Rotary Joint, FC/PC to FC/PC, 2mm Kevlar Jacket
SKU:
P/N:RJ-FO-01FCPDK-SM-01
The ZOMWAVE RJ-FO-01FCPDK-SM-01 is a single-channel fiber optic rotary joint designed for critical high-bandwidth data and video transmission in rotating systems. Engineered to exacting telecommunications standards, it ensures reliable signal integrity in demanding applications including aerial surveillance platforms, industrial robotic arms, medical imaging systems, and high-definition broadcast equipment.
This unit features a robust FC/PC to FC/PC interface, providing a stable and low-reflection optical connection. The assembly is built with a durable 2mm Kevlar-reinforced cable for superior tensile strength and flex life in dynamic environments. Key performance specifications include operation across the full single-mode window from 1310 nm to 1550 nm and an excellent insertion loss of 3.5 dB Max, maximizing signal strength and system reach for superior performance.
SP6T Electromechanical Relay Latching Switch, Unterminated DC to 12.4 GHz, up to 170W, 24V, Positive Common, N Female Type
SKU:
P/N:SWS6T-NC12G24V-L3J2-01
The SWS6T-NC12G24V-L3J2-01 is a Single Pole Six Throw (SP6T) electromechanical relay switch that operates across a wide frequency range of DC to 12.4 GHz and can handle up to 170W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.5 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports N Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
