75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length
75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length
75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length
Click to enlarge
75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length
75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length
75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length

75ohm BNC Female RA Thru Hole, .315 inch x .059 inch Hole,27mm Connecotor Length

$2.83

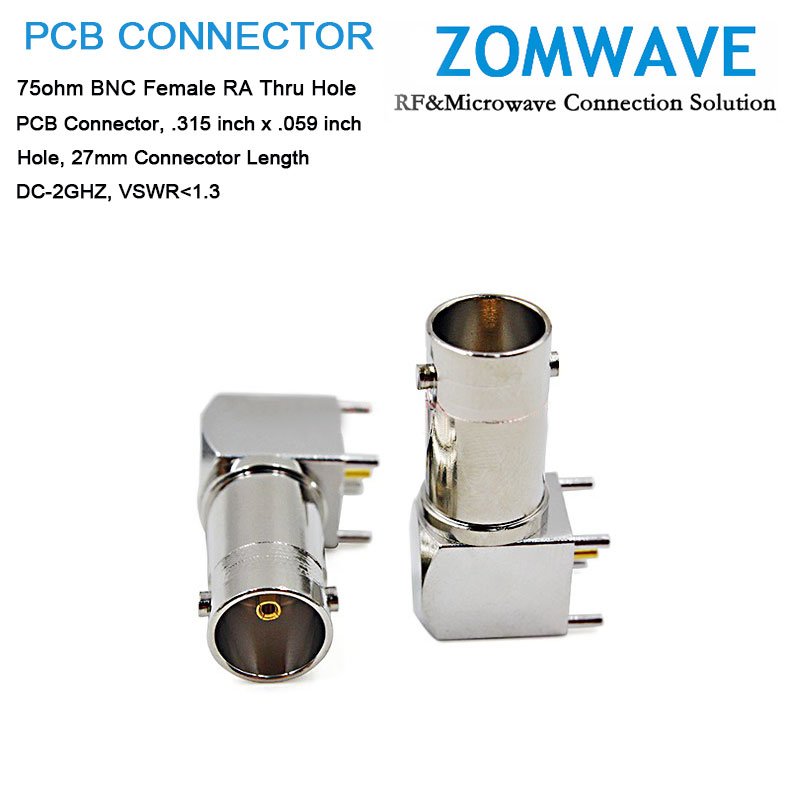

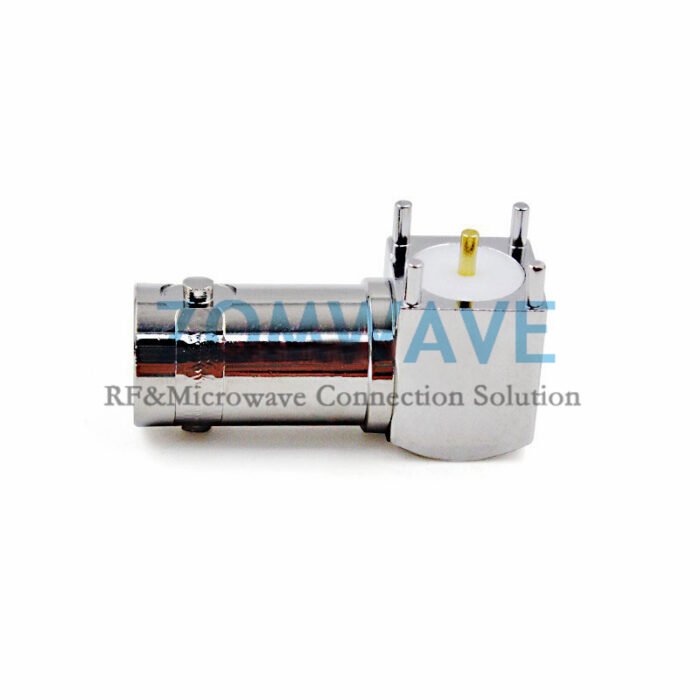

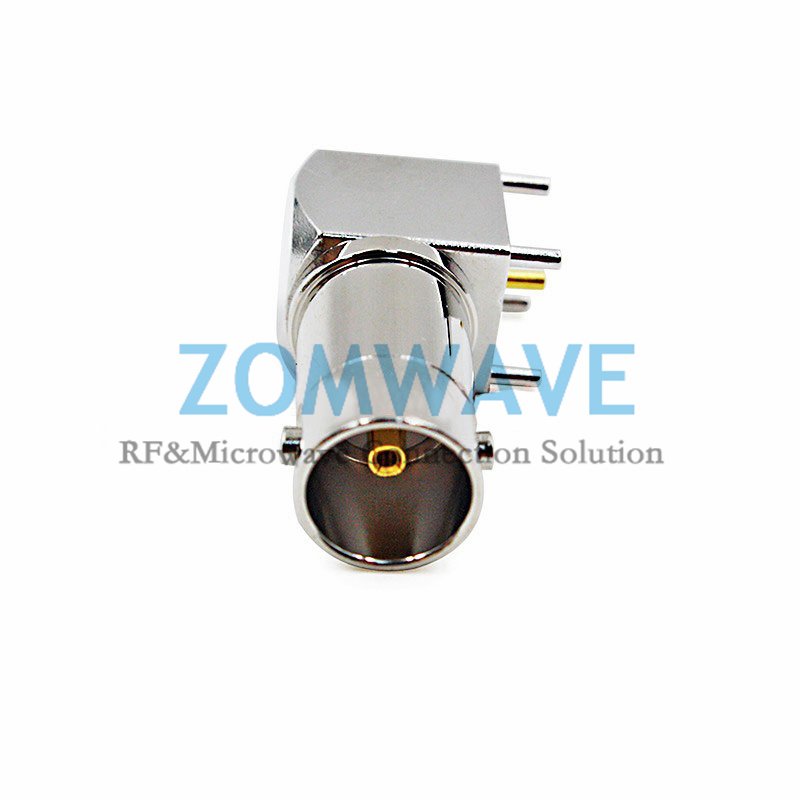

5 Days Ship Out. Negotiated Prcie. ZOMWAVE 75ohm BNC Female Right Angle Thru Hole PCB Connector, .315 inch x .059 inch Hole, 27mm Connecotor Length connector has an interface type of thru hole and a 75 Ohm impedance. BNC female connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 2 GHz. Our BNC female pcb connector has a PTFE dielectric type and a VSWR of 1.3. ZOMWAVE 75ohm BNC Female Right Angle Thru Hole PCB Connector, .315 inch x .059 inch Hole, 27mm Connecotor Length connector has a brass body with gold plating. Our SMA connector uses beryllium copper contact. This BNC female pcb RF connector is RoHS and REACH compliant. Our BNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment.

Quantity Price Discount
1-9 $2.83 0%
10-49 $2.72 4%
50-99 $2.60 8%
100+ $2.38 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:BNJR-NMSS-PTHT-96
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series BNC
Connector Gender Female
Connector AngleRight Angle
Connector Mount MethodNone
Attachment MethodSolder
Interface TypeThru Hole
Material
Centre ContactPhosphorus-Copper Gold Plated
BodyBrass, Nickel Plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)4GHZ
VSWR≤1.25:1 (DC 0~4GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

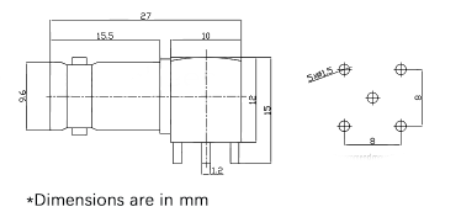

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
