ZOMWAVE’s right-angle SMA male-to-female adapter enables precise interconnection of RF components in space-constrained environments. This 50-ohm brass adapter features gold-over-nickel plating, delivering cost-effective performance with excellent VSWR across its 6 GHz frequency range, while ensuring reliable subsystem connections through enhanced mechanical stability and consistent impedance matching. Its precision-engineered 90-degree design maintains signal integrity and minimizes cable stress, accommodating tight clearance requirements in high-density electronic systems, test equipment, and communications infrastructure. These adapters provide superior phase stability, temperature resilience, and durability for demanding applications such as 5G infrastructure, aerospace systems, and automated test environments, and are engineered for reliable performance in vibration-prone settings. Supporting both prototype development and production deployment, they offer low insertion loss and high power-handling capability, effectively addressing high-frequency signal transmission challenges. By ensuring secure connections and simplifying complex routing, this SMA male to female adapter reduces system downtime in critical operations, enhances overall reliability and efficiency, and extends the service life of interconnected cable assemblies.

Configuration
Adapter Series 1	Type N
Adapter Gender 1	Male
Impedance 1	75Ω
Adapter Mount Method1	None
Body Materials and Plating 1	Stainless Steel
Adapter Series 2	SMA
Adapter Gender 2	Female
Impedance 2	50Ω
Adapter Mount Method 2	None
Body Materials and Plating 2	Stainless Steel
Adapter Angle	Straight
Electric Specifications
Frequency Range(From DC)	6GHz
VSWR	To be defined
Insertion Loss	5.90dB±0.5dB Max
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

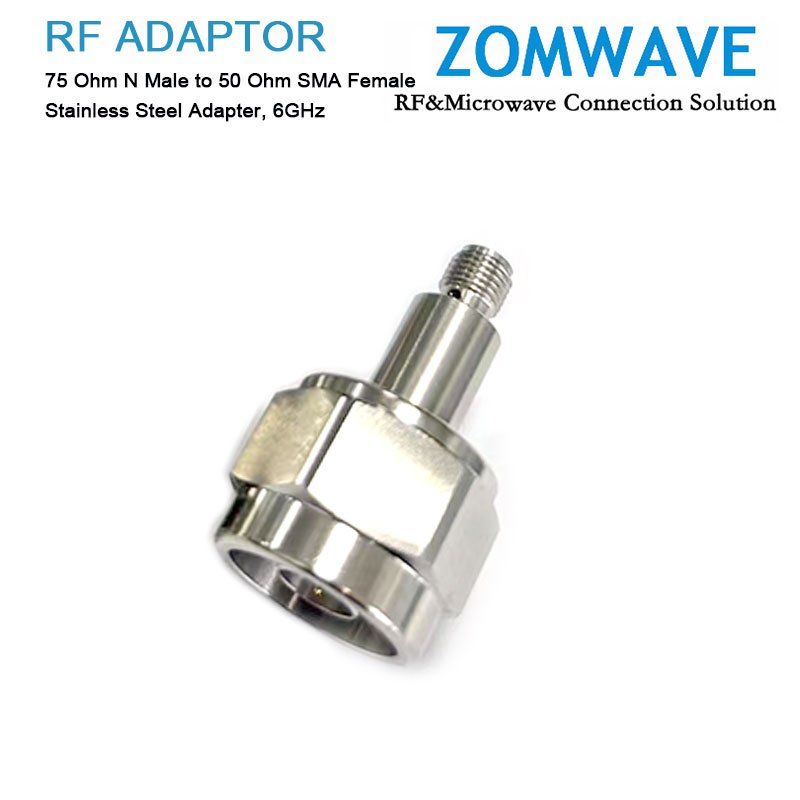

75 Ohm N Male to 50 Ohm SMA Female Stainless Steel Adapter, 6GHz
