3dB Fixed Attenuator, SMA Male to SMA Female, 20Watts, DC-26.5GHz, VSWR
Click to enlarge

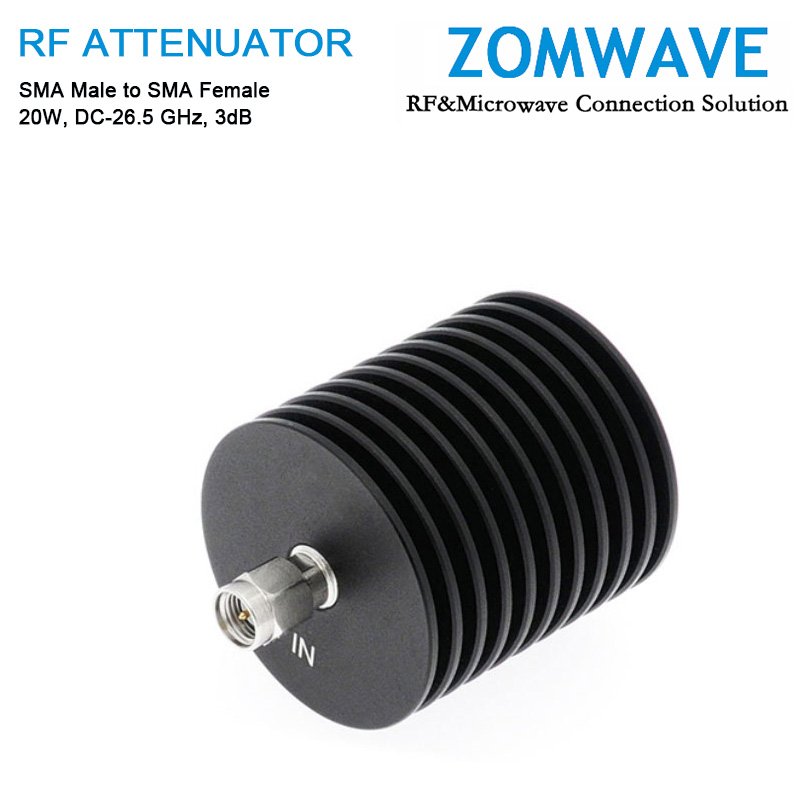

3dB Fixed Attenuator, SMA Male to SMA Female, 20Watts, DC-26.5GHz, VSWR<1.35

$246.61

ZOMWAVE coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications. ATT20W03-26-MAJ-MAP-99 is SMA coaxial fixed attenuator operating DC to 26.5 GHz and rated for 20 Watts. Available from 3 to 40 dB. RoHS Compliant. ISO Certified. Shipped in 10days with small quantities.

Quantity Price Discount
1-9 $246.61 0%
10-49 $236.75 4%
50-99 $226.88 8%
100+ $212.08 14%

   200+                                     Call US

   Get a lower discount price

SKU: ATT20W03-26-MAJ-MAP-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Series 2SMA
Connector Gender 2Female
Body Materials and PlatingStainless Steel Passivated
Heat SinkBlack anodized aluminum
DirectionUnidirectional, SMA male input to SMA female output
Electric Specifications
Impedance50ohm
Frequency Range(From DC)26.5GHz
VSWR≤1.35:1
Attenuation3dB
Attenuation Accuracy±0.6dB
Input Power, CW 20W@25°C
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-55°C~+125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

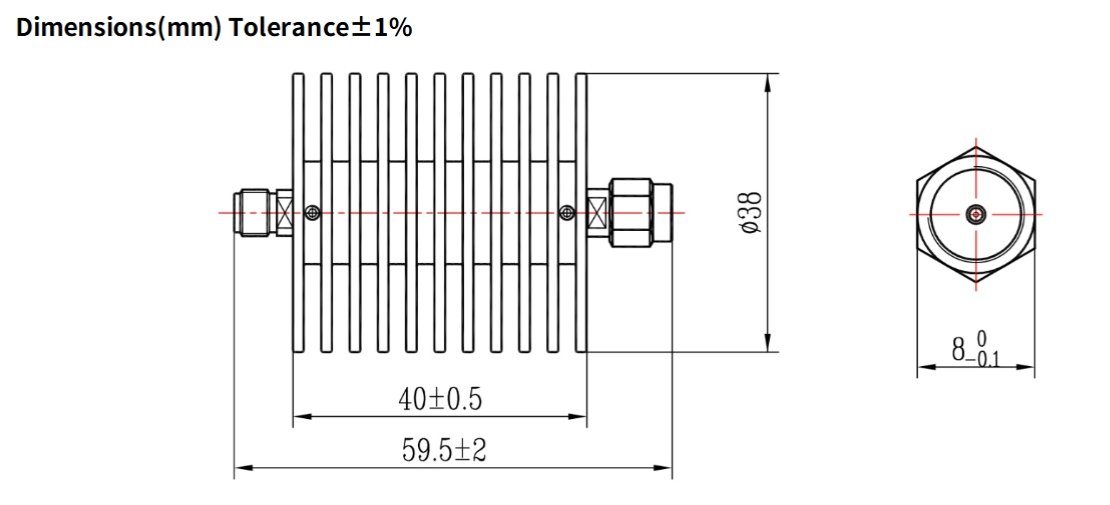

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
