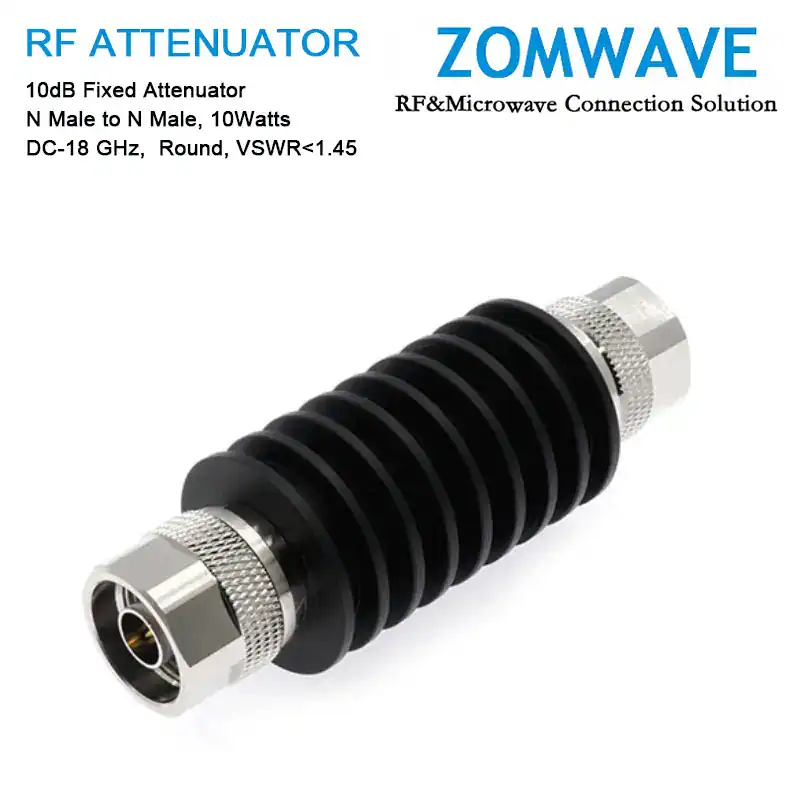

Key Specifications
| Configuration | |
| Connector Series 1 | N |
| Connector Gender 1 | Male |
| Connector Series 2 | N |
| Connector Gender 2 | Male |
| Body Materials and Plating | Stainless Steel Passivated |
| Heat Sink | Black anodized aluminum |
| Direction | Bidirectional |
| Electric Specifications | |
| Impedance | 50ohm |
| Frequency Range(From DC) | 18GHz |
| VSWR | ≤1.45:1 |
| Attenuation | 10dB |
| Attenuation Accuracy | ±0.6dB |
| Input Power, CW | 10W@25°C |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 5~7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -55°C~+125°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |

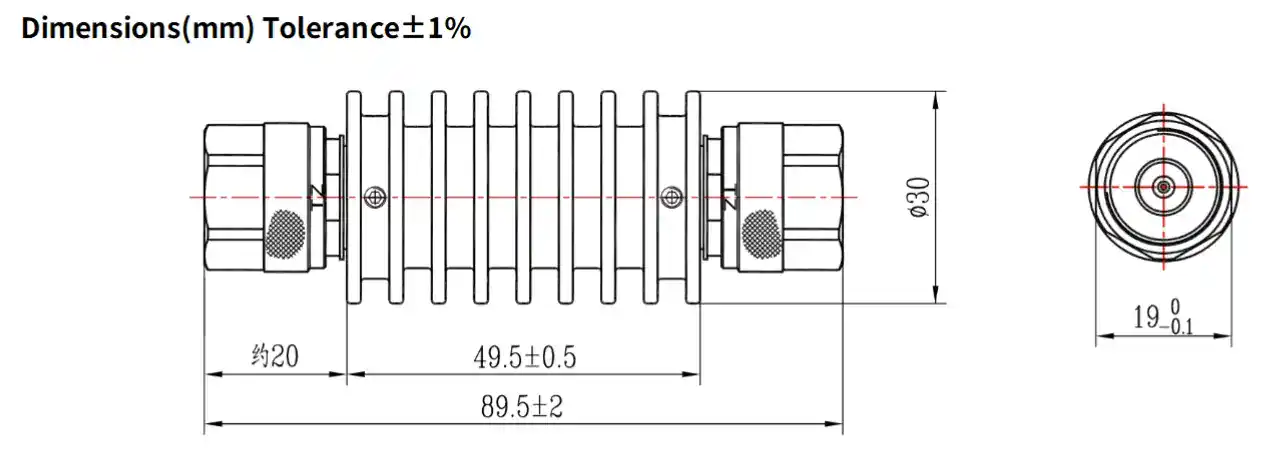

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
