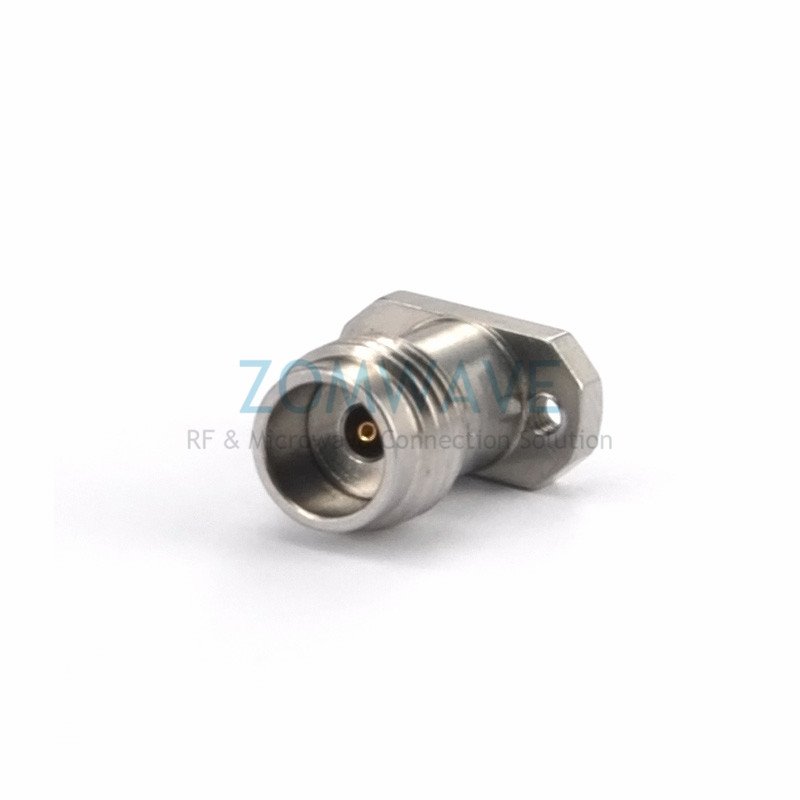

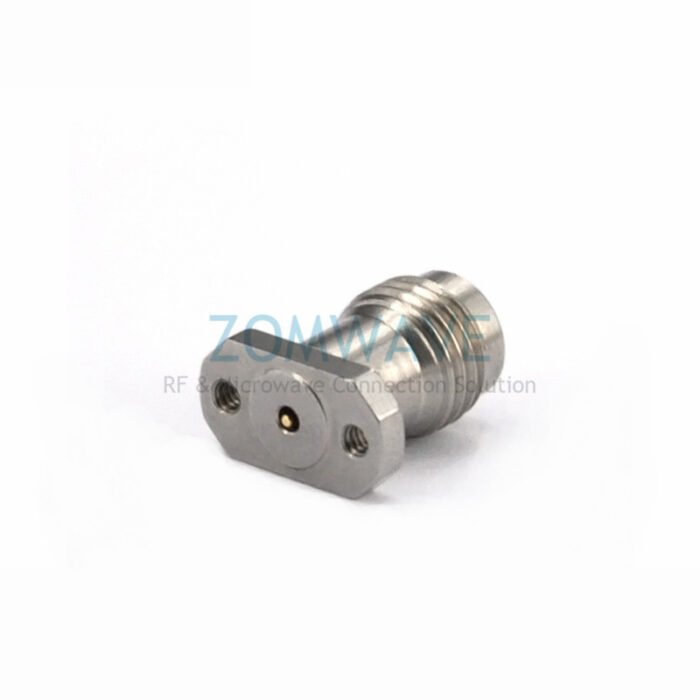

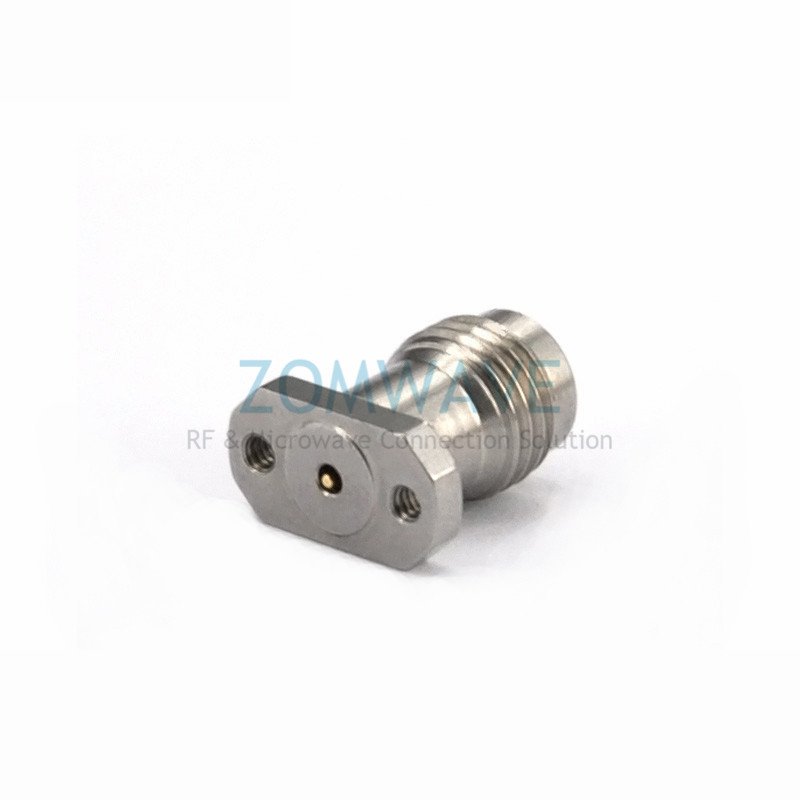

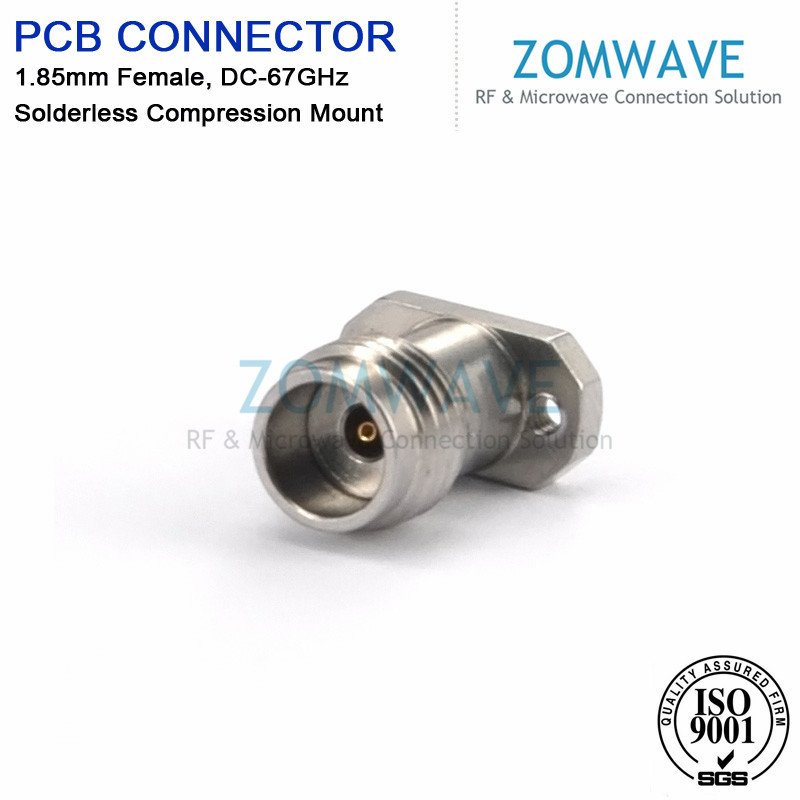

1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz
1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz
1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz
Click to enlarge
1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz
1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz
1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz

1.85mm Female Solderless PCB Compression Flange Mount Connector, 2 Hole , 67GHz

$58.33

The 1.85mm connector was designed for mode free operation through 65 GHz. The interface uses a mostly air-dielectric with a support bead that is set back in the body of the connector to reduce bead interaction in a mated pair. Like the 2.92mm and 2.4mm connector, the body has been designed to ensure that the outer conductors engage before the center conductors make contact. The 1.85mm interface uses an M7 thread and is compatible only with the 2.4mm interface. Zomwave supplies adapters to mate 1.85mm connectors to SMA and 2.92mm connectors.

Quantity Price Discount
1-9 $58.33 0%
10-49 $56.00 4%
50-99 $53.66 8%
100+ $49.00 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:VCJS-FLTT-PTLK-99
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration

Connector Series

1.85mm

Connector Gender

Female

Connector Angle

Straigth

Connector Mount Method

2 Hole Flange

Attachment MethodCompression
Interface TypeSolderless Vertical Launch
Materials
Centre ContactCuBe Gold Plated
Outer ContactStainless Steel
BodyStainless Steel
DielectricPEI
Electrical Specifications

Impedance

50 ohm

Frequency Range(From DC)

67GHz

VSWR≤1.25:1 (DC 0~67GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating

150 V(rms)

Dielectric Withstanding Voltage

500 V

Insulation Resistance

≥500 Mohm

Mechanical Characteristics

Mating Cycles

≥ 500 cycles

Mating Torque

5-7 in - lbs

Environmental Characteristics （RoHS Complliant)

Temperature Rating

-40°C ~ +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -40°C to +85°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.

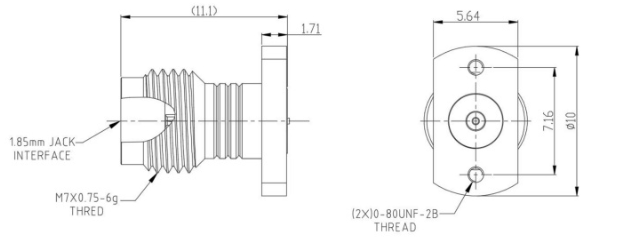

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
