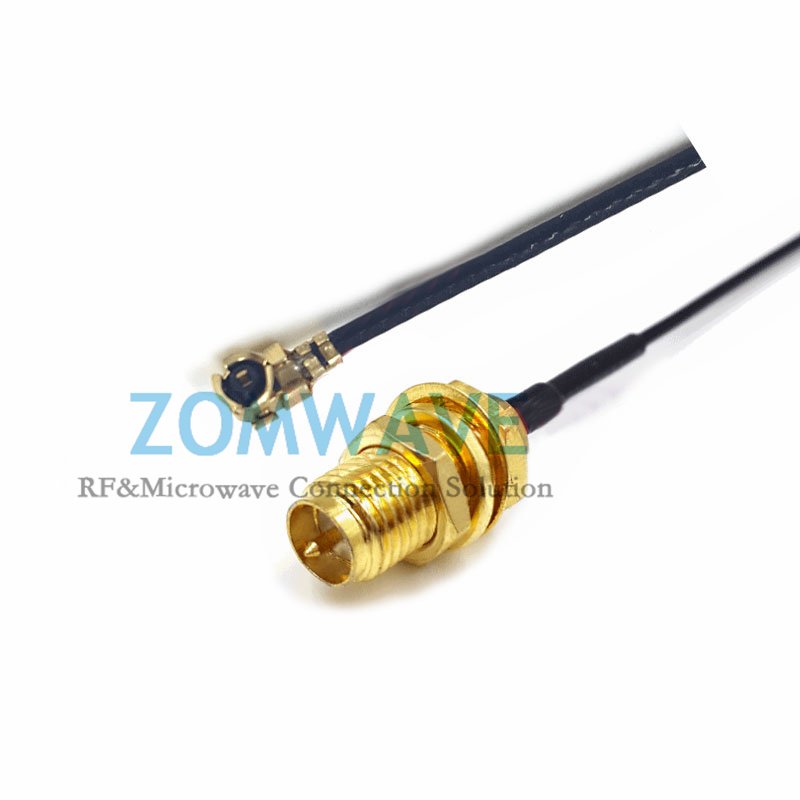

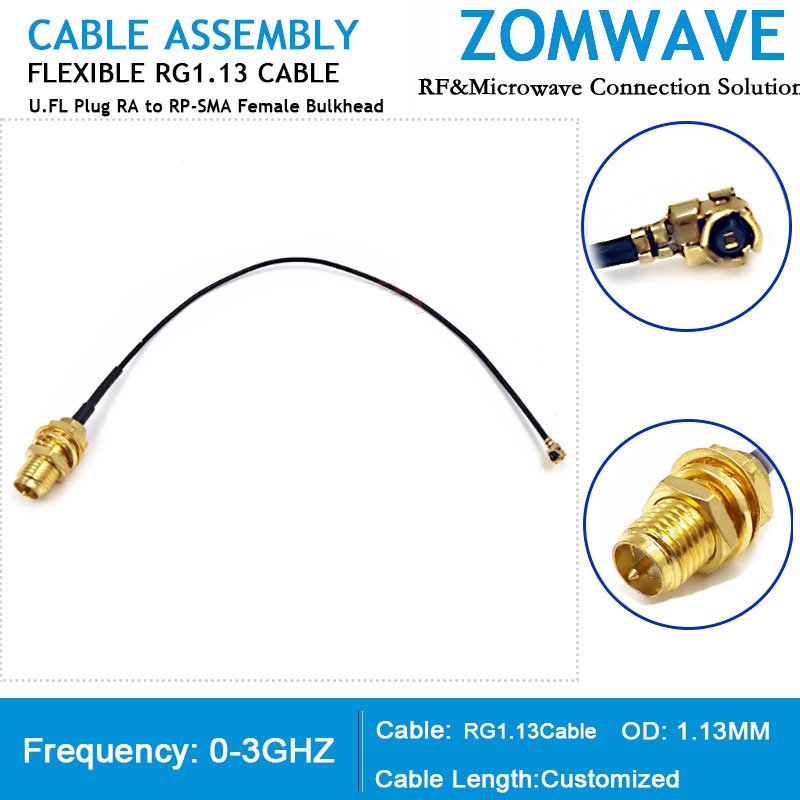

U.FL Plug Right Angle to RP-SMA Female Bulkhead, RG1.13 Cable, 3GHz
coax to coax cable and ipex cable | ZOMWAVE
Click to enlarge
U.FL Plug Right Angle to RP-SMA Female Bulkhead, RG1.13 Cable, 3GHz
coax to coax cable and ipex cable | ZOMWAVE

U.FL Plug Right Angle to RP-SMA Female Bulkhead, RG1.13 Cable, 3GHz

Price range: $2.63 through $3.51

ZOMWAVE offers the U.FL Plug Right Angle to RP-SMA Female Bulkhead, RG1.13 Cable as a high-reliability U.FL to SMA cable and U.FL coaxial cable option with no MOQ, 5-day shipping out, and 100% fully tested to ensure high quality. Our RG178 flexible coax is 50 Ohm with a PTFE dielectric, and RG1.13 coax features a 0.072-inch FEP jacket, silver-plated copper-clad steel center conductor, low-loss PTFE dielectric, and tin-overcoated copper shield braiding that minimizes signal leakage and reduces EMI for cleaner links. Connectors use brass hardware with a nickel-plated coupling nut and gold-plated connector body for reliable mating and longer service life. Rated to 3 GHz with VSWR less than or equal to 1.50 to 1 and a wide operating temperature range, these preterminated, length-matched assemblies simplify installation, cut assembly time, reduce inventory complexity, and lower total cost of ownership while supporting automobiles, broadband industry 4.0, instrumentation, medical, military, quantum computing, smart agriculture, and 5G wireless deployments. Variations of IPEX UFL assemblies can be customized and are part of a catalog of over 40,000 RF microwave and millimeter wave components to speed procurement and accelerate system readiness.
Quantity Price Discount
1-9 $2.63 0%
10-49 $2.52 4%
50-99 $2.42 8%
100+ $2.21 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36in
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1U.FL
Connector Gender 1Plug
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Copper Alloy, Gold Plated
Connector Series 2RP-SMA
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Body Materials and Plating 2Brass, Gold Plated
Cable Type RG1.13
Electric Specifications
Impedance50ohm
Frequency Range(From DC)3GHz
VSWR≤1.50:1 (DC 0~3GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 30 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricFEP
JacketFEP
Jacket Diameter(mm)1.13±0.05
Min. Bending Radius(mm)4
Shielding Effect(dB)>70
Weight(kg/km)2 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
12.20
23.10
33.80
44.40
54.90
65.4

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
