Quantity

Price

Discount

1-9

$3.67

10-49

$3.52

50-99

$3.38

100+

$3.08

16%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

ZOMWAVE’s right-angle SMA male to female adapter enables precise interconnection of RF components in space-constrained environments and the sma male to sma female 90 degree adapter variant provides a compact 50 ohm brass solution with gold-over-nickel plating that balances cost and conductivity while delivering excellent VSWR across a 6 GHz band and ensuring reliable subsystem connections through enhanced mechanical stability and consistent impedance matching; its precision 90 degree geometry preserves signal integrity and minimizes cable stress for tight clearance requirements in high density electronic systems test equipment and communications infrastructure, while offering superior phase stability, temperature resilience and durability for demanding uses such as 5G infrastructure, aerospace systems and automated test environments, and engineered for dependable performance in vibration-prone settings these adapters support prototype development and production deployment with low insertion loss, high power handling, optional phase-matched pairs and lot traceability, simplifying routing, reducing assembly time, lowering maintenance needs and extending the service life of interconnected cable assemblies while also easing PCB layout constraints and improving EMI control.

ZOMWAVE’s SMA female to SMA female adapter delivers reliable, high-performance connectivity for coaxial systems. It is a practical rf sma adapter for precision RF design and test setups. This 50 ohm straight-body connector is built from brass with gold-over-nickel plating. This ensures strong corrosion resistance, low insertion loss, and stable contact performance under vibration and shock. Rated to 6 GHz with excellent VSWR, it preserves signal integrity, reduces reflection and intermodulation, and supports cleaner measurements in telecom and laboratory applications. Its consistent impedance, threaded mating structure, and long mating life reduce wear and minimize maintenance. These features keep phase performance stable across temperature changes in dense assemblies. With MIL-grade mechanical and environmental durability and RoHS compliance, the connector operates from -40°C to +125°C. RF test reports and available 3D CAD help shorten integration time, lower downtime, and improve sourcing efficiency for production schedules. The voltage rating and insulation resistance meet demanding system requirements. Quick 5-day ship out, tiered pricing, customization support, and responsive technical service make deployment easier for antenna networks, VNA test environments, and compact PCB-to-board connections.

Configuration
Connector Series 1	SMA
Connector Gender 1	Male
Connector Body Material 1	Brass Gold Plated
Adatper Mount Method 1	None
Connector Series 2	TNC
Connector Gender 2	Female
Connector Body Material 2	Brass,Nickel Plated
Adatper Mount Method 2	None
Adatper Angle	Straight
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	6GHz
VSWR	≤1.25 (DC 0~6GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	1000V
Insulation Resistance	≥5000Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

[email protected]

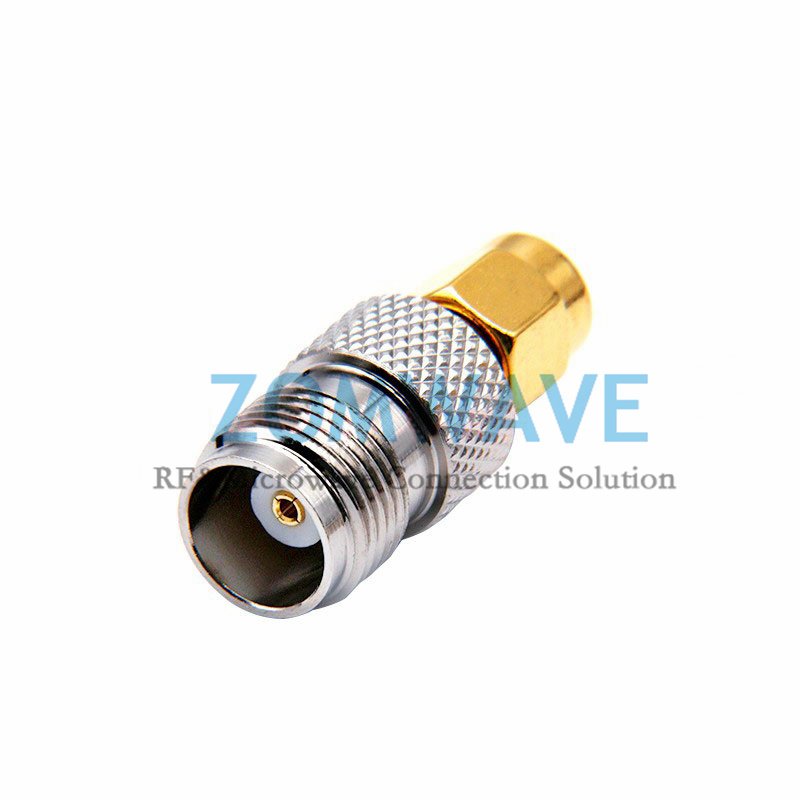

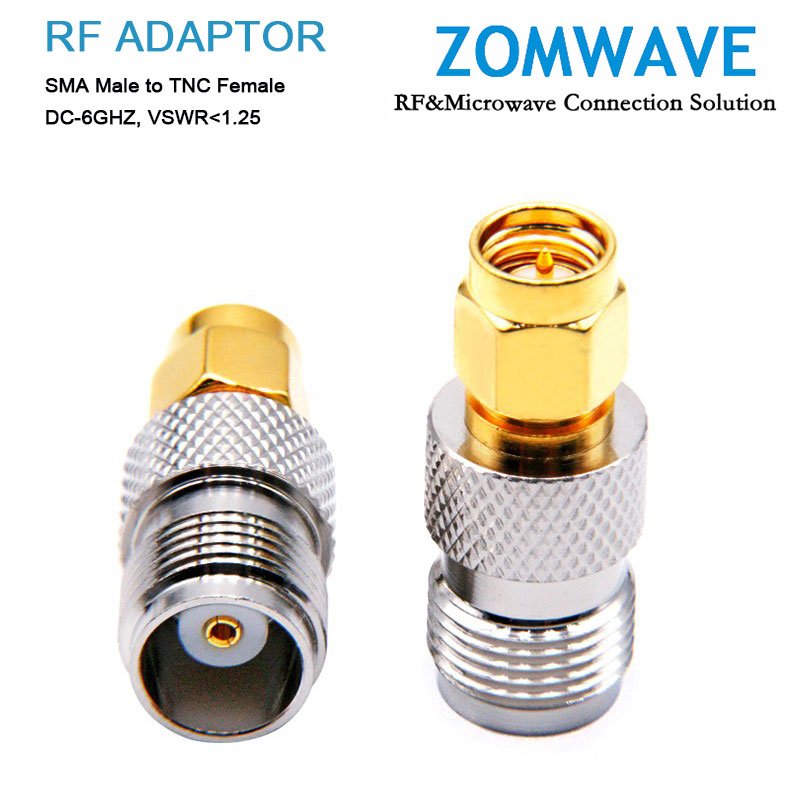

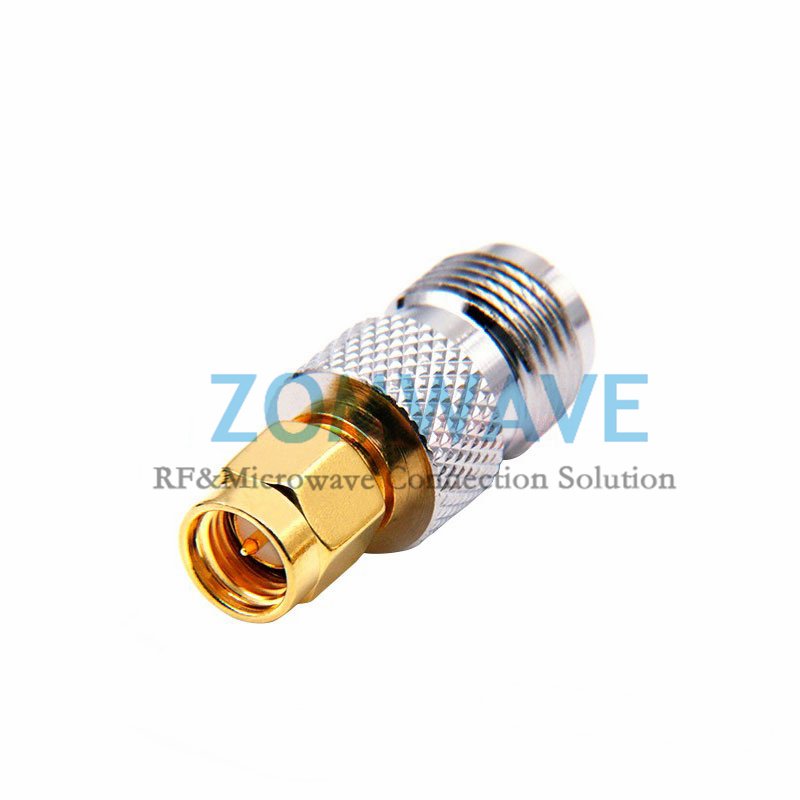

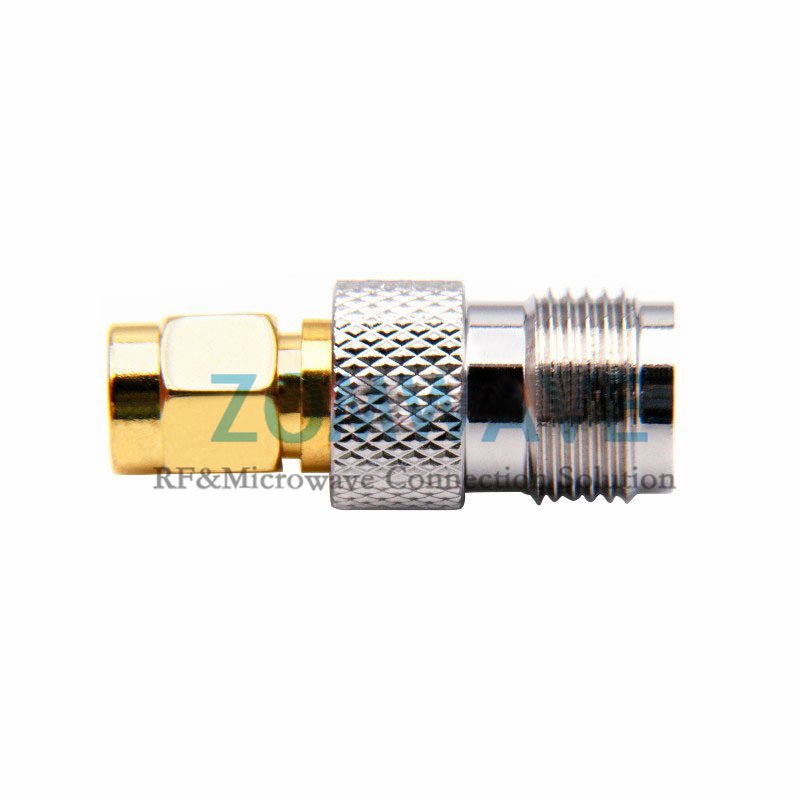

SMA Male to TNC Female Adapter, 6GHz

Key Specifications

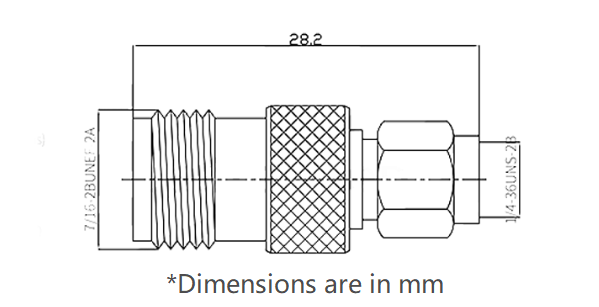

CAD Drawing
