SMA Female to SMC Female Adapter, 6GHz
SMA Female to SMC Female Adapter,6GHZ
SMA Female to SMC Female Adapter,6GHZ
SMA Female to SMC Female Adapter,6GHZ
Click to enlarge
SMA Female to SMC Female Adapter, 6GHz
SMA Female to SMC Female Adapter,6GHZ
SMA Female to SMC Female Adapter,6GHZ
SMA Female to SMC Female Adapter,6GHZ

SMA Female to SMC Female Adapter, 6GHz

$11.67

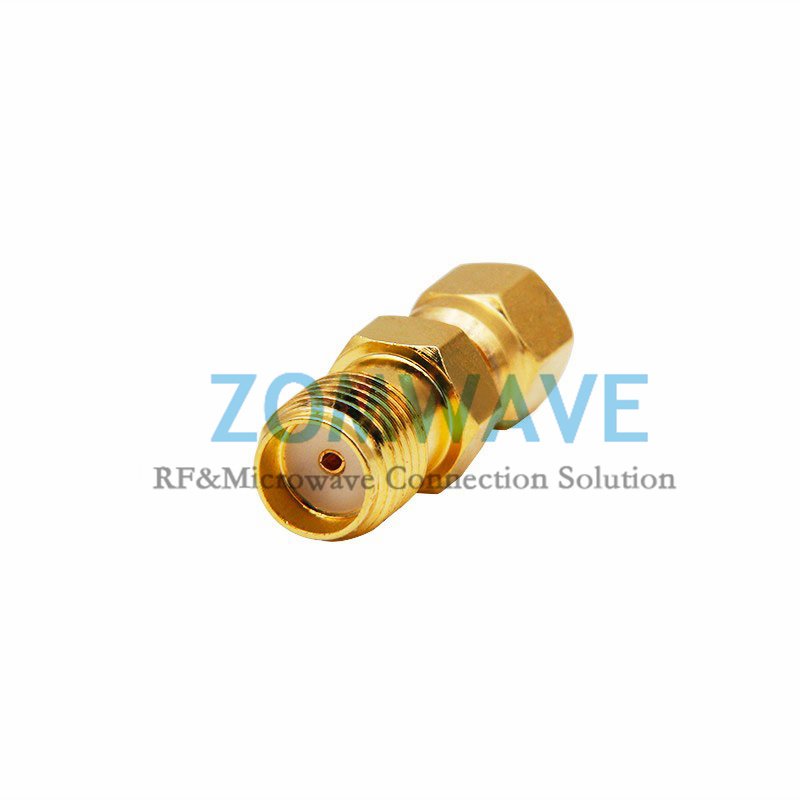

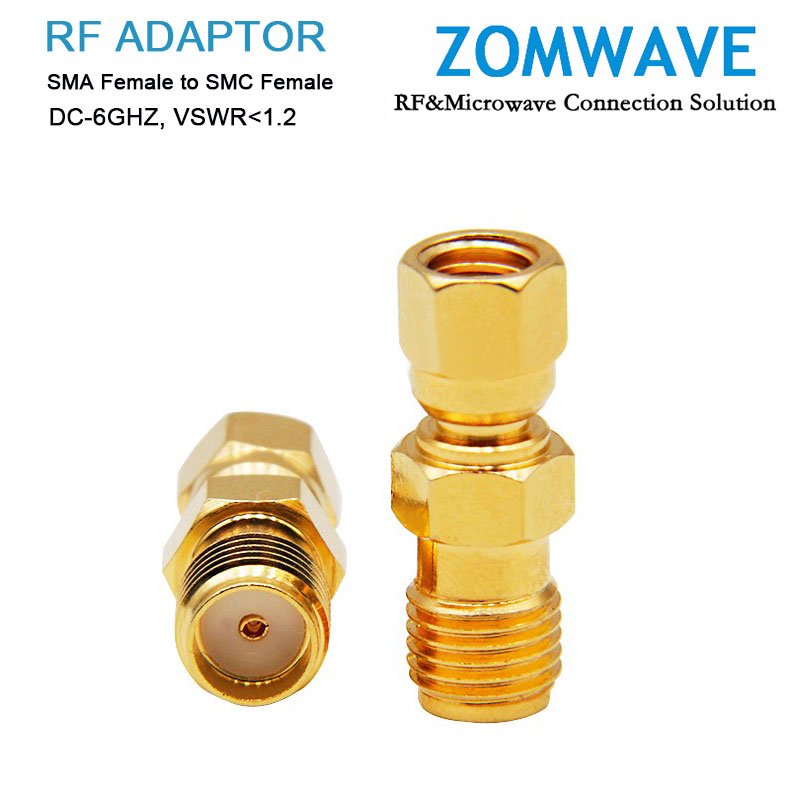

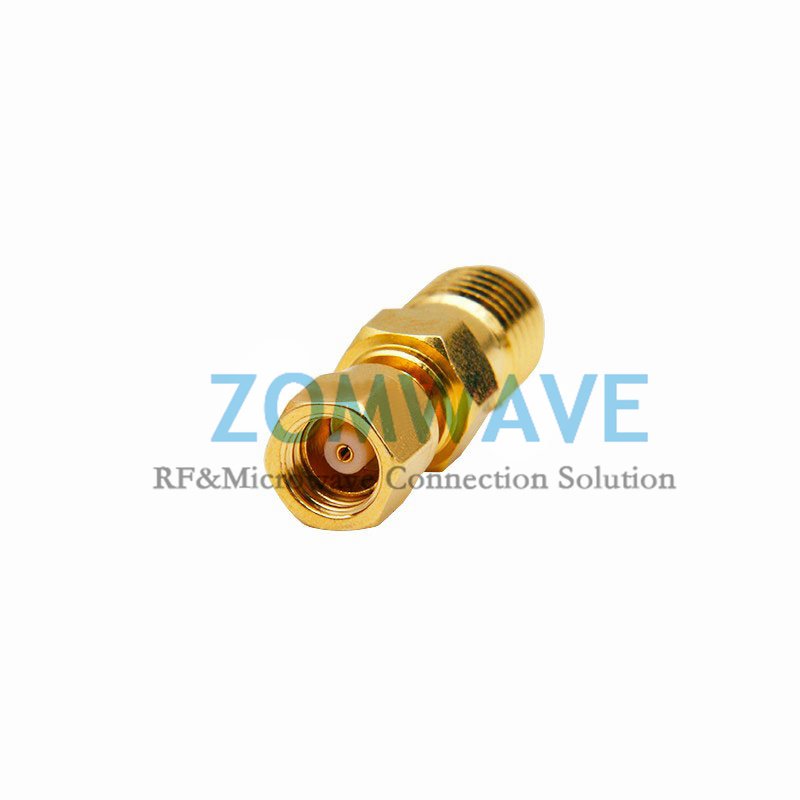

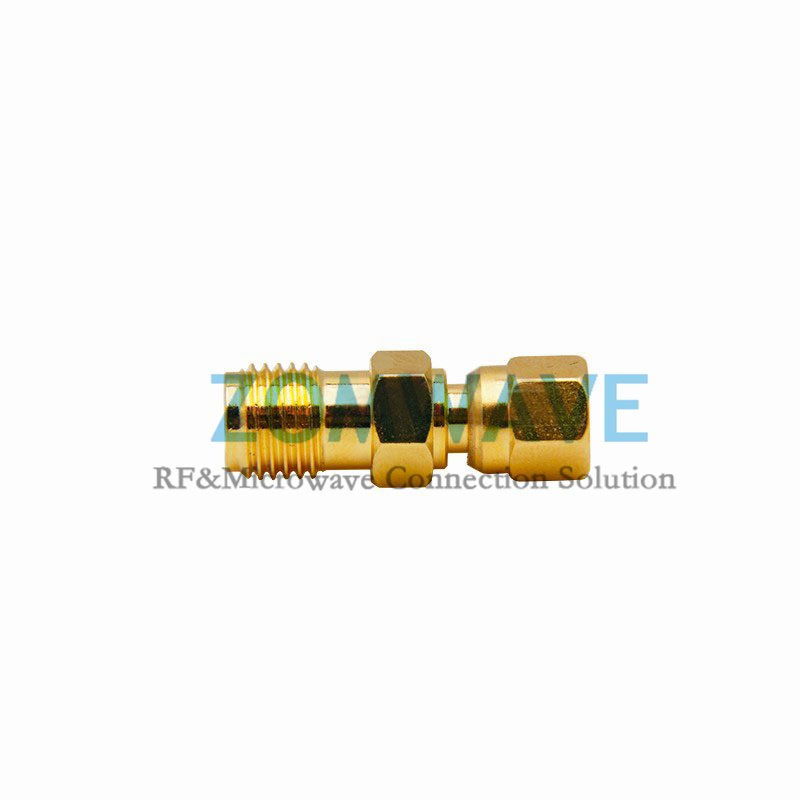

As a key SMC to SMA adapter solution, the SMA female to SMC female adapter provides a reliable 50-ohm coaxial interconnection for components and subsystems, ensuring seamless integration in professional RF setups up to 6 GHz. Built from gold-plated brass and nickel-plated brass, it delivers corrosion resistance, low insertion loss, and stable VSWR while addressing tight space constraints in testing, telecommunications, and industrial systems. These SMA-to-SMC adapters simplify installation, reduce SKU count and inventory complexity, and support optional phase-matched pairs and controlled torque for repeatable assembly. Enhanced EMI resilience and improved vibration tolerance protect signal integrity in harsh environments, while MIL-STD-grade construction and traceability options meet regulatory requirements, shorten validation cycles, lower maintenance costs, and accelerate time to market for complex system builds, helping you avoid costly rework and ensure predictable performance across production runs.



Quantity Price Discount
1-9 $11.67 0%
10-49 $11.20 4%
50-99 $10.74 8%
100+ $9.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJ-MCJ-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Brass, Gold Plated
Adatper Mount Method 1None
Connector Series 2SMC
Connector Gender 2Female
Connector Body Material 2Brass, Gold Plated
Adatper Mount Method 2None
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHz
VSWR≤1.25 (DC 0~6GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

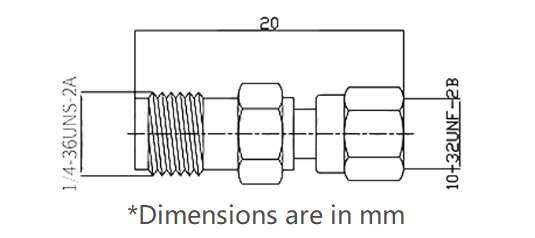

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
