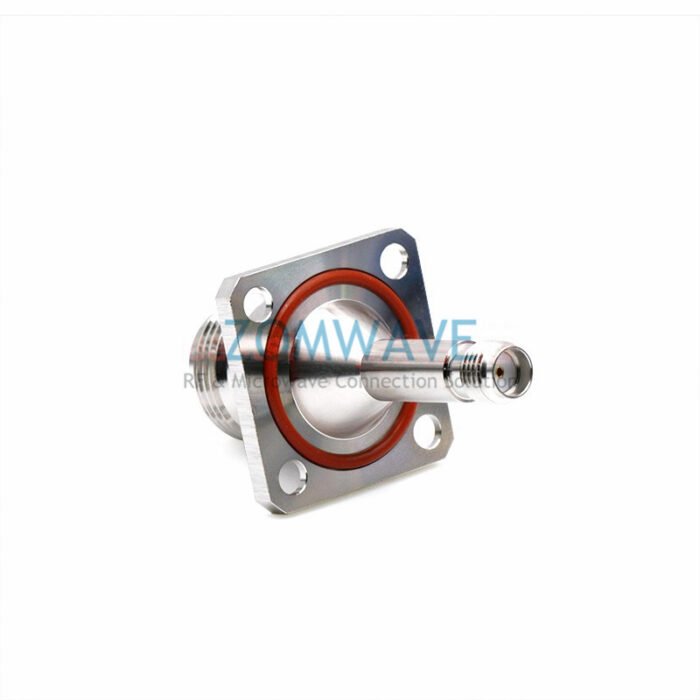

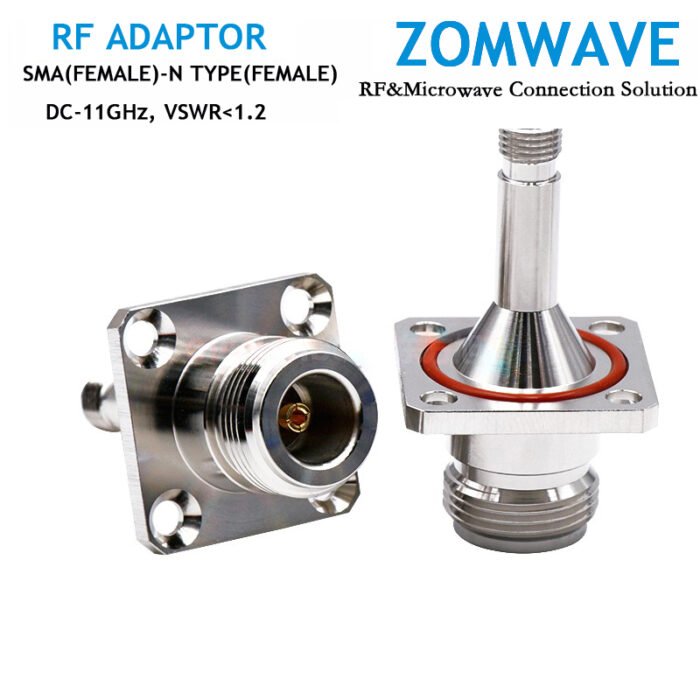

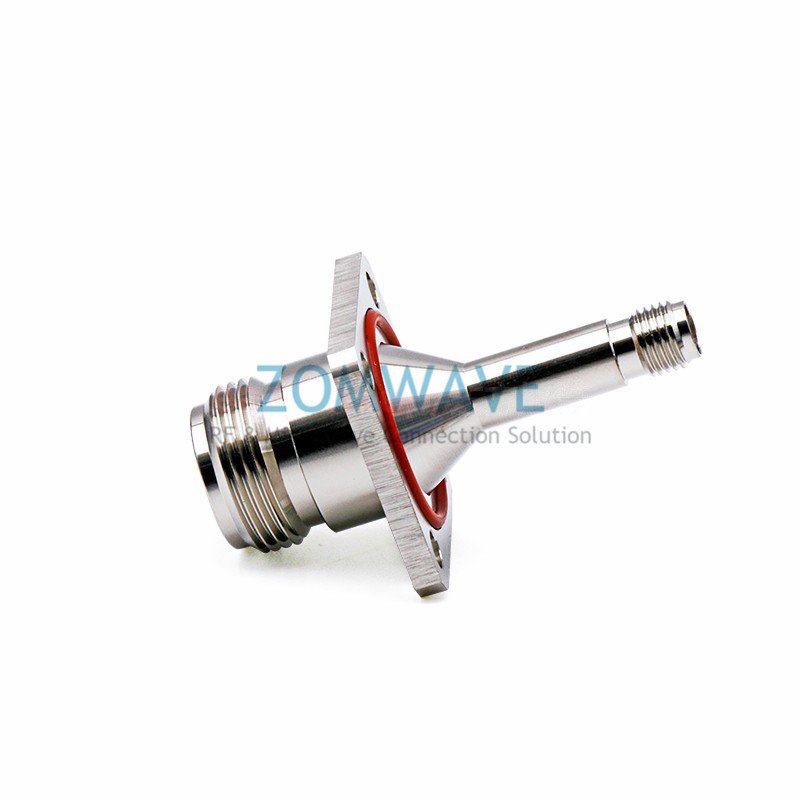

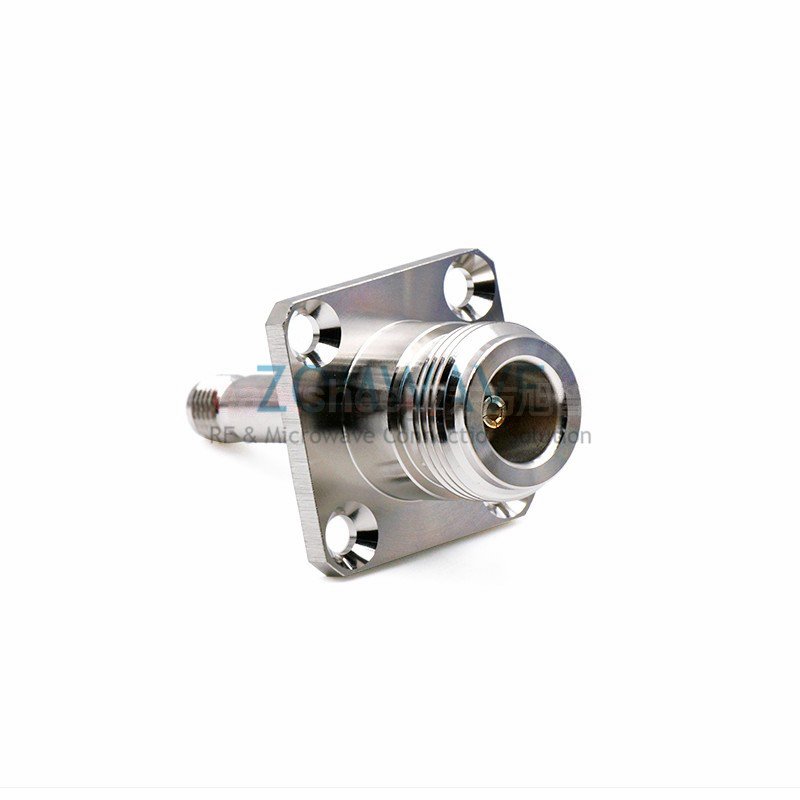

SMA Female to N Type Female Adapter, 4 Hole Flange, Extended Version Connector

$7.33

ZOMWAVE SMA female to n female adapter series delivers high precision interconnects, including SMA to N Type and N type female to female adapters, engineered for reliable RF performance and seamless system integration. These 50 ohm straight body adapters are machined from durable brass with premium gold and nickel plating to guarantee low insertion loss and superior VSWR up to 60 GHz. Select models include an SMA female 4-hole flange for secure mounting to prevent rotation under torque and solve vibration-related signal integrity issues in harsh environments. Additional benefits include improved thermal stability, enhanced EMI shielding, consistent mating cycles, and corrosion resistance for sustained field operation. Designed to bridge coaxial interfaces while maintaining precise impedance matching, they minimize reflection and power loss, simplify inventory and modular swaps, speed on-site repairs, and reduce qualification time for test labs, telecom, aerospace, and industrial automation applications.



Quantity Price Discount
1-9 $7.33 0%
10-49 $7.04 4%
50-99 $6.74 8%
100+ $6.16 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJ-NCJ-SFL-03
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Brass, Nickel Plated
Adatper Mount Method 14 Hole Flange
Connector Series 2N type
Connector Gender 2Female
Connector Body Material 2Brass, Nickel Plated
Adatper Mount Method 24 Hole Flange
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)11GHz
VSWR≤1.2 (DC 0~6GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

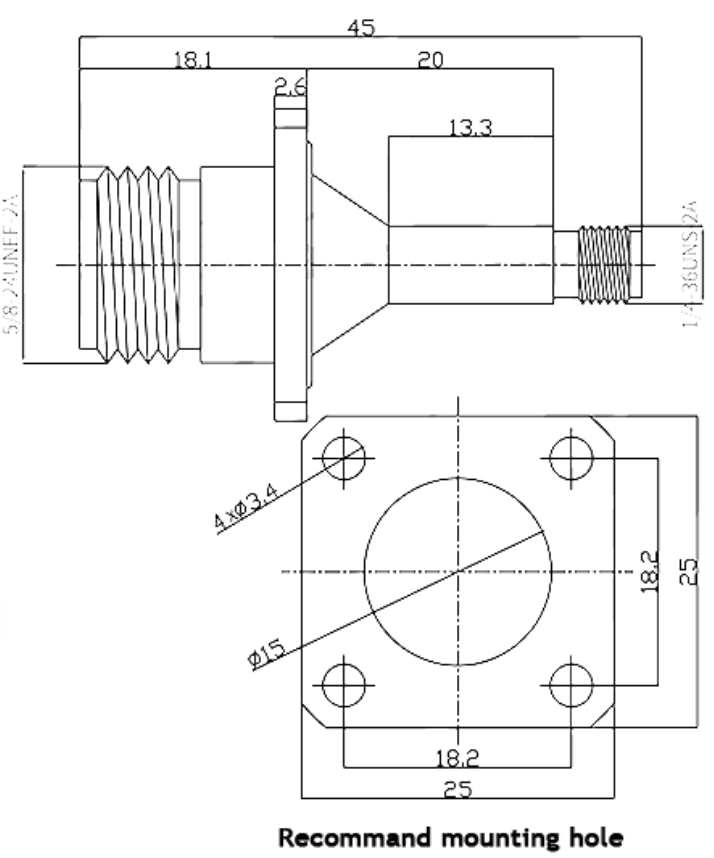

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
