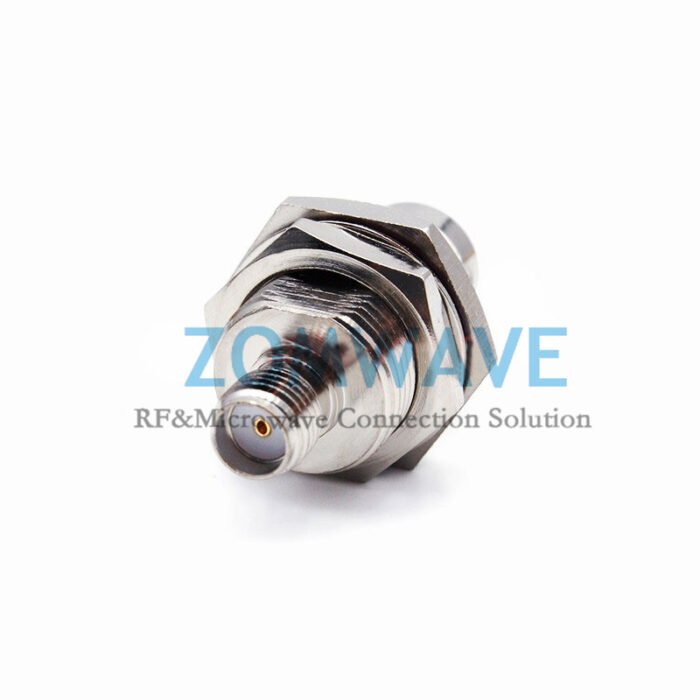

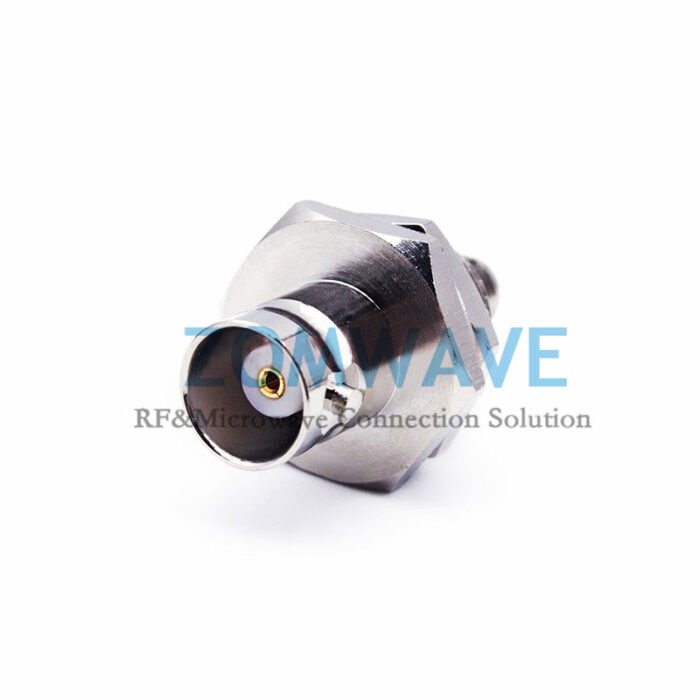

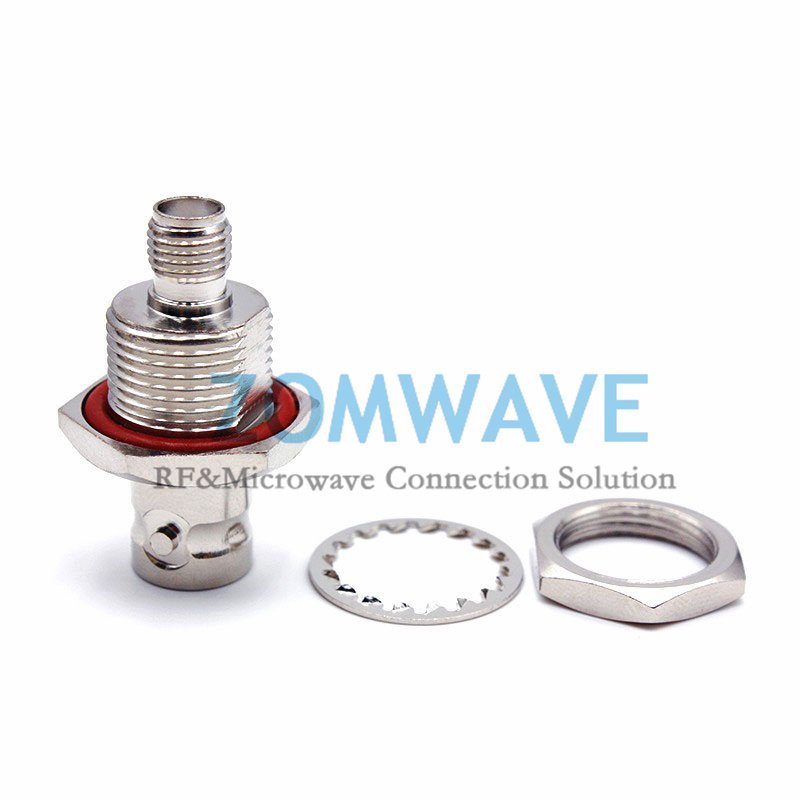

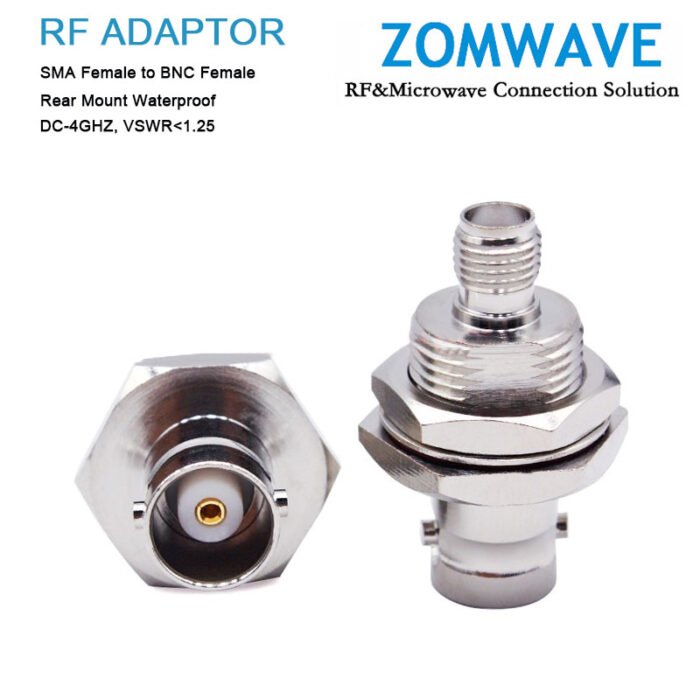

SMA Female to BNC Female Rear Mount Waterproof Adapter, 4GHz

$5.33

ZOMWAVE offers a 50 ohm SMA to BNC adaptor that combines nickel-plated corrosion-resistant construction with proven low VSWR performance up to 4GHz to minimize signal loss in telecommunications, industrial, and defense installations, while the waterproof rear-mount design ensures reliable environmental sealing and secure panel installation for harsh field deployments. The adapter further reduces installation time and lifecycle cost by providing robust mechanical grounding, optional stainless steel and reinforced flange variants for improved vibration and strain resistance, and enhanced EMI control to protect sensitive receivers and transmitters in complex RF systems. Available for customized production, bulk orders, and fast fulfillment, this SMA to BNC adaptor simplifies connector compatibility, shortens maintenance cycles, and streamlines subsystem integration for large-scale projects.



Quantity Price Discount
1-9 $5.33 0%
10-49 $5.12 4%
50-99 $4.90 8%
100+ $4.48 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:BNJ-MAJ-SBH-98

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Grass nikel plated
Adatper Mount Method 1Rear Mount Waterproof
Connector Series 2BNC
Connector Gender 2Female
Connector Body Material 2Grass nikel plated
Adatper Mount Method 2Rear Mount Waterproof
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)4GHz
VSWR≤1.25 (DC 0~4GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

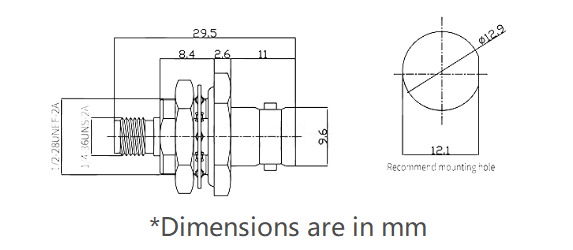

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
