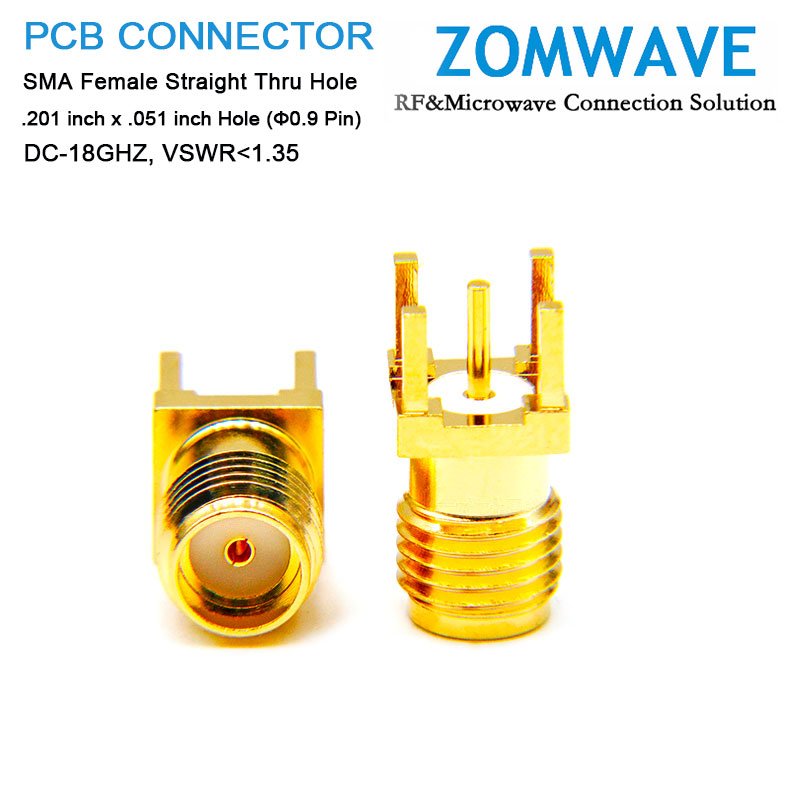

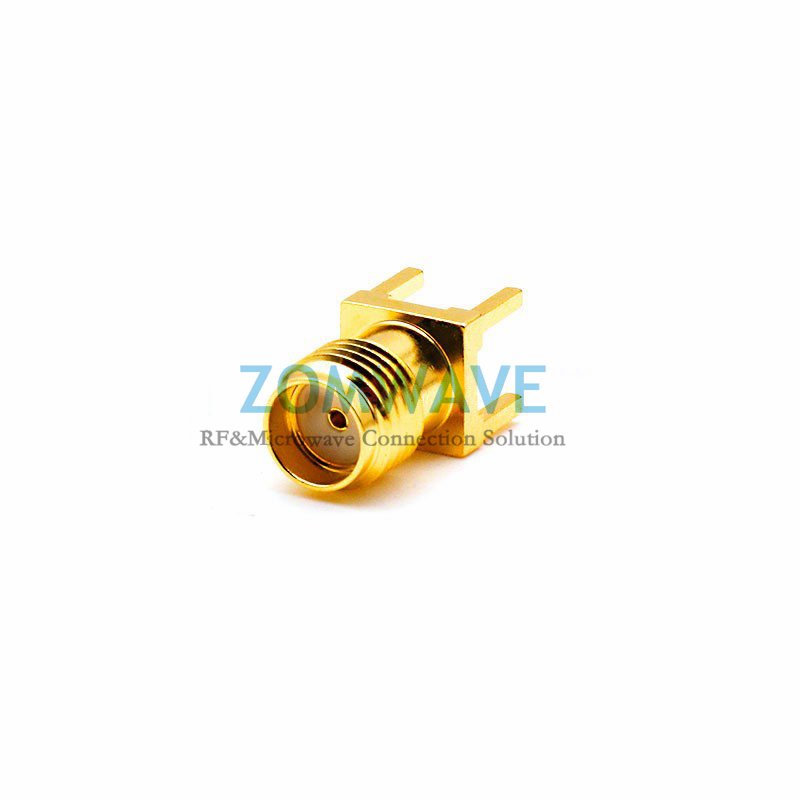

SMA Female Straight Thru Hole PCB Connector, .201 inch x .051 inch Hole, 18GHz

$3.33

5 Days Ship Out. Negotiated Price. The ZOMWAVE SMA Female Straight Thru Hole PCB Connector, with its precise .201 inch x .051 inch hole pattern, is the ideal SMA PCB mount connector for applications demanding reliable performance up to 18 GHz. This 50 Ohm SMA female connector features a solder attachment method for secure shield and contact connections, ensuring signal integrity with a maximum VSWR of 1.35. Constructed with a gold-plated brass body and a beryllium copper contact, it is built for durability and consistent operation, verified through rigorous testing including MIL-STD-202 for vibration and thermal shock. This SMA female PCB RF connector solves design challenges by offering a RoHS and REACH-compliant, straightforward through-hole interface that simplifies assembly and reduces installation time. As part of our extensive inventory of over 40,000 RF components, it is available for immediate worldwide shipment with a 5-day dispatch, helping you maintain critical project timelines. Please note that this SMA female connector is compatible only with the 2.4mm interface.
Quantity Price Discount
1-9 $3.33 0%
10-49 $3.20 4%
50-99 $3.06 8%
100+ $2.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-NMSS-PTHT-97

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount MethodNone
Attachment MethodSolder
Interface TypeThru Hole
Material
Centre ContactBerylium-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)18GHZ
VSWR≤1.35:1 (DC 0~18GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

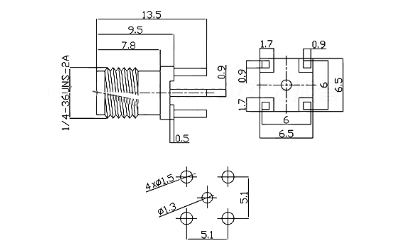

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
