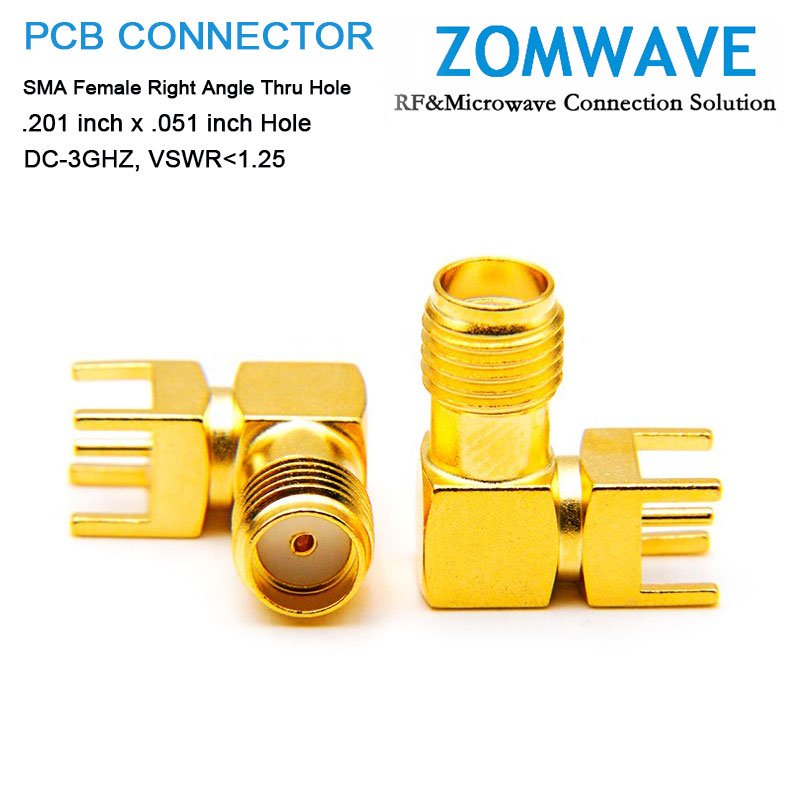

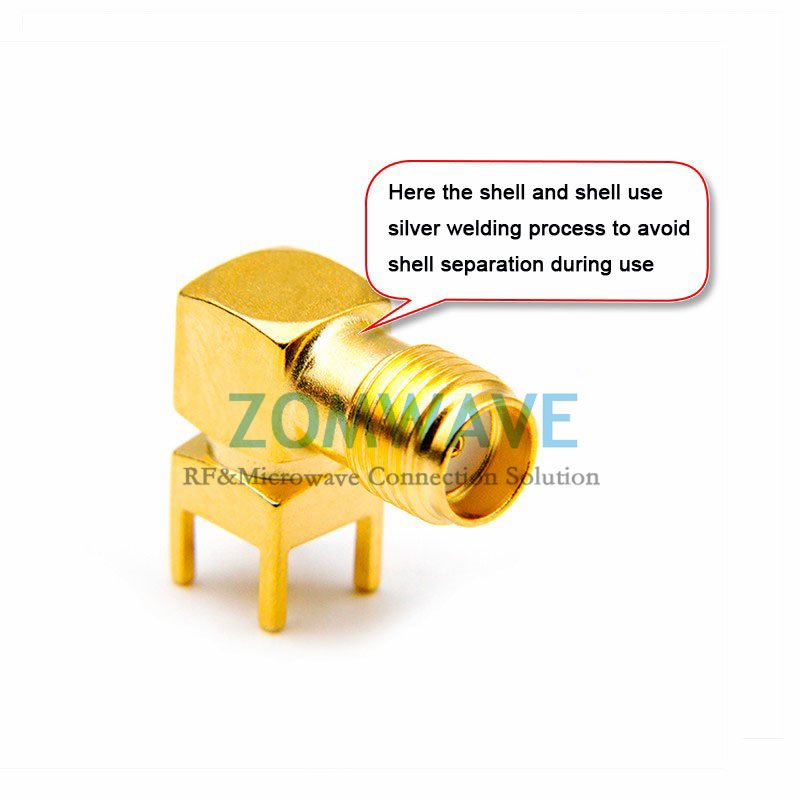

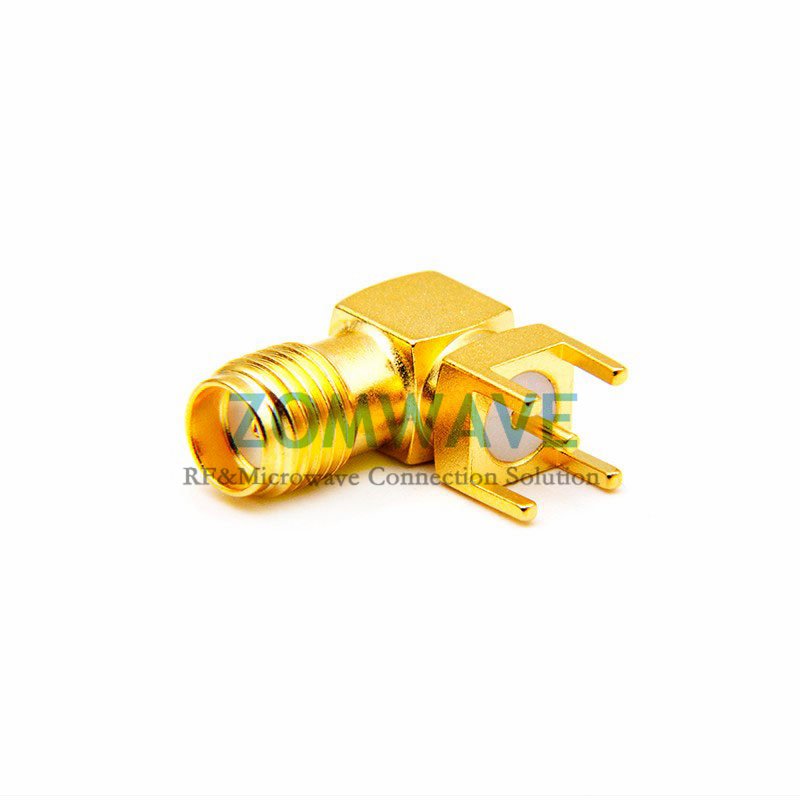

SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz
SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz
SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz
Click to enlarge
SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz
SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz
SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz

SMA Female Right Angle Thru Hole PCB Connector, .201 inch x .051 inch Hole, 3GHz

$2.00

ZOMWAVE SMA Female Right Angle Thru Hole PCB Connector ships in 5 Days, ships out with a negotiated price, and is engineered for reliable PCB interconnection in RF systems. The through-hole interface with a .201-inch by .051-inch hole spacing supports 50 Ohm impedance and shield/contact solder attachment, providing DC to 3 GHz performance with a PTFE dielectric and a VSWR of 1.25 to preserve signal integrity. The brass body with gold plating and beryllium copper contact delivers durable electrical contact and corrosion resistance, meets RoHS and REACH requirements, and the connector is stocked among over 40,000 RF, microwave, and millimeter wave components for worldwide shipment. As a SMA right-angle connector​ and as a dependable SMA connector right-angle PCB option, this part eases PCB routing in dense layouts, improves EMI performance, and reduces rework by offering consistent impedance and strong mechanical retention. Additional advantages include compatibility with automated soldering processes, predictable thermal stability across operating ranges, rated mating cycles to minimize connector wear, dedicated technical support to simplify procurement and speed deployment, plus low insertion loss and MIL-STD durability to solve vibration, shock, and harsh condition issues. Compatible only with the 2.4mm interface, ZOMWAVE also supplies the SMA Female Straight Thru Hole PCB Connector.
Quantity Price Discount
1-9 $2.00 0%
10-49 $1.92 4%
50-99 $1.84 8%
100+ $1.68 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJR-NMSS-PTHT-99
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleRight Angle
Connector Mount MethodNone
Attachment MethodSolder
Interface TypeThru Hole
Material
Centre ContactBerylium-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)3GHZ
VSWR≤1.25:1 (DC 0~3GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

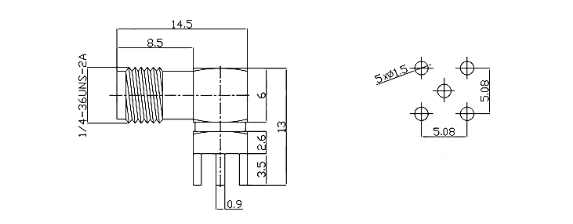

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
