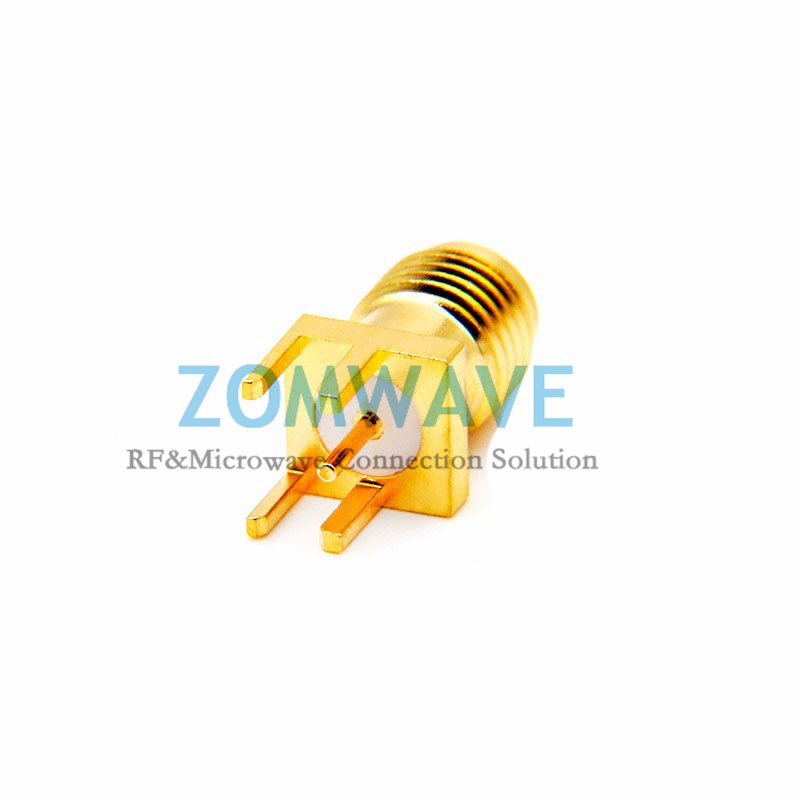

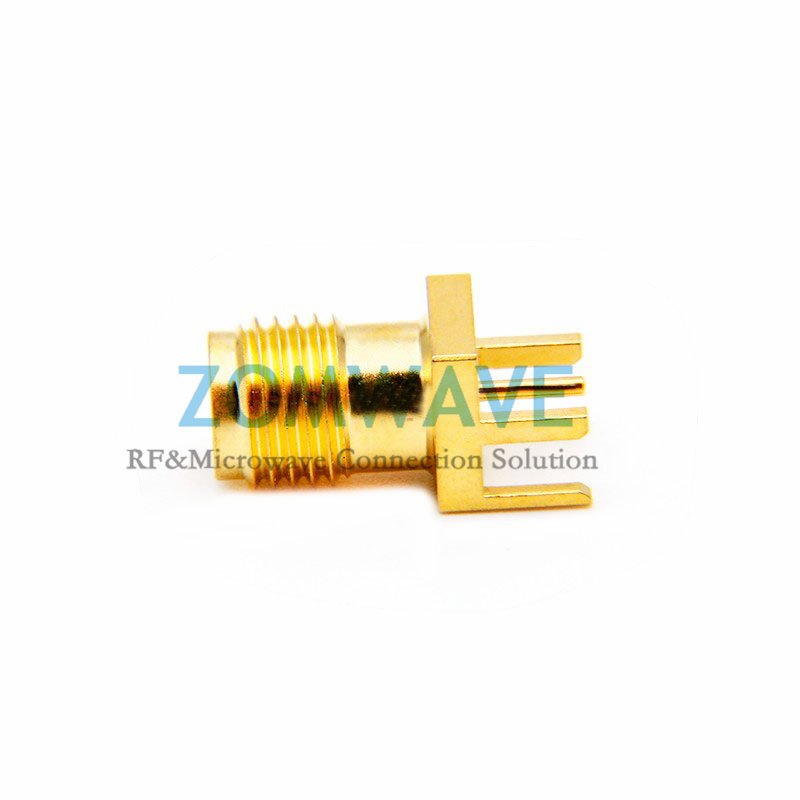

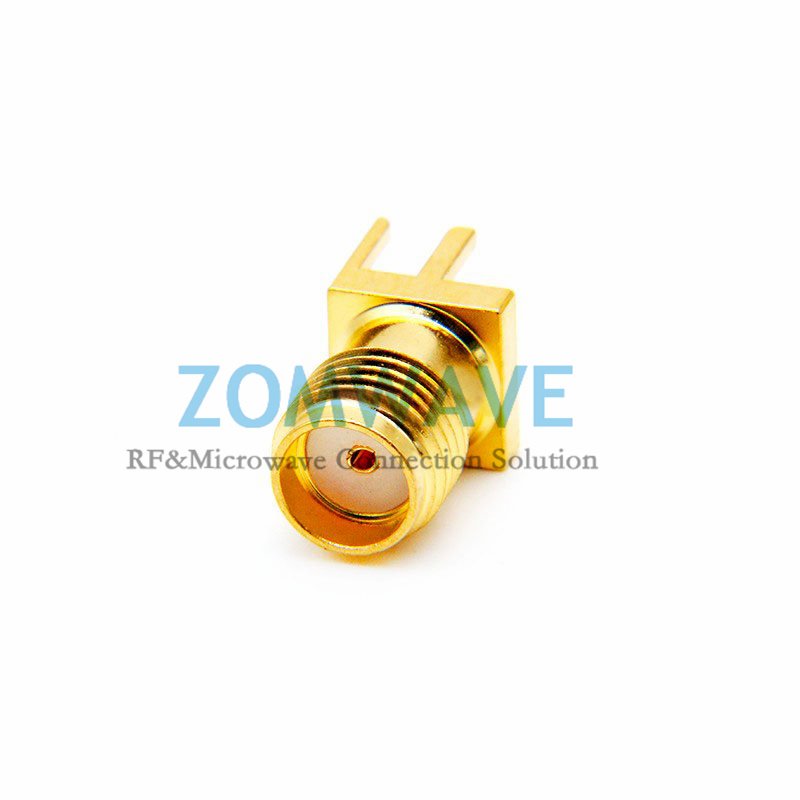

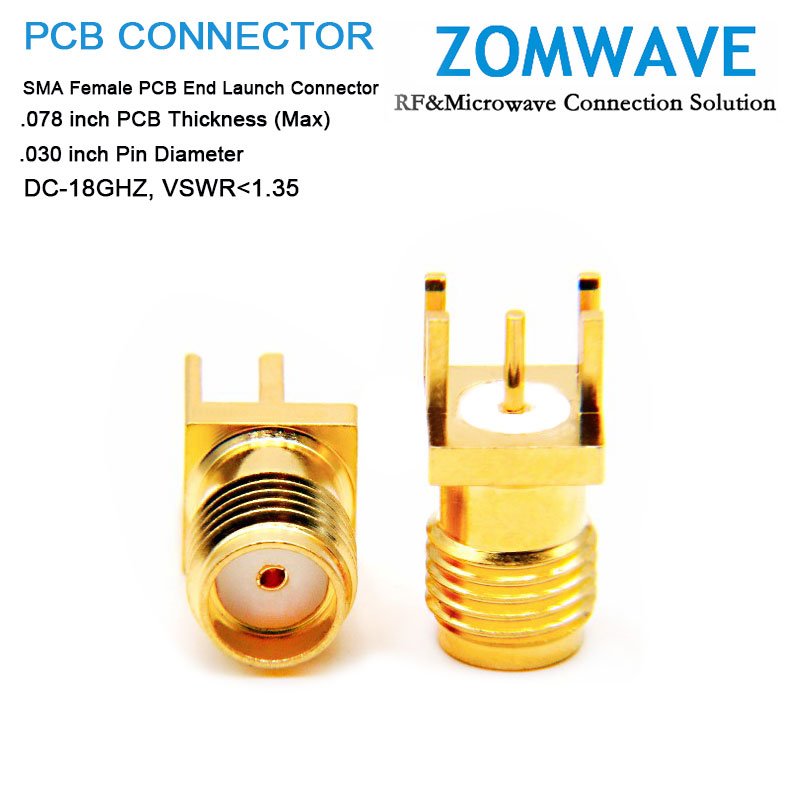

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMA Female PCB End Launch Connector, .078 inch PCB Thickness (Max), .030 inch Pin Diameter has an interface type of end launch and a 50 Ohm impedance. SMA female connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 18GHz. ZOMWAVE SMA female pcb connector has a PTFE dielectric type and a VSWR of 1.35. The ZOMWAVE SMA Female PCB End Launch Connector, .078 inch PCB Thickness (Max), .030 inch Pin Diameter has a brass body with gold plating. Our SMA connector uses beryllium copper contact. This SMA female pcb RF connector is RoHS and REACH compliant. Our SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the 2.4mm interface. Zomwave supplies SMA Female Straight Thru Hole PCB Connector. coax cable sma connectors, sma rf connector, sma coax connector, sma barrel connector are offered to reduce return loss, simplify terminations, speed field swaps and cut lifecycle cost while enabling tailored plating, testing and documentation for quicker qualification and lower MTTR.
Key specifications
| Configuration | |
| Connector Series | SMA |
| Connector Gender | Female |
| Connector Angle | Straight |
| Connector Mount Method | None |
| Attachment Method | Solder |
| Interface Type | End Launch |
| Material | |
| Centre Contact | Berylium-copper, gold plated |
| Body | Brass, gold plated |
| Insulators | PTFE |
| Electrical Specifications | |
| Impedance | 50 ohm |
| Frequency Range(From DC) | 18GHZ |
| VSWR | ≤1.35:1 (DC 0~18GHz) |
| Insertion Loss | 0.05 xSqt.(f_Ghz) |
| Voltage Rating | 150 V(rms) |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥500 Mohm |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 5-7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -40°C ~ +125°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft |

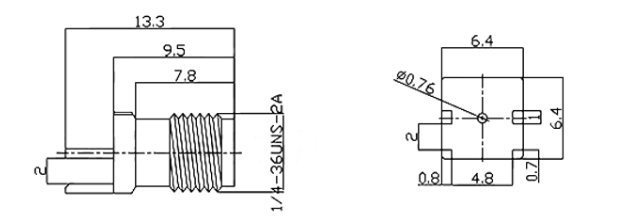

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
