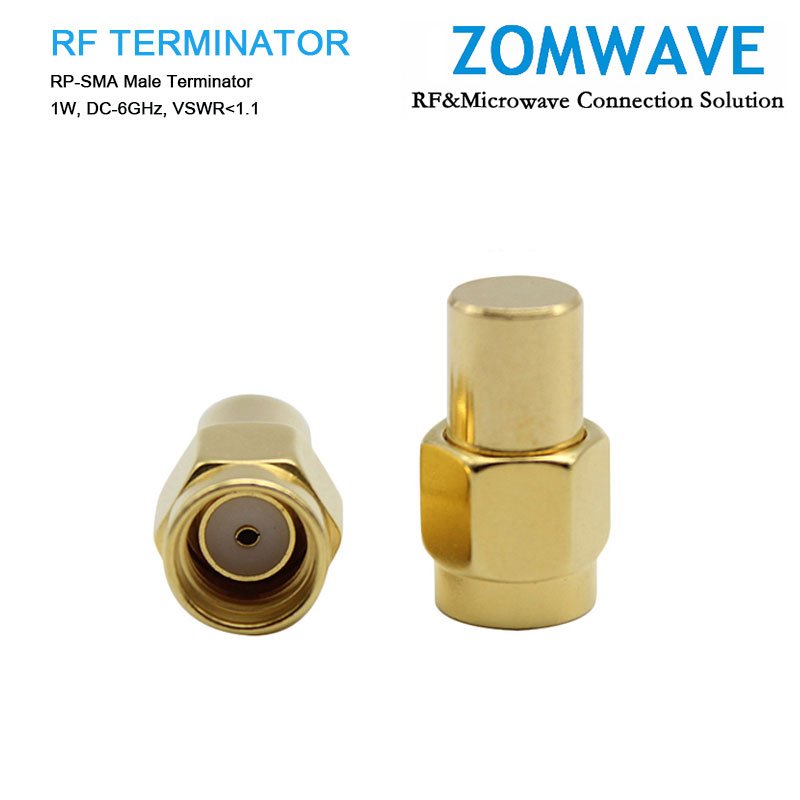

RP-SMA Male Terminator, 1W, 6GHz

$3.33

The ZOMWAVE RP-SMA Male Terminator is a precision-engineered rp sma termination, designed as a 1W SMA RF termination for flawless performance up to 6GHz with exact 50 Ohm impedance. This essential 50 ohm SMA terminator solution features a durable Brass Gold-Plated body, ensuring excellent conductivity and long-term corrosion resistance. As a reliable RP SMA termination and reverse polarity SMA termination, it maintains a maximum VSWR of 1.1 to 1 to preserve signal integrity. The RoHS-compliant SMA coaxial termination effectively prevents signal reflections, protecting sensitive front-end components and enhancing measurement accuracy in test setups. Verified with MIL-STD-202 testing, it withstands extreme vibration, shock, and thermal cycling from -55°C to +100°C, solving durability issues in mobile and outdoor systems. It simplifies system calibration, reduces maintenance costs, and minimizes inventory needs by providing a stable, repeatable 50 ohm load for wireless networks, production test benches, and RF instrumentation using reverse-polarity interfaces. ZOMWAVE delivers this high-performance terminator with volume discounts, global 5-day shipping, and no MOQ for samples, supported by full quality assurance for consistent, reliable results in the field, plus it cuts rework in assembly lines, boosting throughput.



Quantity Price Discount
1-9 $3.33 0%
10-49 $3.20 4%
50-99 $3.06 8%
100+ $2.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:TER-MRP-001W06G-99

Key Specifications

Configuration
Adapter Series 1RP-SMA
Adapter Gender 1Male
Adapter Angle 1Straight
Adapter Mount Method1None
Body Materials and Plating 1Nickel Plated Brass
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.1:1 (DC 0~6GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Maximum Power1W
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics (RoHS Complliant)
Operation Temperature Rating-55°C ~ +100°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
