SP3T Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 5W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWS3T-MK40G24V-L3J2-01
The SWS3T-MK40G24V-L3J2-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

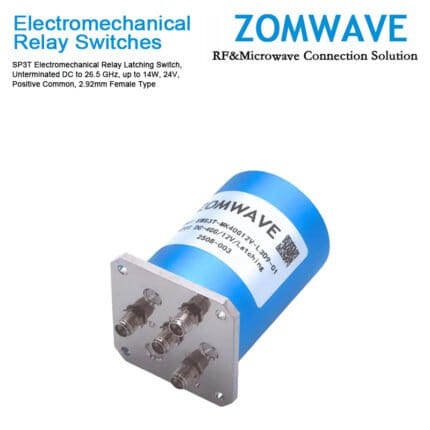

SP3T Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 14W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWS3T-MK26G24V-L3J2-01
The SWS3T-MK26G24V-L3J2-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP3T Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 14W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWS3T-MK26G12V-L3D9-01
The SWL3T-MK26G12V-L3D9-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP3T Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 5W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWL3T-MK40G24V-L3J2-01
The SWL3T-MK40G24V-L3J2-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP3T Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 5W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWL3T-MK40G12V-L3D5-01
The SWL3T-MK40G12V-L3D5-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP3T Electromechanical Relay Latching Switch, Terminated DC to 26.5 GHz, up to 14W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWL3T-MK26G24V-L3J2-01
The SWL3T-MK26G24V-L3J2-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP3T Electromechanical Relay Latching Switch, Terminated DC to 26.5 GHz, up to 14W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWL3T-MK26G12V-L3D5-01
The SWL3T-MK26G12V-L3D9-01 is a Single Pole Three Throw (SP3T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SPDT Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 10W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWSDT-MK40G24V-L3S4-01
The SWSDT-MK40G24V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.80 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SPDT Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 10W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWSDT-MK40G12V-L3S4-01
The SWSDT-MK40G12V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.80 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SPDT Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 24W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWSDT-MK26G24V-L3S4-01
The SWSDT-MK26G24V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 24W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.65 dB insertion loss and isolation greater than 65 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SPDT Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 24W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWSDT-MK26G12V-L3S4-01
The SWSDT-MK26G12V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 24W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.65 dB insertion loss and isolation greater than 65 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SPDT Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 10W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWLDT-MK40G24V-L3S4-01
The SWLDT-MK40G24V-L3S4-011 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.80 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
