SP5T Electromechanical Relay Latching Switch, Unterminated DC to 6 GHz, up to 120W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWS5T-MA06G12V-L3D9-01
The SWS5T-MA06G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.40 dB insertion loss and isolation greater than 80 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 5W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWL5T-MK40G12V-L3D5-01
The SWL5T-MK40G12V-L3D5-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 5W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWL5T-MK40G24V-L3J2-01
The SWL5T-MK40G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 5W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWS5T-MK40G24V-L3J2-01
The SWS5T-MK40G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

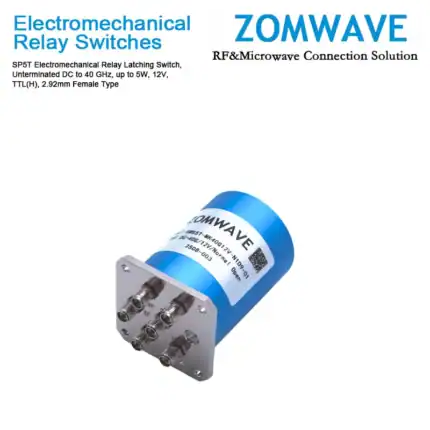

SP5T Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 5W, 12V,TTL(H), 2.92mm Female Type
SKU:
P/N:SWS5T-MK40G12V-L3D9-01
The SWS5T-MK40G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D Sub 9 for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 26.5 GHz, up to 14W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWL5T-MK26G12V-L3D5-01
The SWL5T-MK26G12V-L3D5-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 26.5 GHz, up to 14W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWL5T-MK26G24V-L3J2-01
The SWL5T-MK26G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

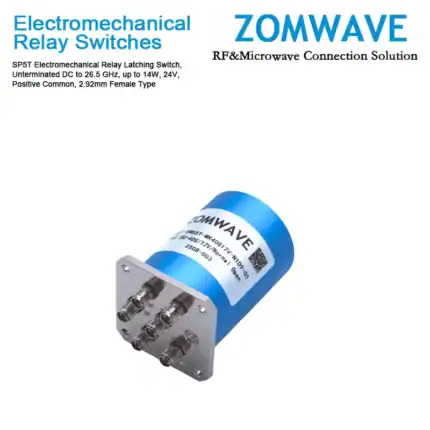

SP5T Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 14W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWS5T-MK26G24V-L3J2-01
The SWS5T-MK26G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 14W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWS5T-MK26G12V-L3D9-01
The SWS5T-MK26G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 14W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
2x SP6T Electromechanical Switch Matrix, Terminated, DC to 40 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N: SML-2P12T-MK40G-UE-01
The SML-2P12T-MK40G-UE-01 is a switch matrix consisting of two Single Pole Twelve Throw (2xSP6T) electromechanical relays, designed for a wide frequency range from DC to 40 GHz. It handles up to 5W of average power and operates on a break-before-make basis. Rated for 2.5 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.9 dB and isolation greater than 55 dB.
The switch requires an AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
20dB Fixed Attenuator, N Male to N Female,5Watts, DC-18 GHz, Round, VSWR<1.35
SKU:
P/N: ATT05W20-18-NCJ-NCP-98
20dB Fixed Attenuator, N Male to N Female, 5Watts, DC-18 GHz, Round, VSWR<1.2
SKU:
P/N: ATT05W20-18-NCJ-NCP-99
