SP5T Electromechanical Relay Latching Switch, Terminated DC to 20 GHz, up to 75W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWL5T-MA20G24V-L3J2-01
The SWL5T-MA20G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 20 GHz and can handle up to 75W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 20 GHz, up to 75W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWS5T-MA20G24V-L3J2-01
The SWS5T-MA20G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 20 GHz and can handle up to 75W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 20 GHz, up to 75W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWS5T-MA20G12V-L3D9-01
The SWS5T-MA20G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 20 GHz and can handle up to 75W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.70 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 18 GHz, up to 80W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWS5T-MA18G24V-L3J2-01
The SWS5T-MA18G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.60 dB insertion loss and isolation greater than 65 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 18 GHz, up to 80W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWS5T-MA18G12V-L3D9-01
The SWS5T-MA18G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.60 dB insertion loss and isolation greater than 65 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 18 GHz, up to 80W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWL5T-MA18G24V-L3J2-01
The SWL5T-MA18G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.60 dB insertion loss and isolation greater than 65 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 18 GHz, up to 80W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWL5T-MA18G12V-L3D5-01
The SWL5T-MA18G12V-L3D5-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.60 dB insertion loss and isolation greater than 65 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 6 GHz, up to 120W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWL5T-MA06G12V-L3D5-01
The SWL5T-MA06G12V-L3D5-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.40 dB insertion loss and isolation greater than 80 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 6 GHz, up to 120W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWL5T-MA06G24V-L3J2-01
The SWL5T-MA06G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.40 dB insertion loss and isolation greater than 80 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

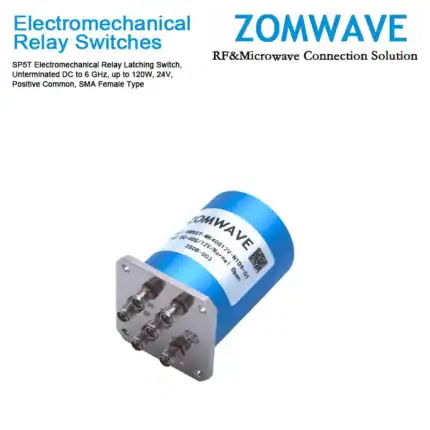

SP5T Electromechanical Relay Latching Switch, Unterminated DC to 6 GHz, up to 120W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWS5T-MA06G24V-L3J2-01
The SWS5T-MA06G24V-L3J2-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.40 dB insertion loss and isolation greater than 80 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*8P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Unterminated DC to 6 GHz, up to 120W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWS5T-MA06G12V-L3D9-01
The SWS5T-MA06G12V-L3D9-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.40 dB insertion loss and isolation greater than 80 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
SP5T Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 5W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWL5T-MK40G12V-L3D5-01
The SWL5T-MK40G12V-L3D5-01 is a Single Pole Five Throw (SP5T) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 5W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.90 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 15P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
