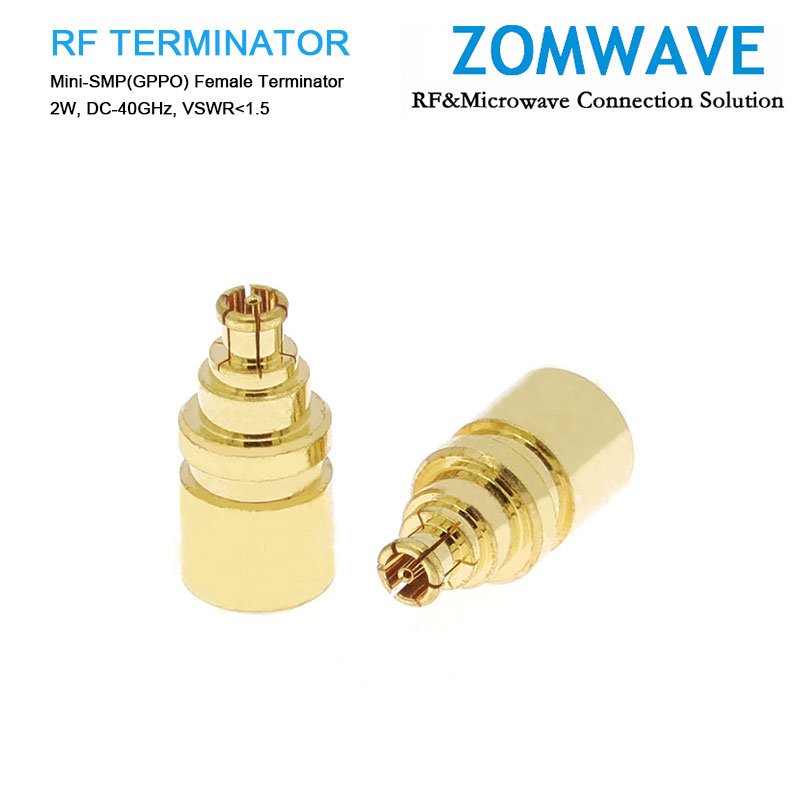

Mini-SMP(GPPO) Female Terminator, 2W, 40GHz

$97.35

ZOMWAVE Mini-SMP(GPPO) Female Terminator is rated for a maximum frequency of 40 GHz and serves as a precision 50 Ohm RF load termination. This Mini-SMP(GPPO) Female Terminator 2W, 40GHz is manufactured with a Gold Plated Beryllium Copper body for excellent conductivity and corrosion resistance. As a reliable choice for mini smp terminations, it maintains an average maximum VSWR of 1.5:1 and meets MIL-STD environmental requirements for thermal shock, vibration, and humidity, ensuring stable performance in test and communication systems. With over 500 mating cycles and operation from -55°C to +100°C, this terminator reduces field failures and calibration drift, helping engineers maintain measurement accuracy in high-density assemblies. ZOMWAVE can ship this Mini SMP(GPPO) terminator with high performance and low price within 5 days.



Quantity Price Discount
1-9 $97.35 0%
10-49 $93.46 4%
50-99 $89.56 8%
100+ $81.77 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:TER-GPJ-002W40G-99

Key Specifications

Configuration
Adapter Series 1Mini SMP
Adapter Gender 1Female
Adapter Angle 1Straight
Adapter Mount Method1None
Body Materials and Plating 1Gold Plated Beryllium Copper
Electric Specifications
Impedance50ohm
Frequency Range(From DC)40GHz

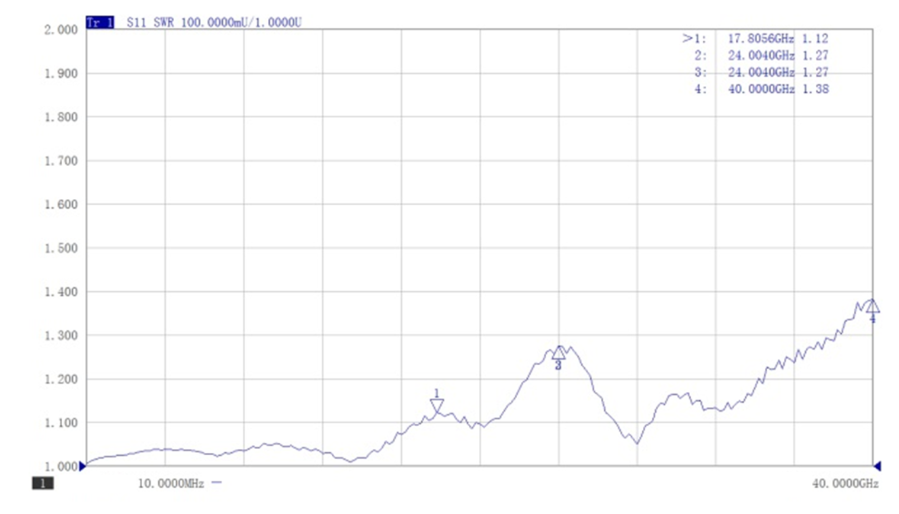

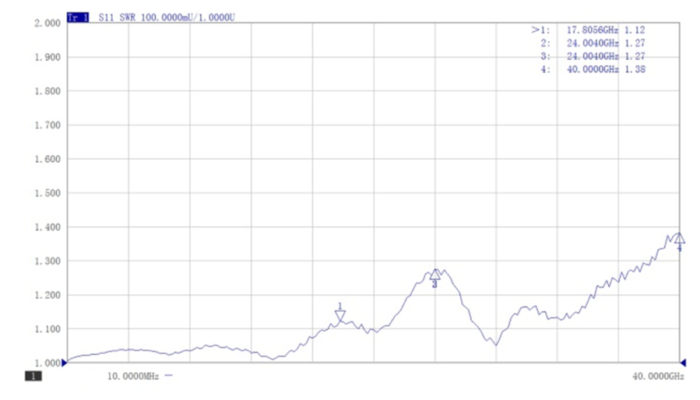

VSWR≤1.5:1 (DC 0~40GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Maximum Power2W
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics (RoHS Complliant)
Operation Temperature Rating-55°C ~ +100°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
