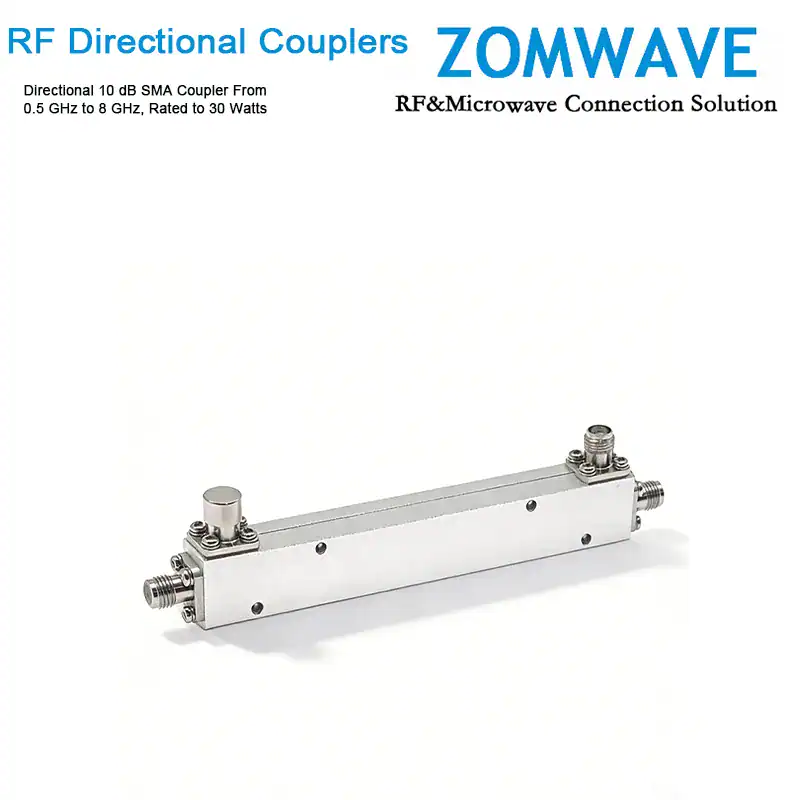

Directional 20 dB SMA Coupler From 0.5 GHz to 8 GHz, Rated to 30 Watts
Click to enlarge

Directional 20 dB SMA Coupler From 0.5 GHz to 8 GHz, Rated to 30 Watts

$189.06

The CPS20-MAJMAJ-500M008G15-1 is an 20 dB RF coupler with 50 ohm SMA connectors operating from 0.5 GHz to 18 GHz with a maximum input power of 30 Watts CW. The CPD20DB-MAJ005080-015 has a coupling factor of 20 dB, insertion loss of 0.8 dB maximum and a maximum VSWR of 1.3:1. The coupler operates over a temperature range of -45 to 85° C and meets environmental standard for humidity, shock, vibration, and altitude. Couplers have many Applications and perform several functions within the RF/Microwave industry such as circuit feedback and signal sampling for measurement or monitoring.

Quantity Price Discount
1-9 $189.06 0%
10-49 $181.50 4%
50-99 $173.94 8%
100+ $162.59 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:CPS20-MAJMAJ-500M008G15-1
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration　
DirectionalityDirectional
Connector SeriesSMA
Connector GenderFemale
Electric Specifications　
Coupling Value20 ± 1 dB
Directivity15dB Min
Impedance50ohm
Frequency Range0.5 GHz ~ 8 GHz
VSWR≤1.3:1
Insertion Loss<0.8 dB
Input Avg Power30 Watts Max @25°C
Mechanical Characteristics　
Length4.45 in [113 mm]
Width0.59 in [15 mm]
Height0.43 in [11 mm]
Weight62g
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45 to +85 deg C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

You Might Also Like

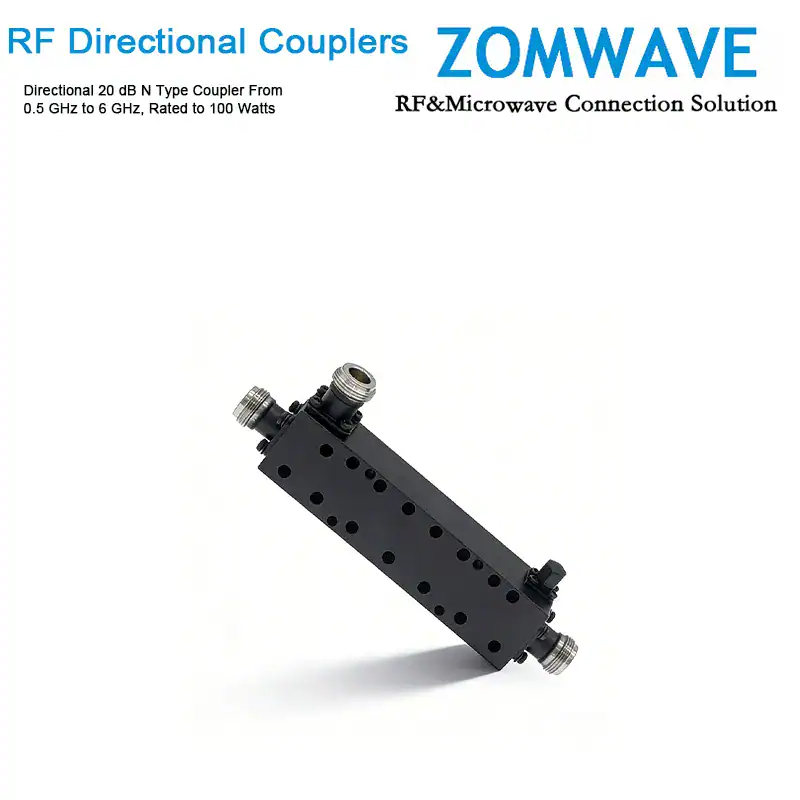

Directional 20 dB N Type Coupler From 0.5 GHz to 6 GHz, Rated to 100 Watts
Compare

Directional 20 dB N Type Coupler From 0.5 GHz to 6 GHz, Rated to 100 Watts

SKU: P/N:CPS20-NCJNCJ-500M006G15-1
$406.25
The CPS20-NCJNCJ-500M006G15-1 is an 20 dB RF coupler with 50 ohm N Type connectors operating from 0.5 GHz to 6 GHz with a maximum input power of 100Watts CW. The CPD20DB-NCJ005060-015 has a coupling factor of 20 dB, insertion loss of 0.6 dB maximum and a maximum VSWR of 1.3:1. The coupler operates over a temperature range of -45 to 85° C and meets environmental standard for humidity, shock, vibration, and altitude. Couplers have many Applications and perform several functions within the RF/Microwave industry such as circuit feedback and signal sampling for measurement or monitoring.
Add to wishlist
Add to cart
Quick view

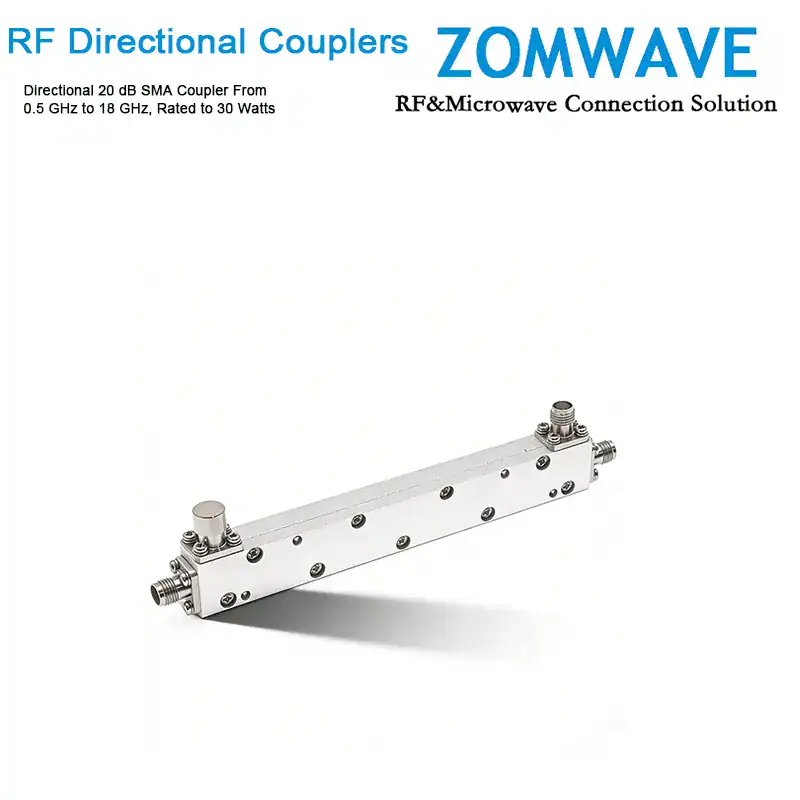

Directional 20 dB SMA Coupler From 0.5 GHz to 18 GHz, Rated to 30 Watts
Compare

Directional 20 dB SMA Coupler From 0.5 GHz to 18 GHz, Rated to 30 Watts

SKU: P/N:CPD20DB-MAJ005180-012
$251.56
The CPD20DB-MAJ005180-012 is an 20 dB RF coupler with 50 ohm SMA connectors operating from 0.5 GHz to 18 GHz with a maximum input power of 30 Watts CW. The CPD20DB-MAJ005180-012 has a coupling factor of 20 dB, insertion loss of 1.5 dB maximum and a maximum VSWR of 1.6:1. The coupler operates over a temperature range of -45 to 85° C and meets environmental standard for humidity, shock, vibration, and altitude. Couplers have many Applications and perform several functions within the RF/Microwave industry such as circuit feedback and signal sampling for measurement or monitoring.
Add to wishlist
Add to cart
Quick view

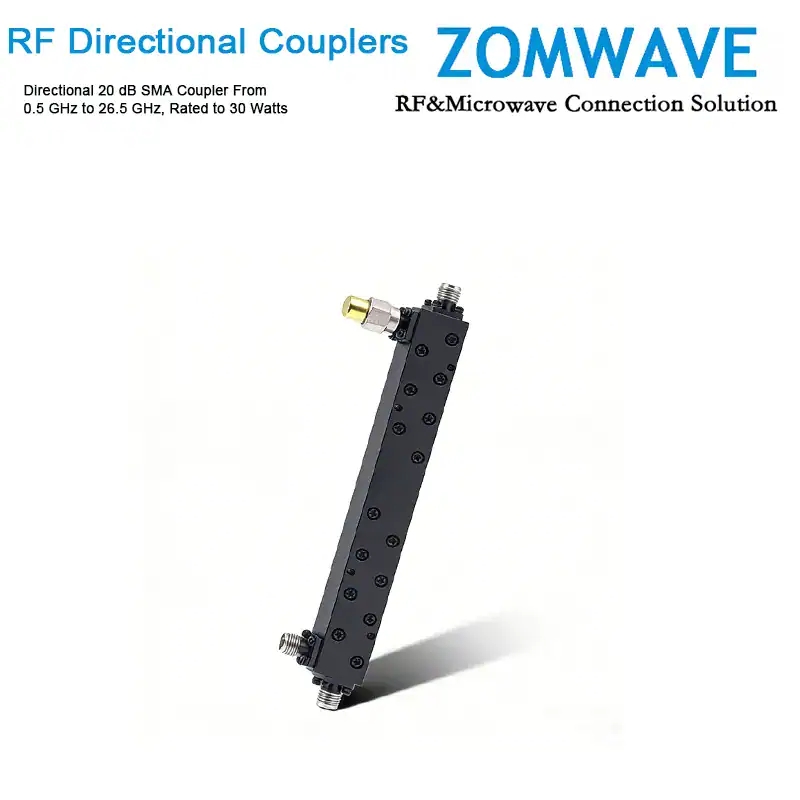

Directional 20 dB SMA Coupler From 0.5 GHz to 26.5 GHz, Rated to 30 Watts
Compare

Directional 20 dB SMA Coupler From 0.5 GHz to 26.5 GHz, Rated to 30 Watts

SKU: P/N:CPS20-MAJMAJ-500M026G10-1
$703.12
The CPS20-MAJMAJ-500M026G10-1 is an 20 dB RF coupler with 50 ohm SMA connectors operating from 0.5 GHz to 26.5 GHz with a maximum input power of 30 Watts CW. The CPD20DB-MAJ005265-010 has a coupling factor of 20 dB, insertion loss of 2.5 dB maximum and a maximum VSWR of 1.7:1. The coupler operates over a temperature range of -45 to 85° C and meets environmental standard for humidity, shock, vibration, and altitude. Couplers have many Applications and perform several functions within the RF/Microwave industry such as circuit feedback and signal sampling for measurement or monitoring.
Add to wishlist
Add to cart
Quick view

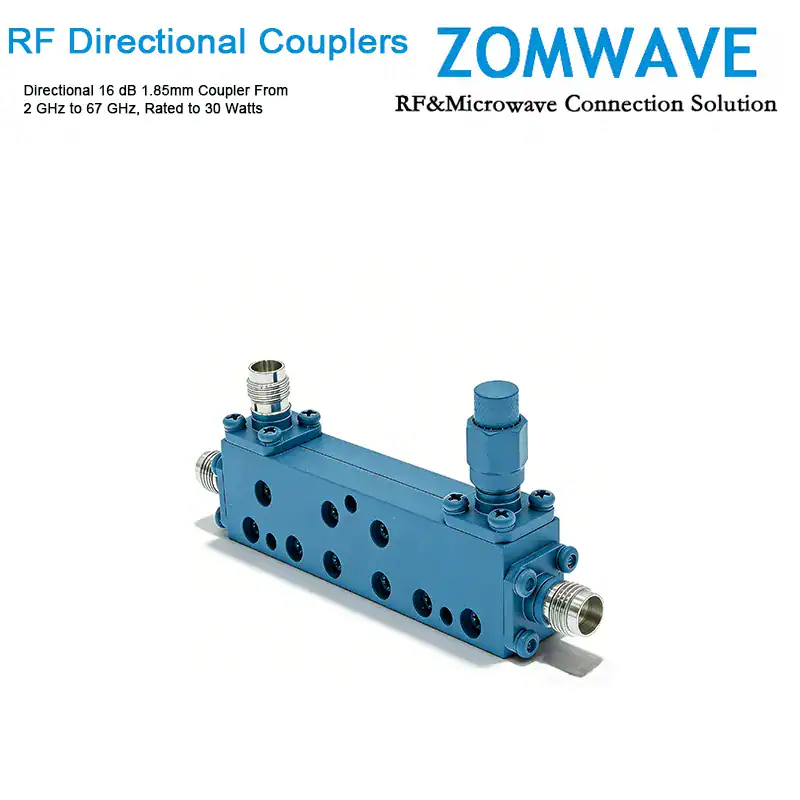

Directional 16 dB 1.85mm Coupler From 2 GHz to 67 GHz, Rated to 30 Watts
