Circulator with 20 dB lsolation from 7.7 GHz to 8.5 GHz, 30 Watts and SMA Female

$136.00

The RC-AMAJJJ-0770-0850-01 is a circulator offering a forward and reverse power rating of 30 Watts at an operational frequency band of 7.7 to 8.5 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 20 dB of isolation.
ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems,and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line.
Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.

Quantity Price Discount
1-9 $136.00 0%
10-49 $130.56 4%
50-99 $125.12 8%
100+ $116.96 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:RC-AMAJJJ-0770-0850-01
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration　
DesignSingle Junction
Connector In SeriesSMA
Connector In GenderFemale
Connector Out SeriesSMA
Signal Transmission DirectionClockwise
Electric Specifications　
Impedance50ohm
Frequency Range7.7 GHz ~ 8.5 GHz
VSWR≤1.25:1
Isolation >20dB
Insertion Loss<0.4dB
Forward Power, CW 30W
Reverse Power, CW30W
Mechanical Characteristics　
Length0.74 in [ 19 mm]
Width0.51 in [13 mm]
Height0.51 in [13 mm]
Weight/
Environmental Characteristics （RoHS Complliant)
Temperature Rating0 to +60 deg C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
10

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

You Might Also Like

Circulator with 25 dB lsolation from 9.9 GHz to 10.1GHz, 30 Watts and SMA Female
Back of 1319
Compare

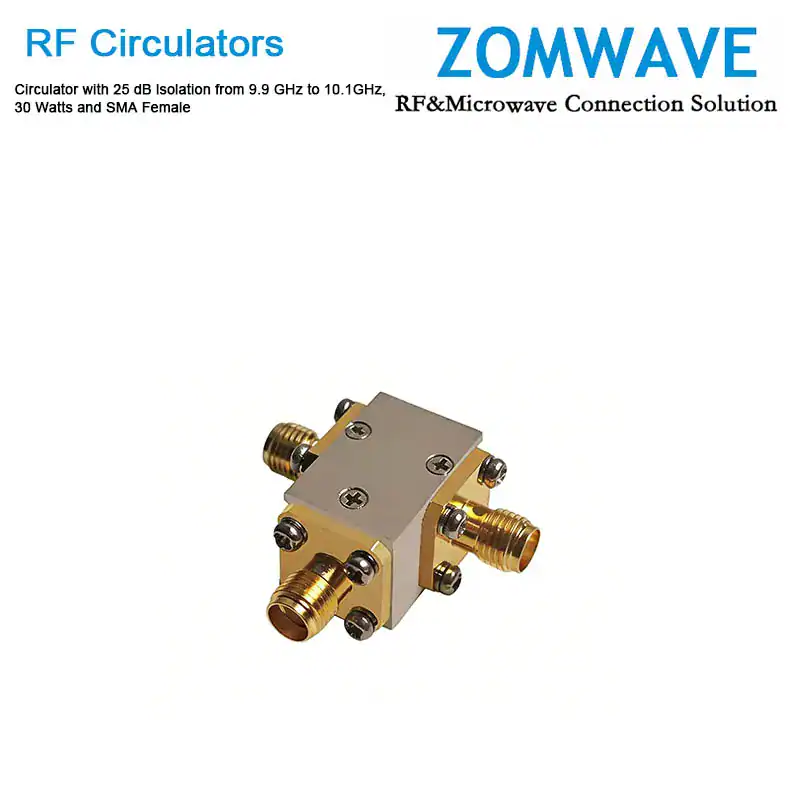

Circulator with 25 dB lsolation from 9.9 GHz to 10.1GHz, 30 Watts and SMA Female

SKU: P/N:RC-AMAJJJ-0990-1010-01
$136.00
The RC-AMAJJJ-0990-1010-01 is a circulator offering a forward and reverse power rating of 30 Watts at an operational frequency band of 9.9to 10.1 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 25 dB of isolation. ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems,and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line. Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
Add to wishlist
Add to cart
Quick view
Circulator with 18 dB lsolation from 8 GHz to 12 GHz, 30 Watts and SMA Female
Back of 1319
Compare

Circulator with 18 dB lsolation from 8 GHz to 12 GHz, 30 Watts and SMA Female

SKU: P/N:RC-AMAJJJ-0800-1200-01
$144.00
The RC-AMAJJJ-0800-1200-01 is a circulator offering a forward and reverse power rating of 30 Watts at an operational frequency band of 8 to 12 GHz. This coaxial part uses SMA female connectors on all ports and has a minimum of 18 dB of isolation. ZOMWAVE offers a wide array of circulators to meet your specific requirements. These unique devices enable two signals to travel in opposite directions along a single channel. A classic application is at the antenna-transceiver interface: signal flow follows a clockwise path from the antenna (Port 1) to the receiver (Port 2), and then from the transmitter (Port 3) back to the antenna (Port 1). By terminating one port with a matched load, the circulator can also function as an isolator. These components are suitable for radar transmit/receive modules, amplifier systems,and any scenario that requires isolation from signal reflections or bidirectional communication over a shared line. Our circulators deliver excellent performance with low insertion loss, high isolation, and proven reliability.
Add to wishlist
Add to cart
Quick view

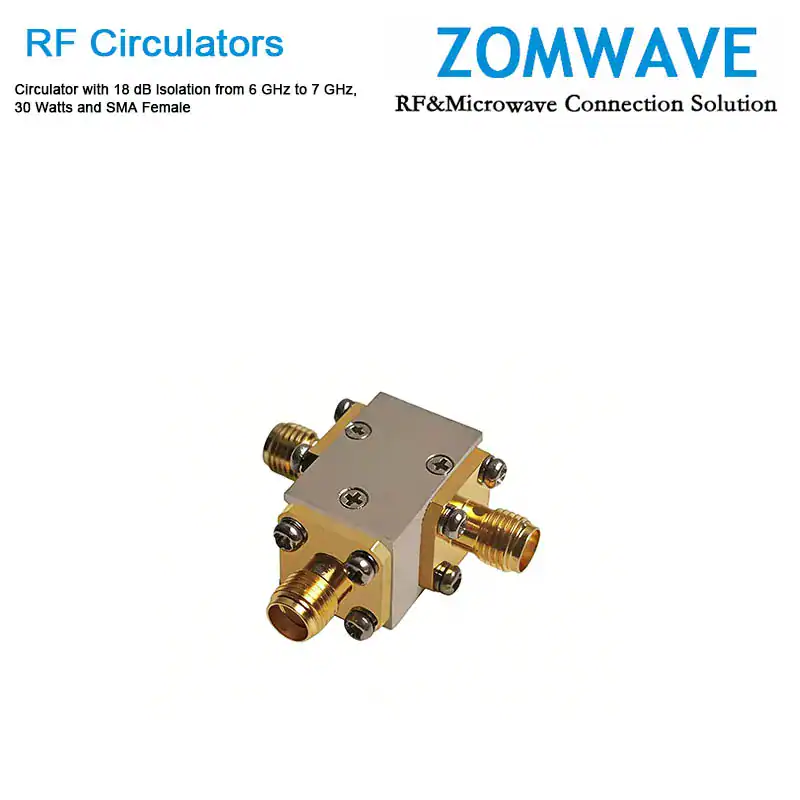

Circulator with 18 dB lsolation from 6 GHz to 7 GHz, 30 Watts and SMA Female
