Cavity Band Pass Filter with SMA Female Connectors Operating From 5150 MHz to 5850 MHz, Up to 20W CW
Click to enlarge

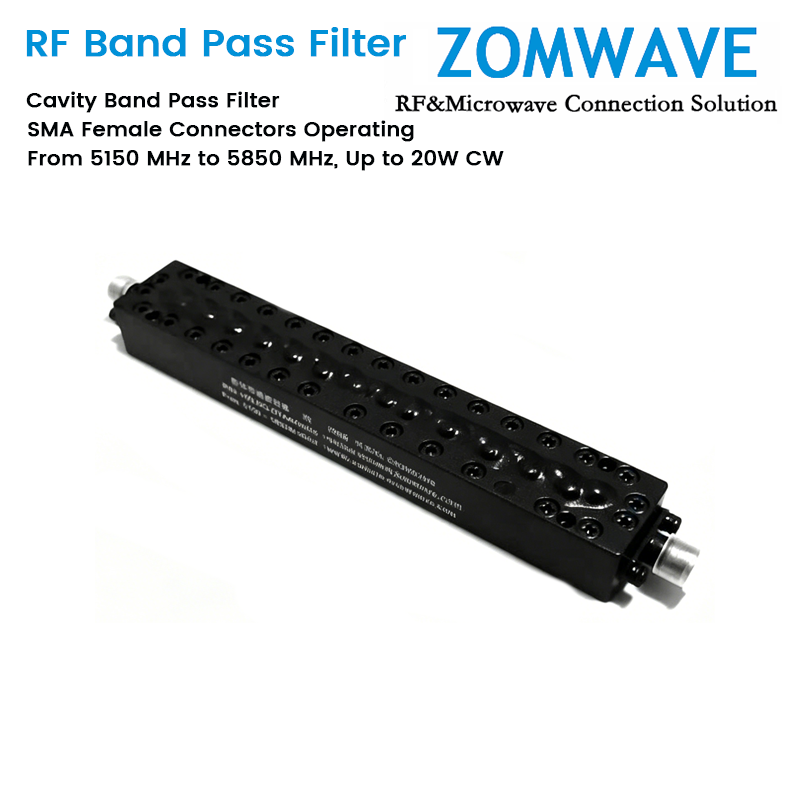

Cavity Band Pass Filter with SMA Female Connectors Operating From 5150 MHz to 5850 MHz, Up to 20W CW

$360.00

The BPF-MAJMAJ-5150-5850-01 is a high-performance cavity band pass filter designed to provide deep and selective suppression of unwanted signals outside the passband. It features a wide passband covering 5150 to 5850 MHz with low insertion loss, making it an ideal solution for passing desired high-frequency signals while blocking out-of-band noise and spurious signals, maintaining signal integrity across the target spectrum.
Engineered with a precision aluminum alloy cavity, this filter ensures excellent out-of-band rejection of ≥50 dB, low passband loss of ≤1.5dB, and a high power handling capacity of up to 20W CW. Its robust construction and standard SMA-Female interfaces guarantee reliable operation in demanding applications such as communications infrastructure, radar systems, and advanced test setup.

Quantity Price Discount
1-9 $360.00 0%
10-49 $345.60 4%
50-99 $331.20 8%
100+ $309.60 14%

   200+                                     Call US

   Get a lower discount price

SKU: BPF-MAJMAJ-5150-5850-01
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
RF Filter TypeBand Pass Filter
Connector SeriesSMA
Connector GenderFemale
Electric Specifications　
Impedance50ohm
Center Frequency(F0)5500MHz
Pass Band Frequency 5150 ~ 5850 MHz
Stop Band Attenuation≥50dB @ DC ~ 5000MHz
Pass Band VSWR≤1.22:1
Pass Band Insertion Loss≤1.5dB
Input Avg Power20 W Max
Mechanical Characteristics　
Length4.33 in [110 mm]
Width0.71 in [18 mm]
Height0.63 in [16 mm]
Weight/
Environmental Characteristics （RoHS Complliant)
Temperature Rating-30℃ ~ +70℃
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
