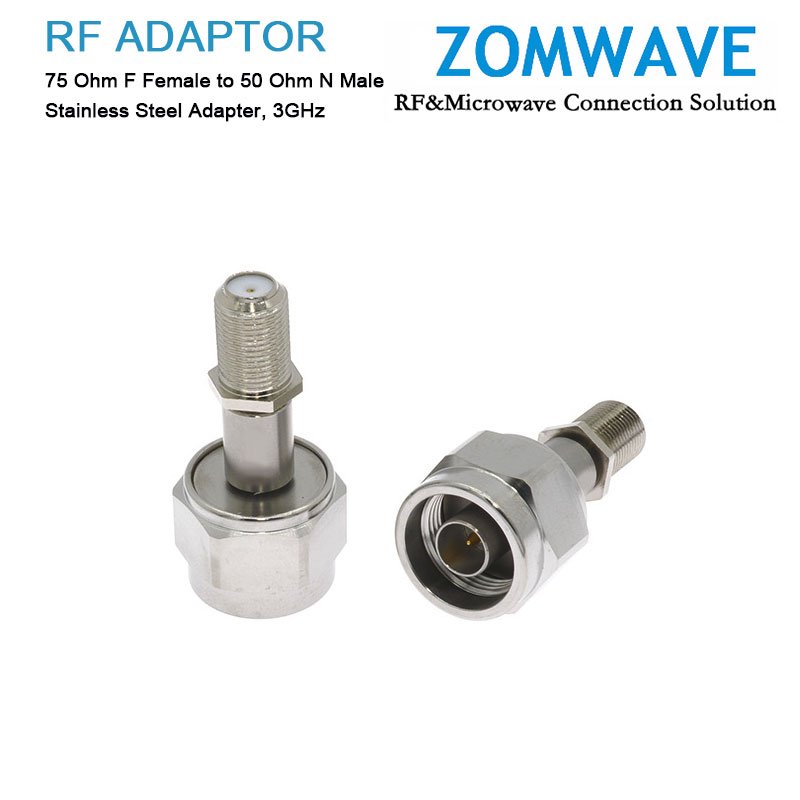

75 Ohm F Female to 50 Ohm N Male Stainless Steel Adapter, 3GHz
75 Ohm F Female to 50 Ohm N Male Stainless Steel Adapter, 3GHz
Click to enlarge
75 Ohm F Female to 50 Ohm N Male Stainless Steel Adapter, 3GHz
75 Ohm F Female to 50 Ohm N Male Stainless Steel Adapter, 3GHz

75 Ohm F Female to 50 Ohm N Male Stainless Steel Adapter, 3GHz

$56.67

The 50 ohm n male to 75 ohm f female adapter from ZOMWAVE is designed for precise interconnection of coaxial components and subsystems, featuring a straight stainless steel body that ensures mechanical strength and long service life. Rated for excellent VSWR performance up to 3 GHz, it minimizes reflection and insertion loss when bridging 50 Ω and 75 Ω networks, making it suitable for broadcast, CATV, and RF test environments. Acting as a sacrificial interface, it protects costly instrument ports from wear during repeated mating cycles, while simplifying inventory management and field repairs. This compact adapter also supports stable electrical contact under vibration, speeds on‑site maintenance, and reduces total ownership costs by combining durability, easy sourcing, and reliable performance across diverse installation scenarios.



Quantity Price Discount
1-9 $56.67 0%
10-49 $54.40 4%
50-99 $52.14 8%
100+ $47.60 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:F1J-NCP-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1F type
Adapter Gender 1Female
Impedance 175Ω
Adapter Mount Method1None
Body Materials and Plating 1Stainless Steel
Adapter Series 2Type N
Adapter Gender 2Male
Impedance 250Ω
Adapter Mount Method 2None
Body Materials and Plating 2Stainless Steel
Adapter Angle Straight
Electric Specifications
Frequency Range(From DC)3GHz
VSWR1.25 Max
Insertion Loss5.70dB±0.5dB Max
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

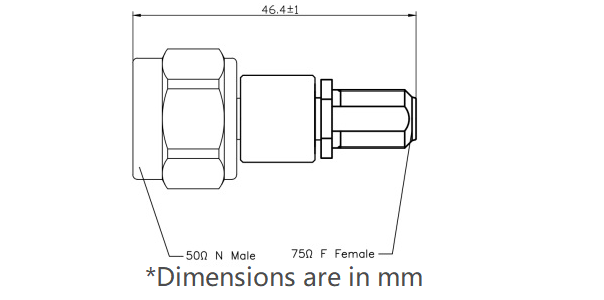

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
