3 Way SMA Power Divider from 0.5 GHz to 8 GHz Rated at 20 Watts

$496.00

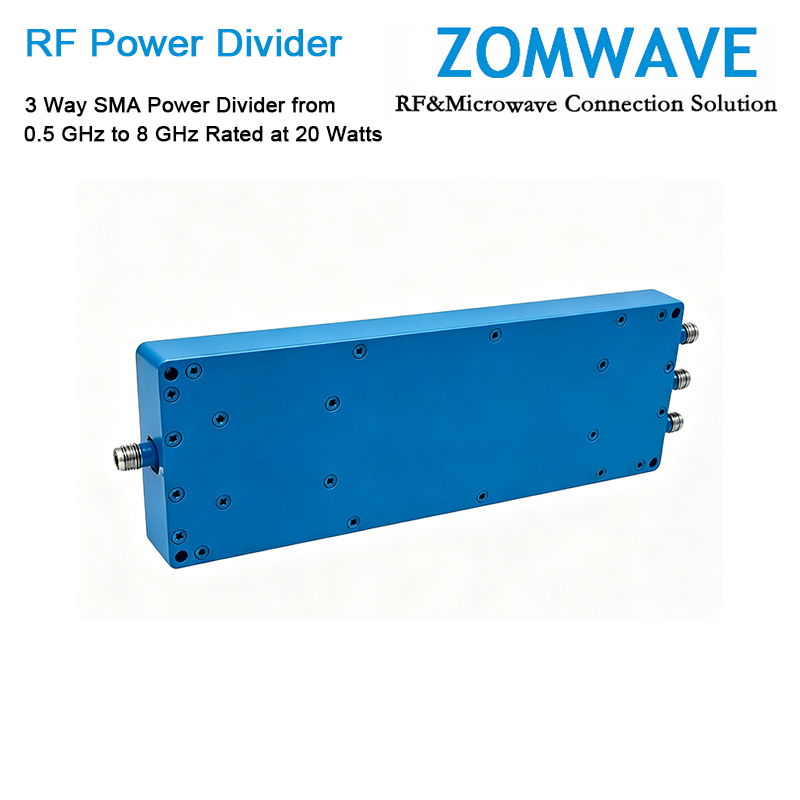

The ZOMWAVE PD03W-MAJ-0500-008G-01 3-way SMA power divider (also known as an SMA coaxial power splitter) is rated for a minimum frequency of 0.5 GHz and a maximum frequency of 8 GHz. This 3-port SMA power divider / coaxial splitter from ZOMWAVE has a 50 Ohm impedance and a maximum input power of 20 Watts. It features one female SMA input port and two female SMA output ports.

This 3-way SMA RF power divider from ZOMWAVE is a reactive design. It has a maximum insertion loss of 2.2 dB, a minimum isolation of 17 dB, and a maximum input VSWR of 1.5:1. This 3-port SMA power divider is one of the many RF, microwave and millimeter wave components supplied by ZOMWAVE. This reactive 3-way SMA female coaxial RF power divider / splitter is available for purchase and can be shipped from stock.

Quantity Price Discount
1-9 $496.00 0%
10-49 $476.16 4%
50-99 $456.32 8%
100+ $426.56 14%

   200+                                     Call US

   Get a lower discount price

SKU: PD03W-MAJ-0500-008G-01
Configuration
Number of Output Ports3 Port
Connector SeriesSMA
Connector GenderFemale
Electric Specifications
Frequency Range 500 ~ 8000MHz
Impedance50ohm
Insertion Loss26 dB
Input Port VSWR≤1.26
Output Port VSWR≤1.19
Isolation Value26dB
Amplitude Balance≤ 1.0 dB
Phase Balance±10°
Power Rating20W (Power Dividing), 2W (Power Combining)
Mechanical Characteristics
Length6.30 in [160 mm]
Width2.05 in [52 mm]
Height0.47 in [12 mm]
Weight255 (g)
Environmental Characteristics (RoHS Complliant)
Temperature Rating-45to +85 deg C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
