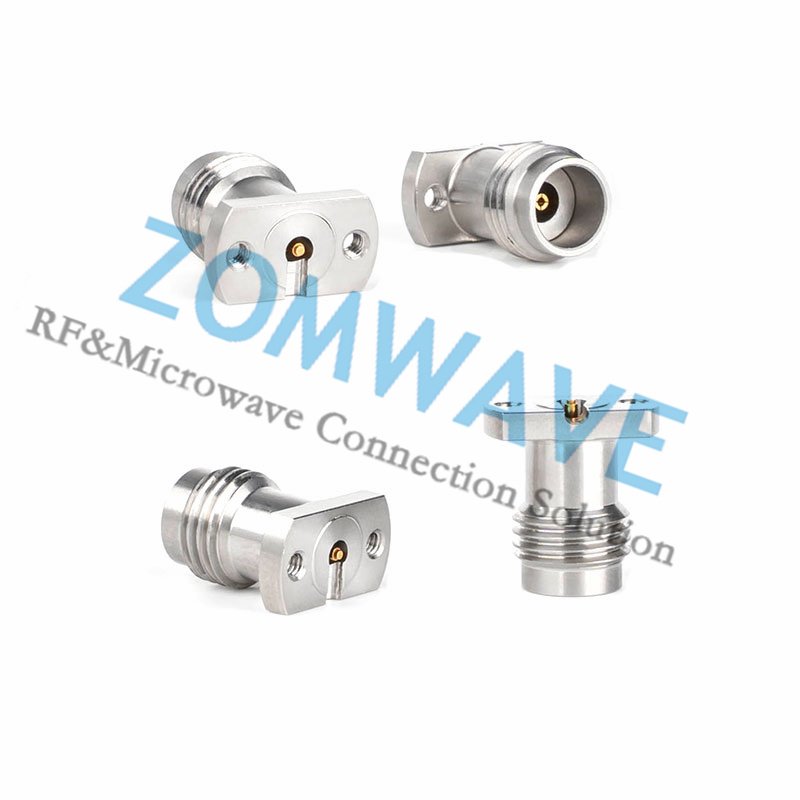

2.4mm(F)Solderless Compression Mount (Microstrip),2 hole Flange with .282 inch

$33.33

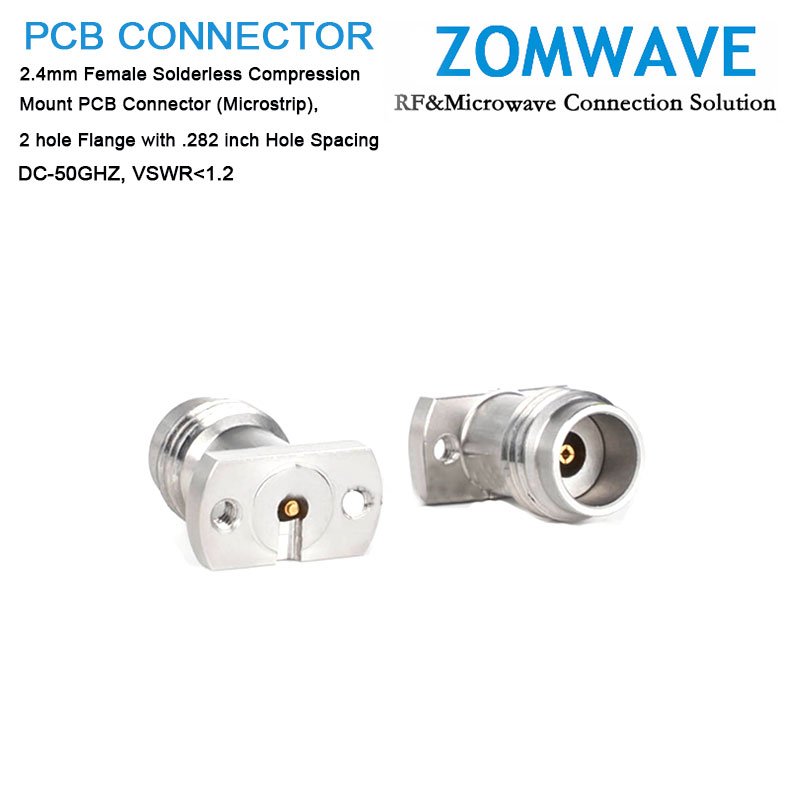

ZOMWAVE 2.4mm Female Solderless Compression Mount PCB Connector Microstrip two hole Flange with .282 inch Hole Spacing delivers precision vertical launch performance for demanding microwave designs and test systems. This 2.4mm rf connectors family member features a 50 ohm impedance, PEI dielectric, stainless steel body and beryllium copper center contact to provide DC to 50GHz bandwidth with a typical VSWR near 1.2, low insertion loss and more than 500 mating cycles for repeatable measurements. The solderless compression mount and two hole flange simplify PCB assembly and eliminate time consuming rework, while rugged construction and MIL standard environmental ratings minimize field failures and reduce system downtime. RoHS and REACH compliance plus thousands of in stock RF parts support fast procurement and shorter project lead times. Compatible only with the 2.4mm coaxial connector interface, this connector helps engineers consolidate inventory across high frequency product lines and speeds up RF test setups for better throughput and lower total cost of ownership.
Quantity Price Discount
1-9 $33.33 0%
10-49 $32.00 4%
50-99 $30.66 8%
100+ $28.00 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:P2JS-FLTT-PTLK-003

Key specifications

Configuration
Connector Series 2.4 mm
Connector Gender Female
Connector AngleStraight
Connector Mount Method2-Hole Flange
Attachment MethodClamp
Interface TypeVertical Launch
Material
Centre ContactBeryllium Copper/Gold Plated
BodyStainless Steel
InsulatorsPEI&PTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)50GHZ
VSWR≤1.25:1 (DC 0~50GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-40°C ~ +165°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

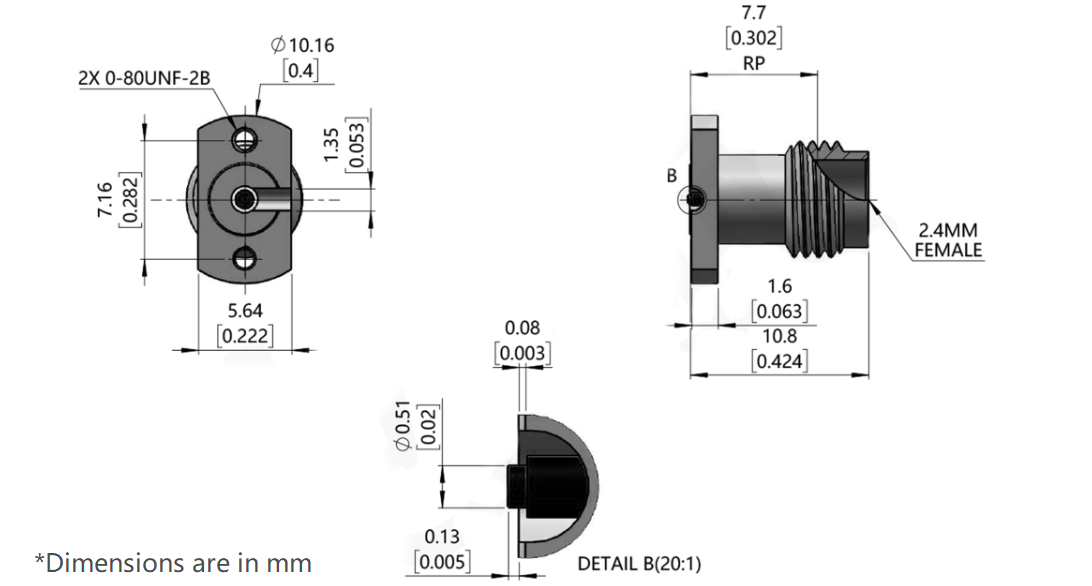

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
