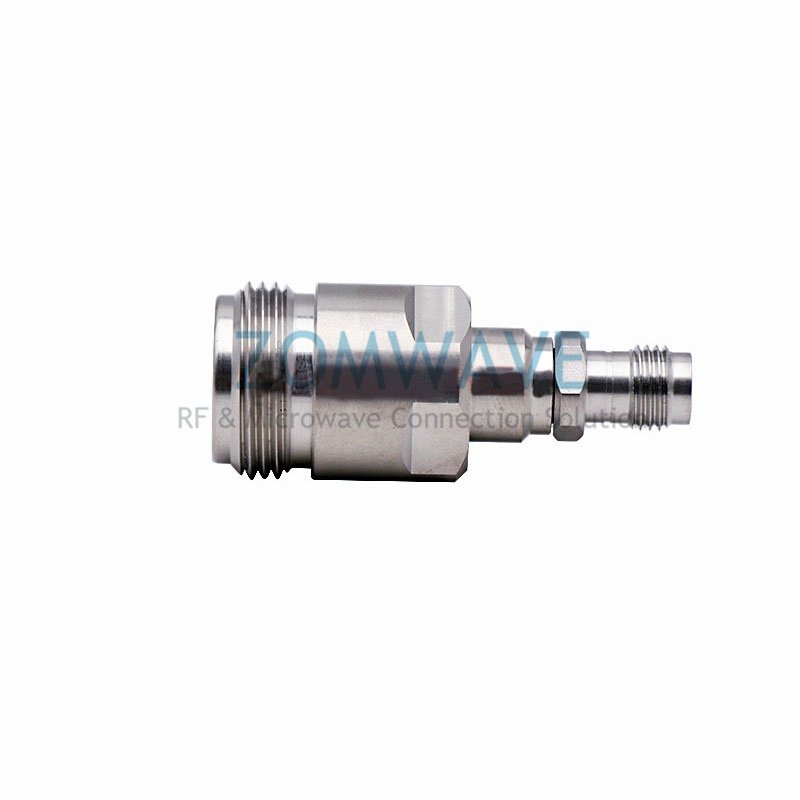

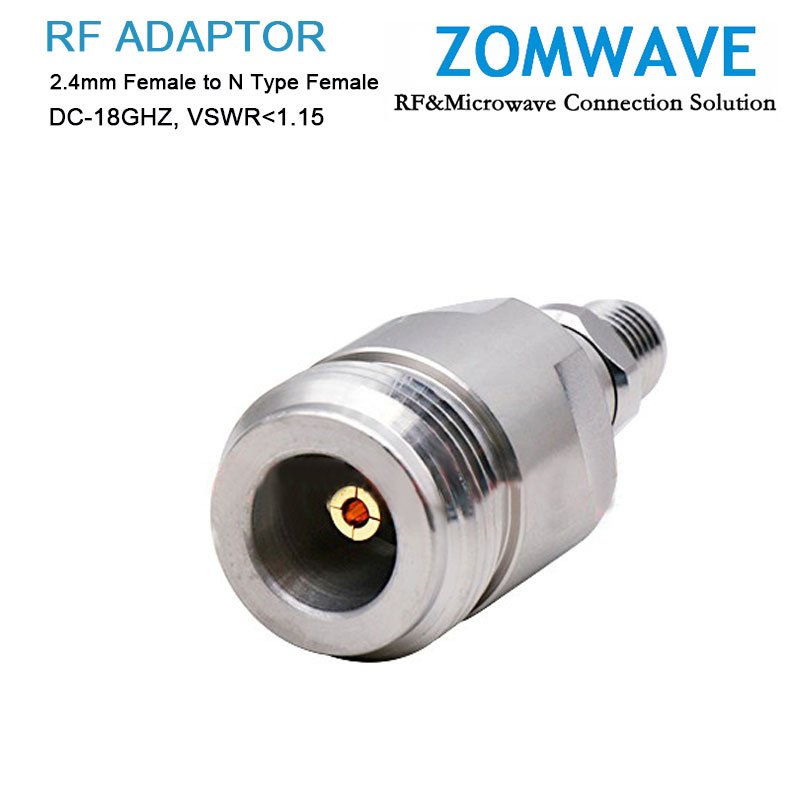

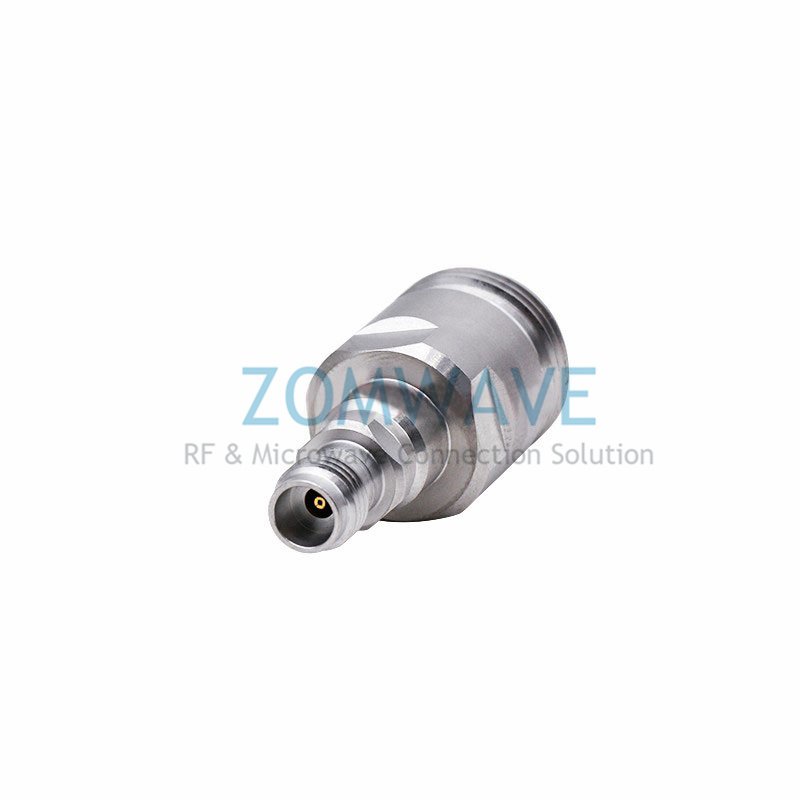

2.4mm Female to N Type Female Stainless Steel Adapter, 18GHz

Click to enlarge

2.4mm Female to N Type Female Stainless Steel Adapter, 18GHz

$33.33

The 2.4mm female to type N female adapter provides reliable interconnection of coaxial components and sub-systems, ideal for procurement-ready assemblies. This 50 ohm straight-body Stainless Steel Plated adapter delivers excellent VSWR ≤1.15 up to 18 GHz and very low insertion loss ≤0.05×sqrt(f_GHz), reducing signal reflection and test rework. Designed to meet MIL-STD environmental and mechanical requirements, with RoHS compliance, a temperature rating of -55°C to +165°C, and 500+ mating cycles, ZOMWAVE lowers downtime and lifecycle costs while simplifying inventory. Standard products ship within 5 days, which supports fast procurement and keeps production lines moving. It complements 2.4mm to n adapters and is offered as an n-type female to female adapter for flexible system integration.

Quantity	Price	Discount
1-9	$33.33	0%
10-49	$32.00	4%
50-99	$30.66	8%
100+	$28.00	16%

200+ Call US

Get a lower discount price

SKU: P/N:NCJ-P2J-SNM-01

Key Specifications

Configuration
Adapter Series 1	2.4mm
Adapter Gender 1	Female
Adapter Mount Method1	None
Body Materials and Plating 1	Stainless Steel with Passivated
Adapter Series 2	Type N
Adapter Gender 2	Female
Adapter Mount Method 2	None
Body Materials and Plating 2	Stainless Steel with Passivated
Adapter Angle	Straight
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	18GHz

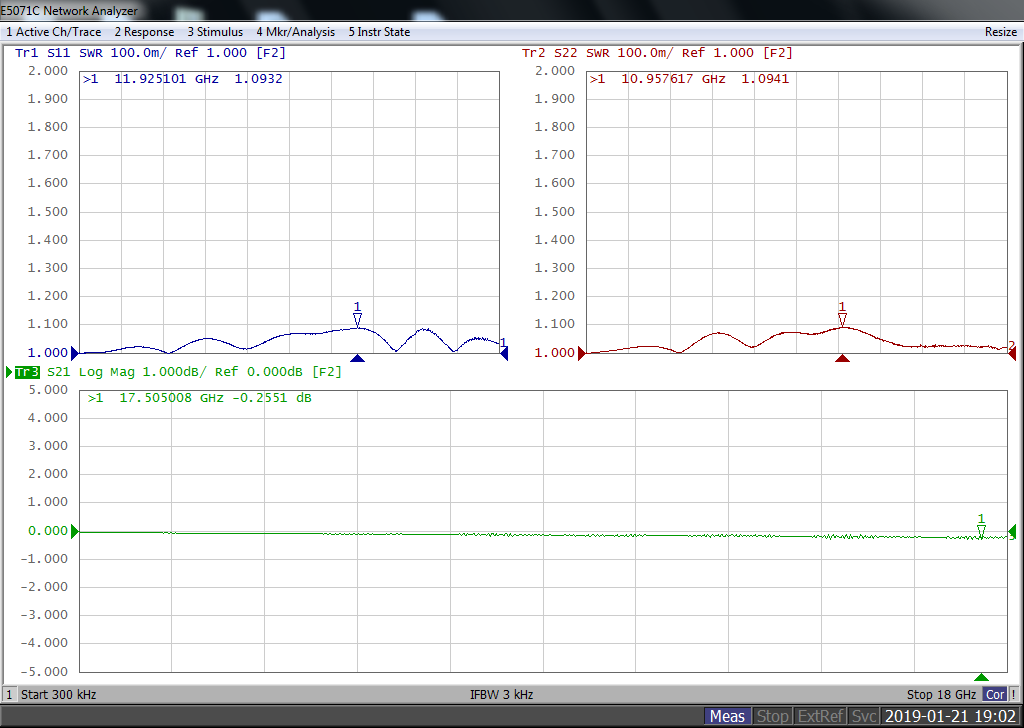

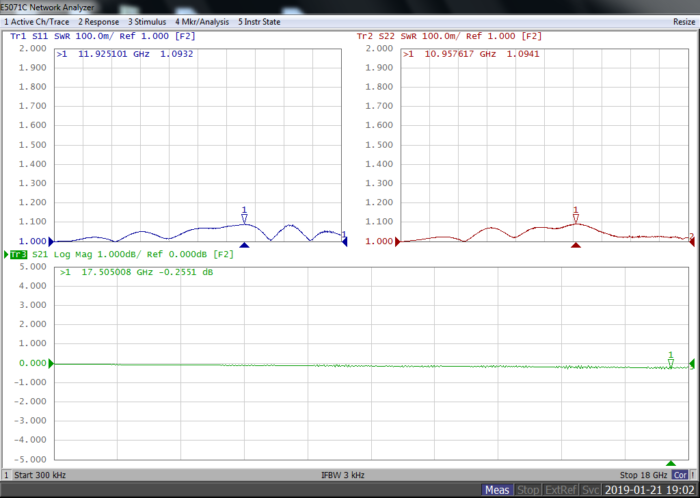

VSWR	≤1.15:1 (DC 0~18GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-55°C ~ +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

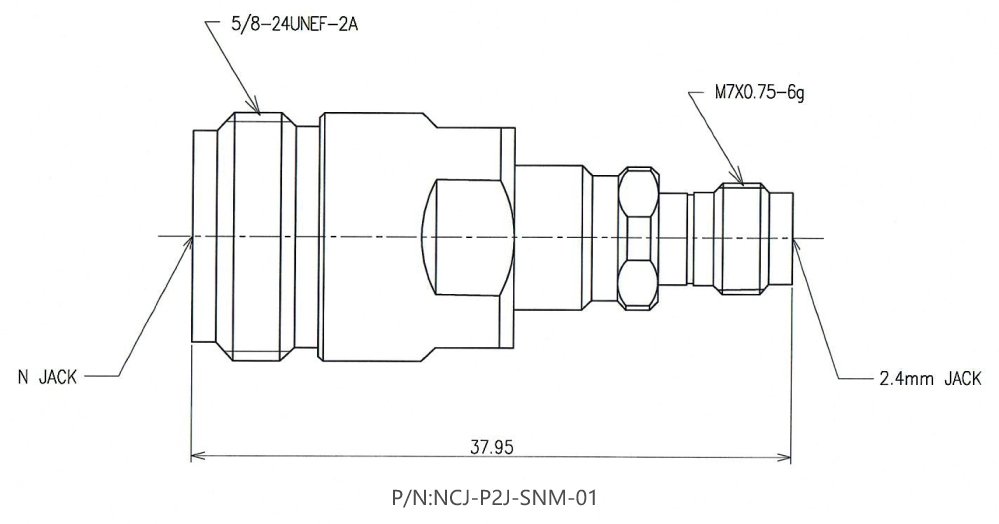

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
