IPEX 90575-0001 MHF1 Receptacle High Cycle N54 C RF Test Probe, 9GHz

$30.13

The IPEX 90575-0001 MHF1 Receptacle High Cycle N45 C RF Test Probe, 9GHz is perfect for interconnection of coaxial components or sub-systems connection. This 50 ohm rf test probe has a straight body. Our IPEX 90575-0001 MHF1 Receptacle High Cycle N45 C RF Test Probe, 9GHz is Brass Nickel Plated that is cost-effective for use. ZOMWAVE RF Test Probe has excellent VSWR performance with frequency up to 9GHz



Quantity Price Discount
1-9 $30.13 0%
10-49 $28.92 4%
50-99 $27.72 8%
100+ $25.31 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:PB-HCJ-U1P-SFL-01
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1N54 C
Adapter Gender 1Jack
Adapter Angle 1Straight
Adapter Mount Method 12 Hole Flange
Body Materials and Plating 1Brass Nickel Plated
Adapter Series 2MHF1
Adapter Gender 2Plug
Adapter Angle 2Straight
Adapter Mount Method 2None
Body Materials and Plating 2Brass Nickel Plated
Electric Specifications
Impedance50ohm
Frequency Range(From DC)9GHz
VSWR≤1.3:1 (DC 0~3GHz)
≤1.5:1 (DC 3~6GHz)
≤2:1 (DC 6~9GHz)
Insertion Loss≤0.6dB(dc 0~3GHZ)
≤0.8dB(dc 3~6GHZ)
≤1.0dB(dc 6~9GHZ)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage>500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles N54 C≥ 200 cycles
Probe Durability ≥ 10000 cycles
Mating Torque 5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

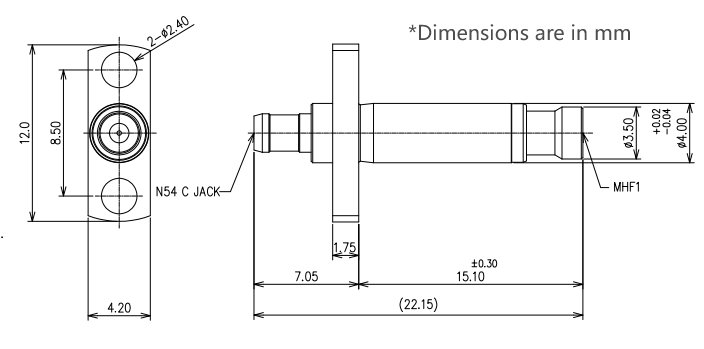

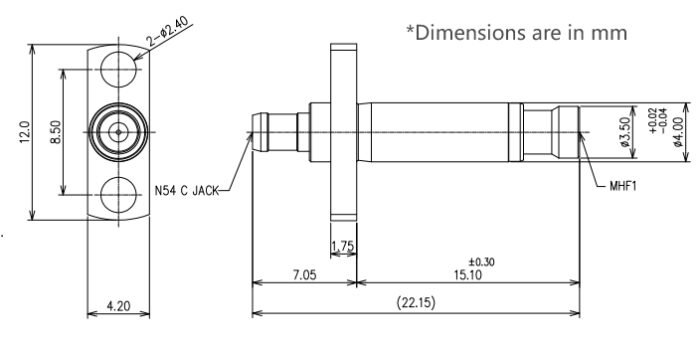

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
