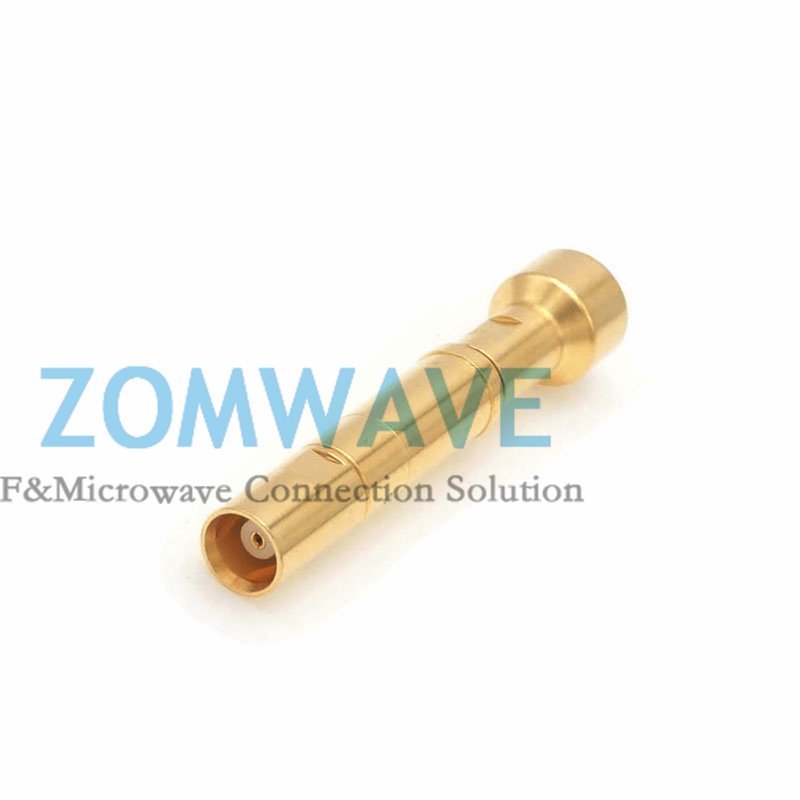

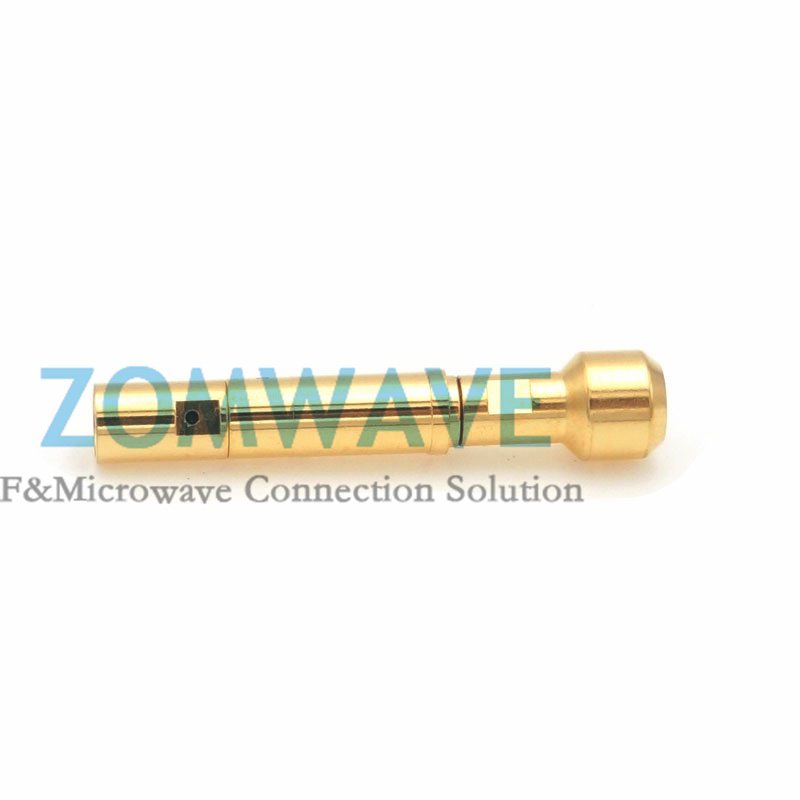

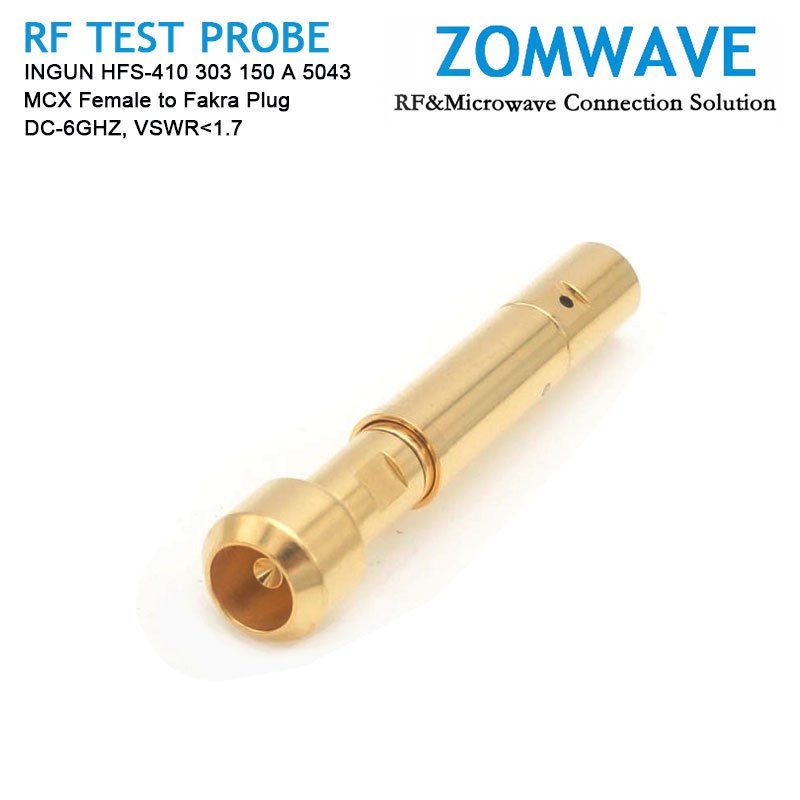

INGUN HFS-410 303 150 A 5043, MCX Female to Fakra Plug RF Test Probe, 6GHz

$58.33

The INGUN HFS-410 303 150 A 5043, MCX Female to Fakra Plug RF Test Probe 6GHZ is perfect for interconnection of coaxial components or sub-systems connection. This 50 ohm rf test probe has a straight body. Our INGUN HFS-410 303 150 A 5043, MCX Female to Fakra Plug RF Test Probe 6GHz RF Test Probe is Copper Alloy, Gold Plated that is cost-effective for use. ZOMWAVE RF Test Probe has excellent VSWR performance with frequency up to 6GHz



Quantity Price Discount
1-9 $58.33 0%
10-49 $56.00 4%
50-99 $53.66 8%
100+ $49.00 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MBP-MXJ-SNM-02
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1MCX
Adapter Gender 1Female
Adapter Angle 1Straight
Adapter Mount Method1None
Body Materials and Plating 1Copper Alloy Gold Plated
Adapter Series 2Fakra
Adapter Gender 2Plug
Adapter Angle 2Straight
Adapter Mount Method 2None
Body Materials and Plating 2Copper Alloy Gold Plated
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWRTBD
Insertion LossTBD
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage>100 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating CyclesMCX side ≥ 500 cycles
Probe Durability≥ 20000 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +80°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
